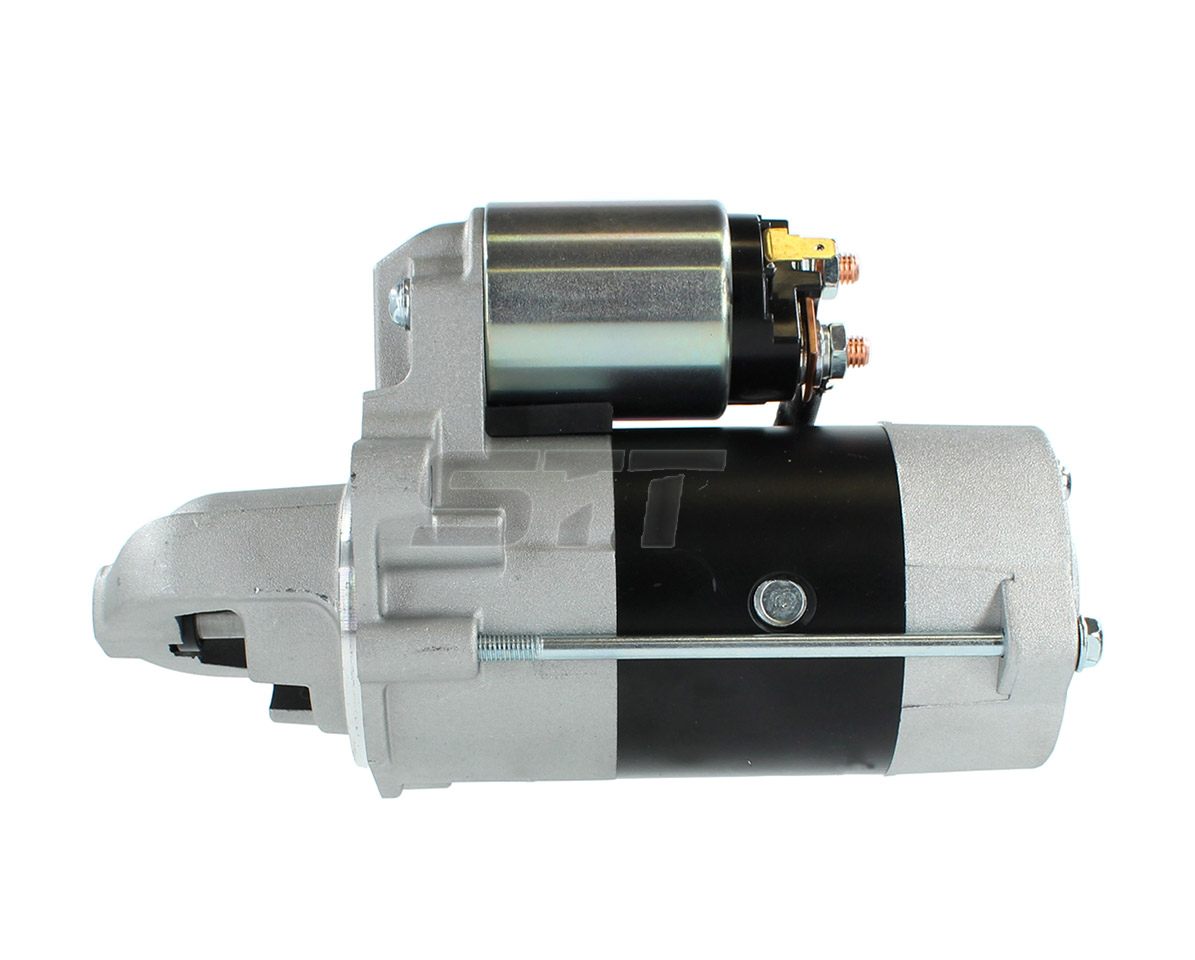

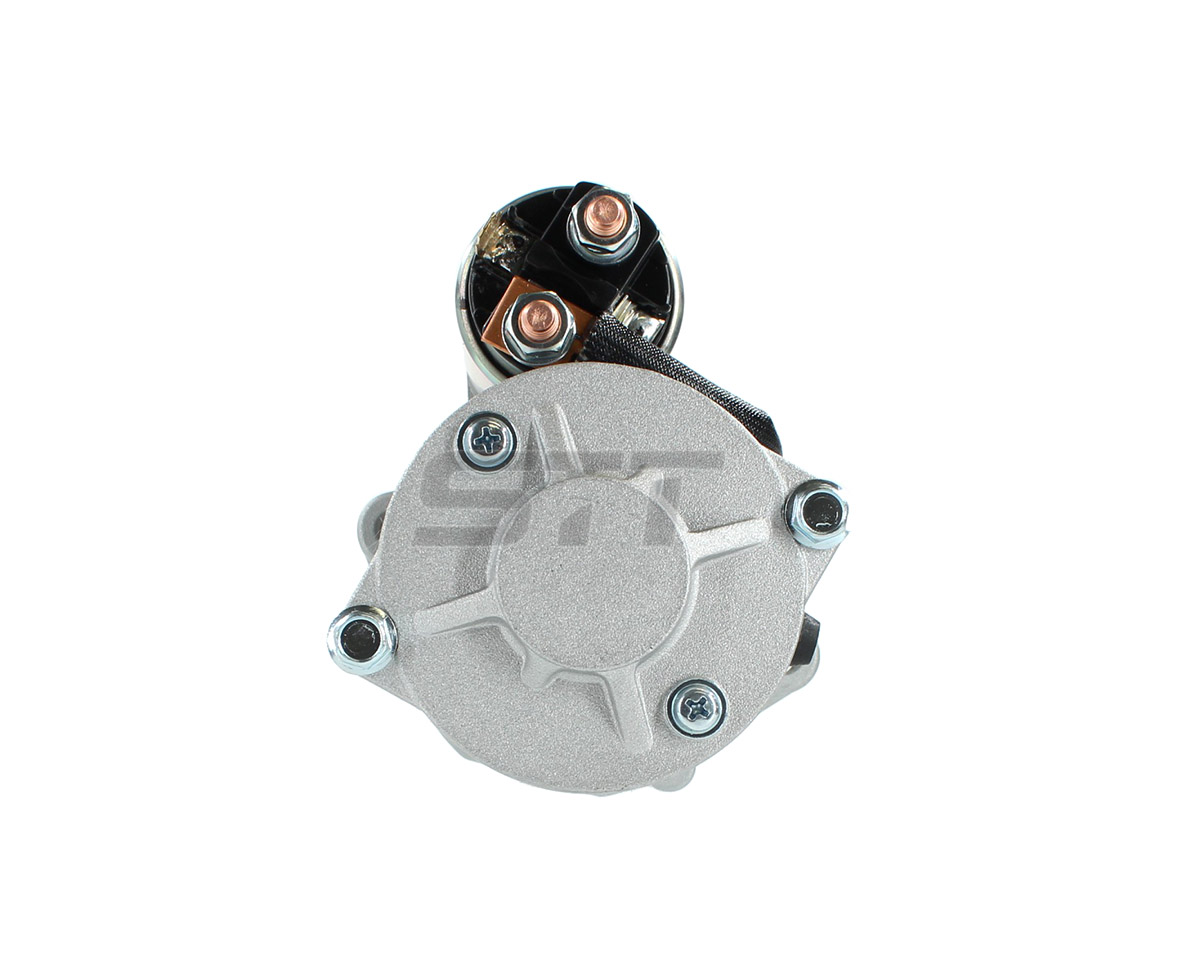

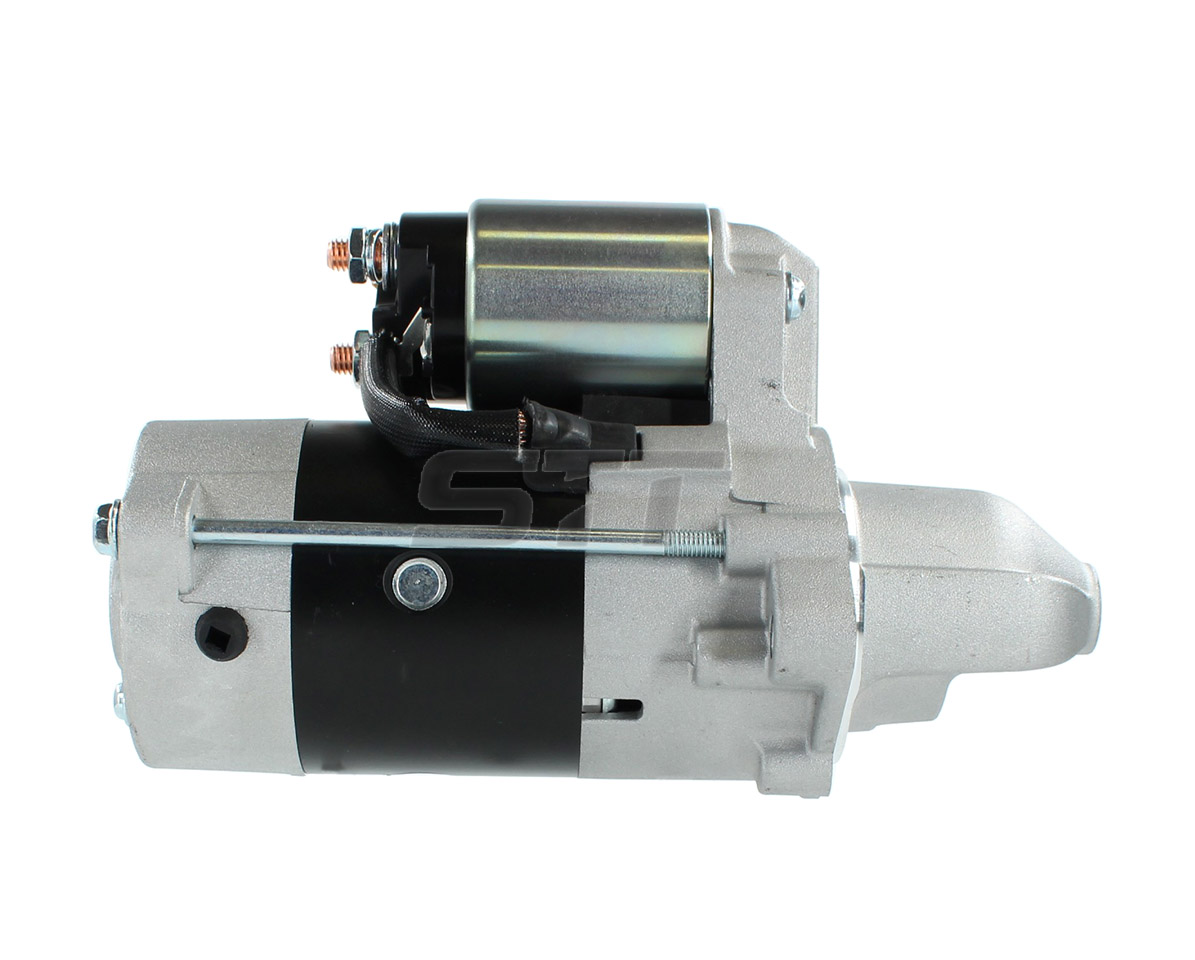

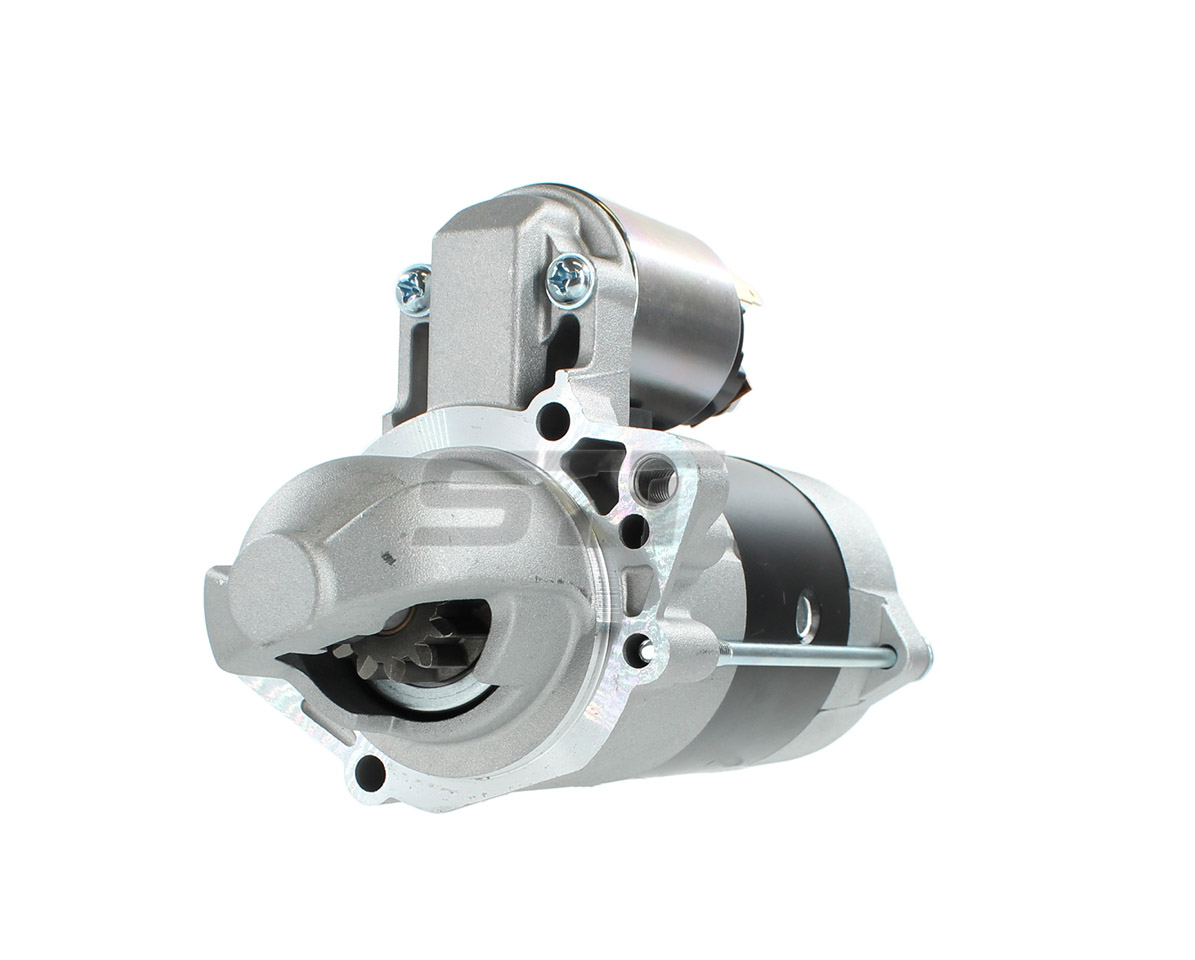

Starter for FIAT FULLBACK, MITSUBISHI L200 2.4 Diesel 2015--
117-317
12V 2.0KW 13T CW
Specification
| Volt | 12V |
| Power | 2.0KW |
| Teeth | 13T |
| Rotation | CW |
OE NO
| MITSUBISHI | M2T86871ZT |
Ref No
| MITSUBISHI | 1810A331 |
| LUCAS | LRS04190 |
Adapted models
| FIAT | Fullback 2.4D 4N15 w/AT 2016- |
| MITSUBISHI | L200 2.4D 4N15 w/AT 2015- |
Components
Mounting type
| Mount Hole Dia | M10, M10 |
| Flange Dia | 70mm |
| Mount Holes Cnt to Cnt | 104mm |
| Pinion Dia | 34mm |
| Out of Mesh Clearance | 28.2mm |
| Overall Length | 227mm |
| HSG Length | 162mm |
| Rest Position B | 117mm |
| S terminal size | |
| B+ terminal size | M8 |
| WEIGHT KG | 4.5Kg |
