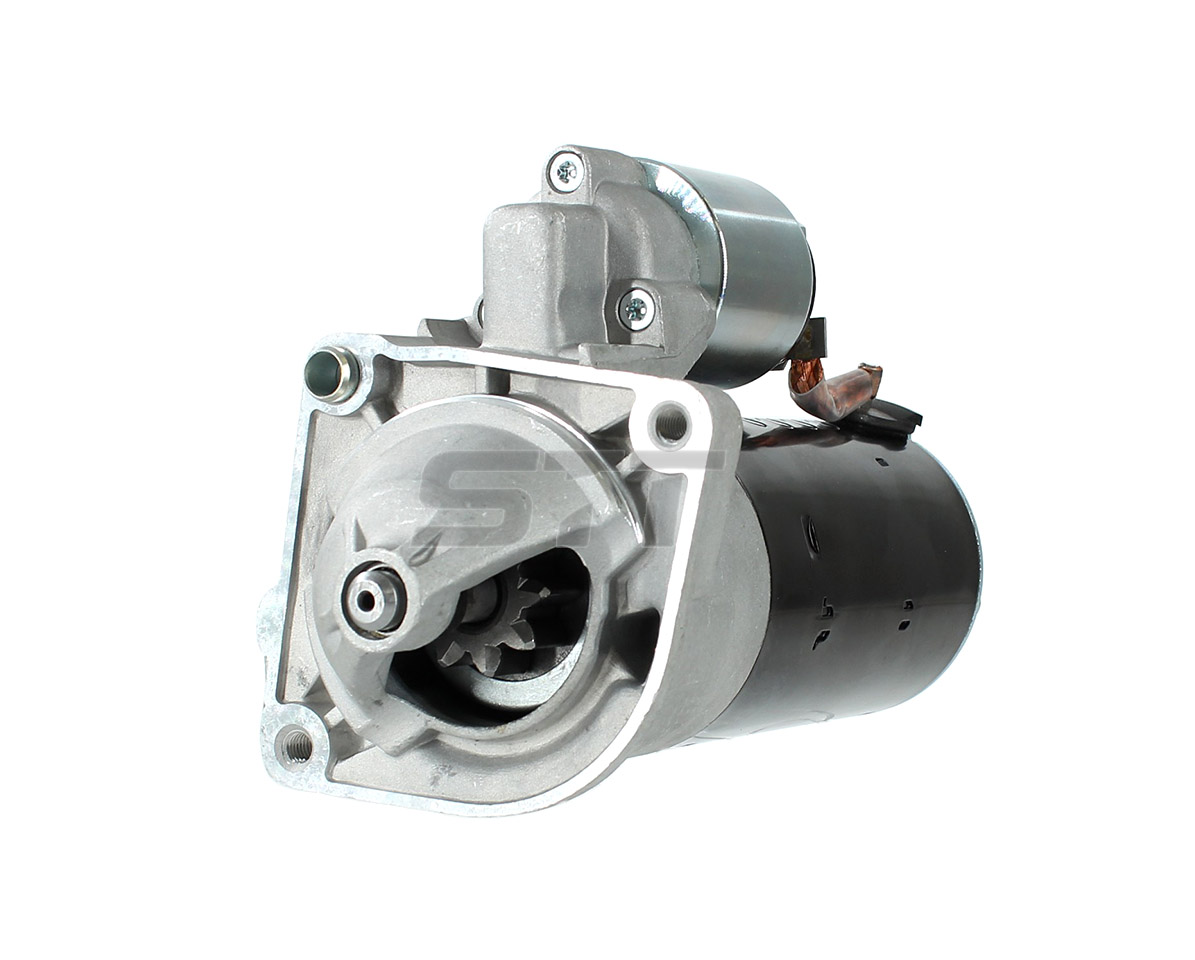

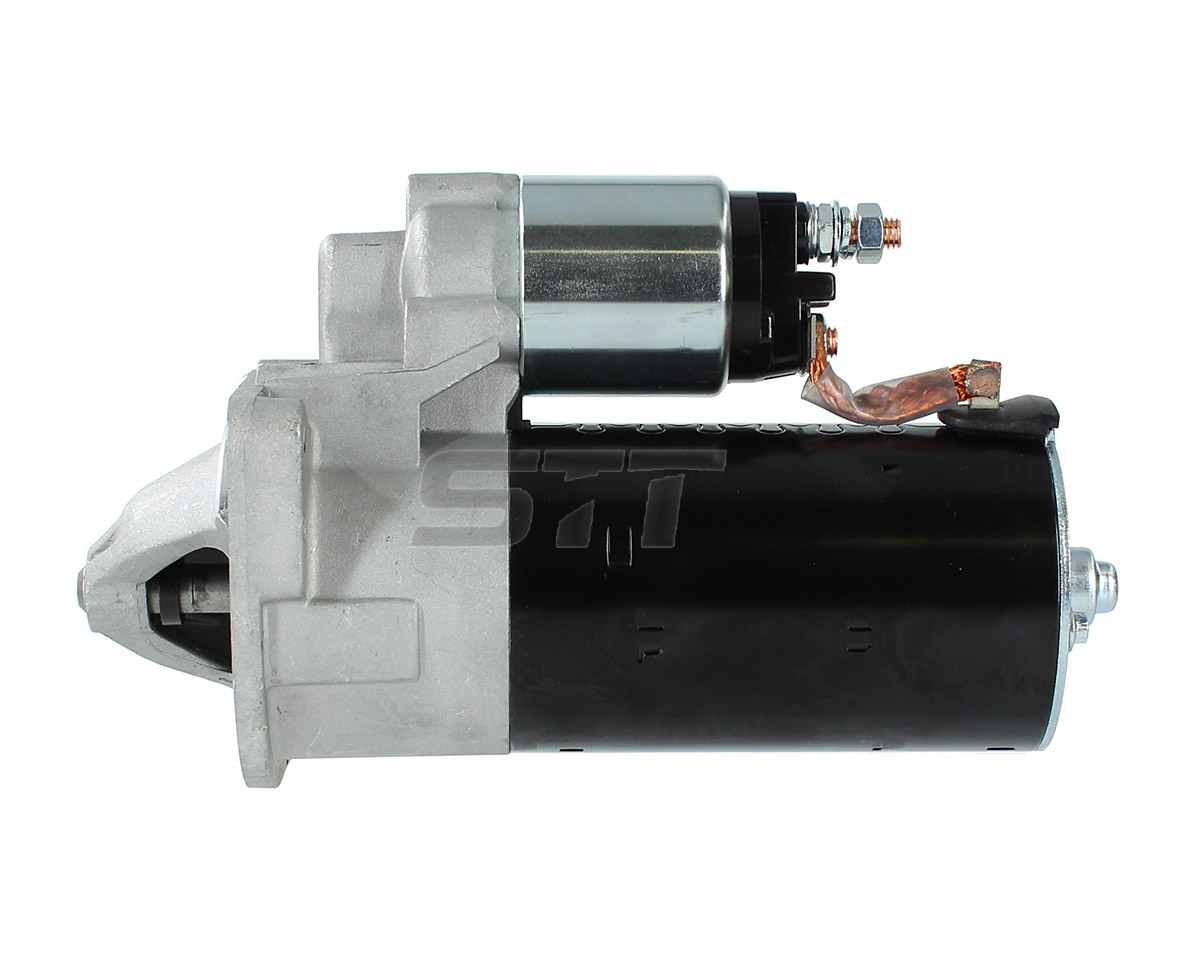

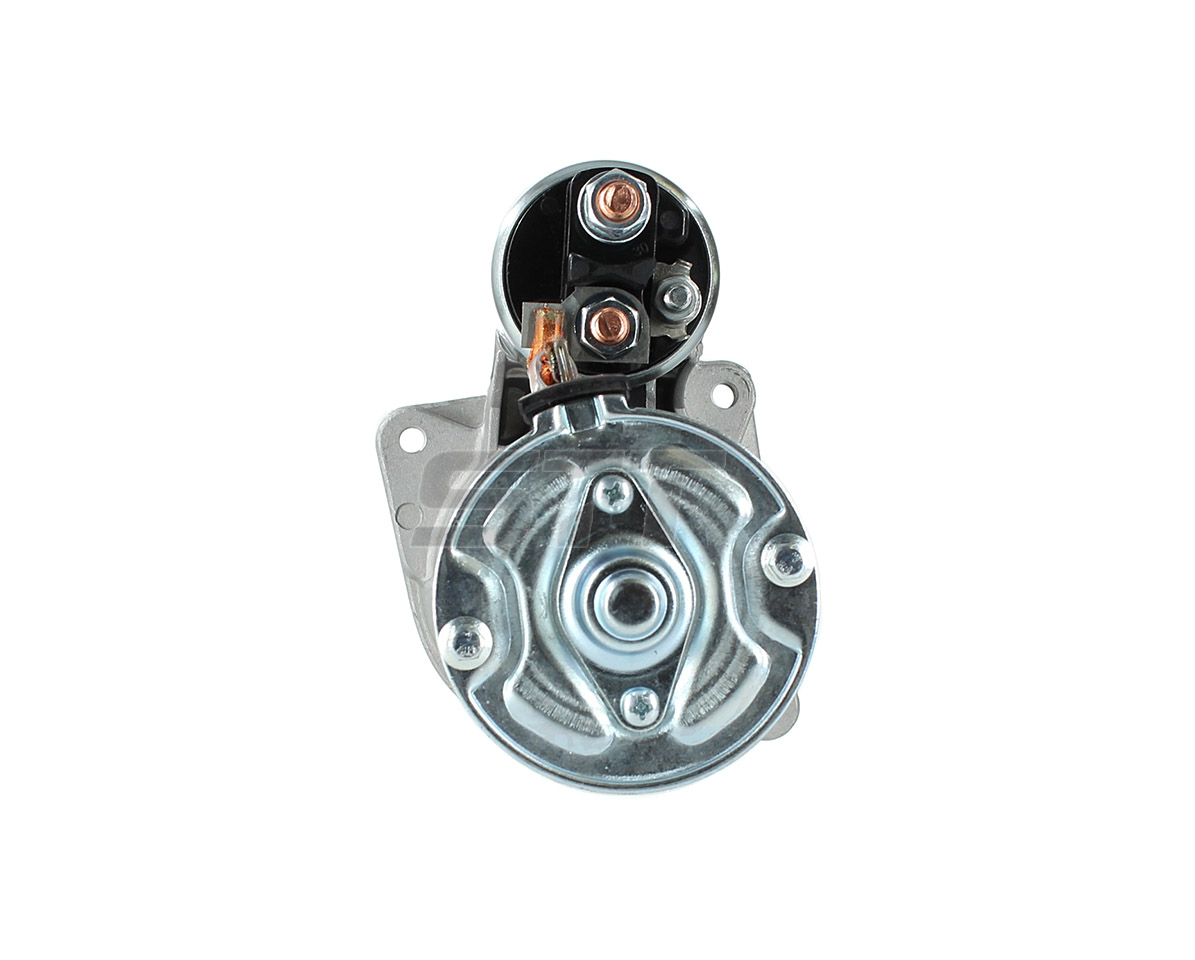

Starter for CITROEN JUMPER, FIAT DUCATO, PEUGEOT BOXER 2.3/2.8 Dieslel 2001--
111-004
12V 2.5KW 9T CW
Specification
| Volt | 12V |
| Power | 2.5KW |
| Teeth | 9T |
| Rotation | CW |
OE NO
| BOSCH | 0001109301 |
Ref No
| FIAT | 1347058080 |
| PEUGEOT | 5802AQ |
| LESTER | 33223 |
Adapted models
| CITROEN | Jumper 2.8D 814043N 2004-06 |
| CITROEN | Relay 2.8D 814043S 2002-06 |
| FIAT | Ducato 2.3D F1AE0481C 2001- 06 |
| PEUGEOT | Boxer 2.8D 814043N 2004-06 |
Components
Mounting type
| Mount Hole Dia | M8,M8,M8 |
| Flange Dia | 82mm |
| Mount Holes Cnt to Cnt | 117mm |
| Pinion Dia | 35.1mm |
| Out of Mesh Clearance | 1mm |
| Overall Length | 246mm |
| HSG Length | 205mm |
| Rest Position B | 155mm |
| S terminal size | M6 |
| B+ terminal size | M8 |
| WEIGHT KG | 4Kg |
