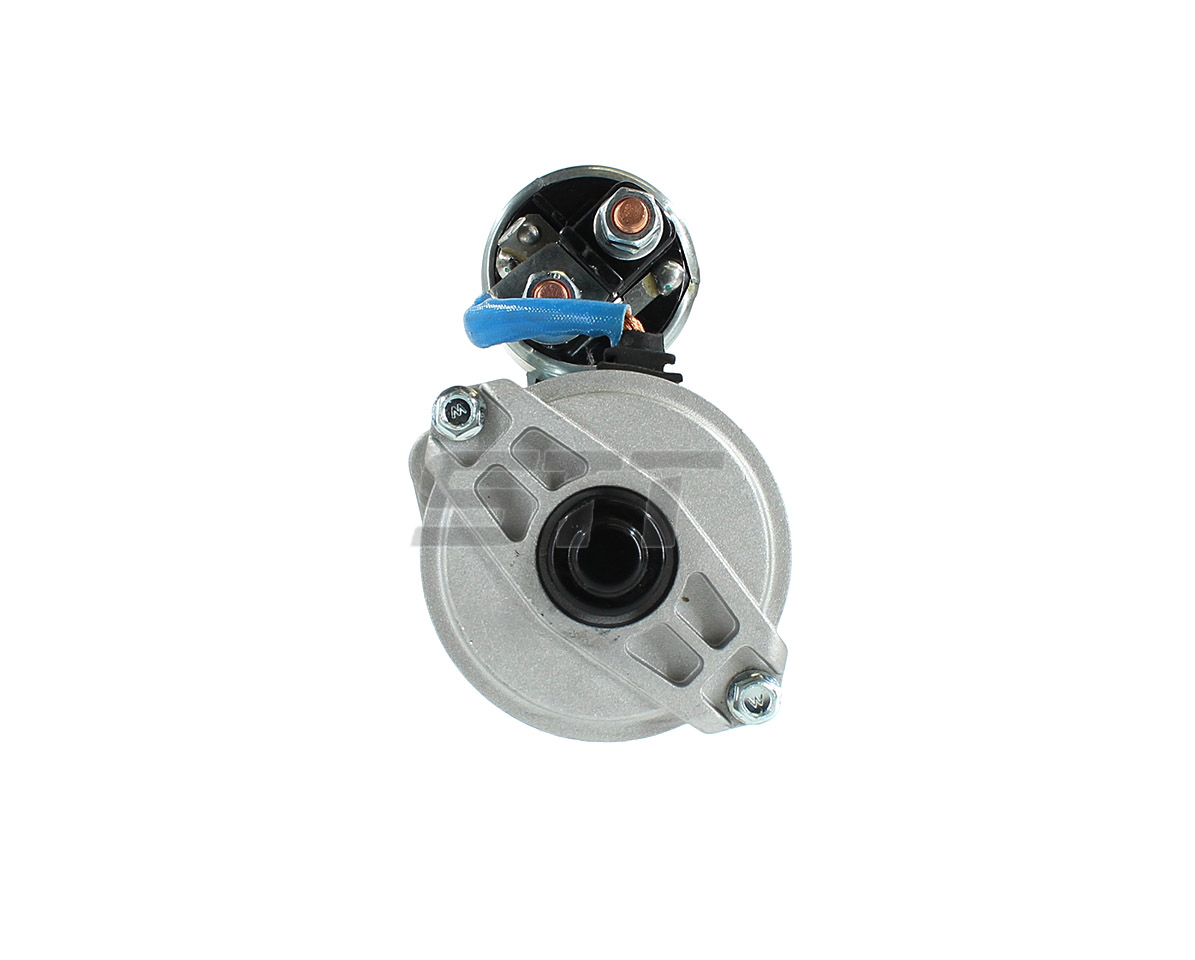

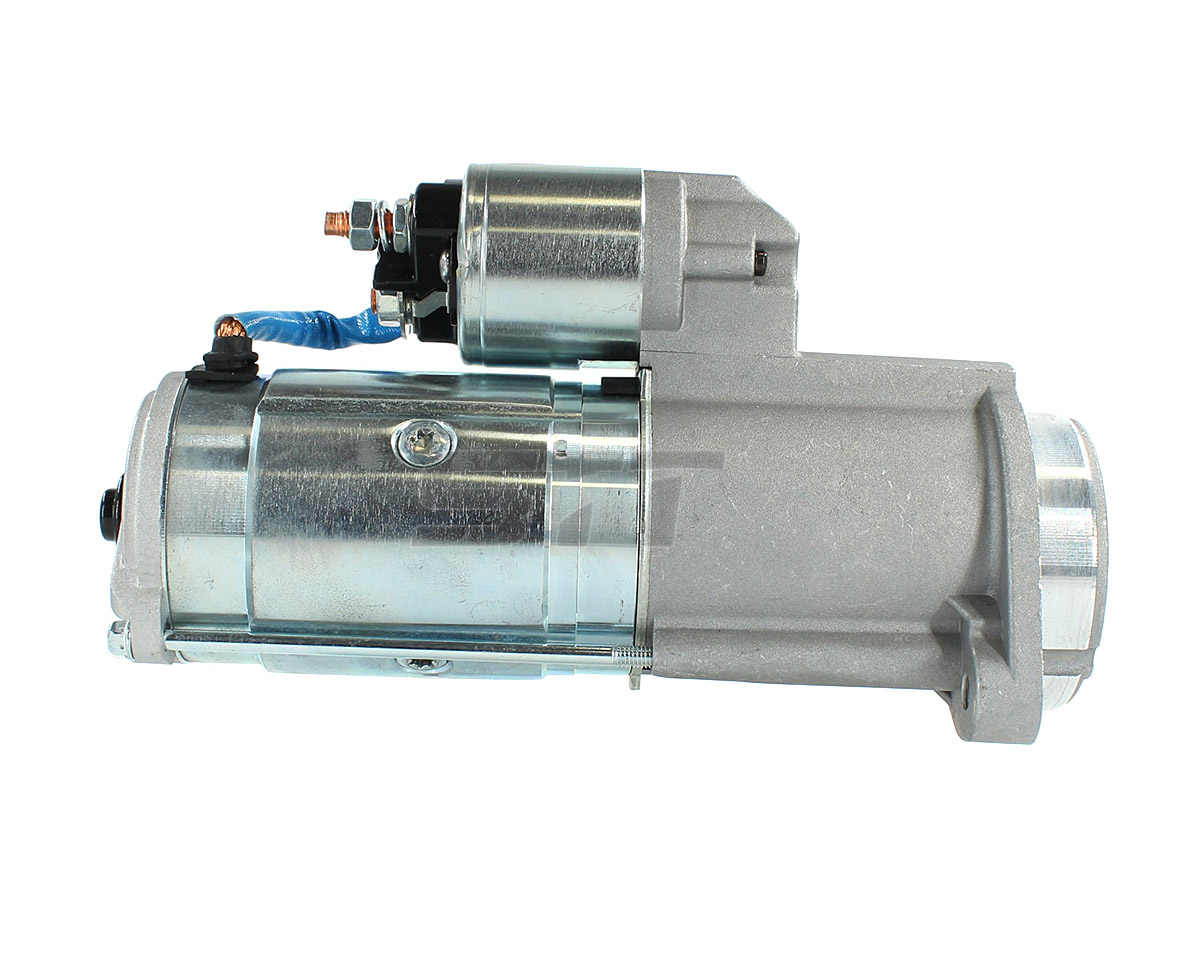

Starter for HYUNDAI H1, SATELLITE, KIA SORENTO 2.5D 2001-13
116-002
12V 2.2KW 10T CW
Specification
| Volt | 12V |
| Power | 2.2KW |
| Teeth | 10T |
| Rotation | CW |
OE NO
| VALEO | TM000A23601 |
Ref No
| HYUNDAI | 36100-4A000 |
| LESTER | 32712 |
| LUCAS | LRS01712 |
Adapted models
| HYUNDAI | H1 2.5D D4CB 2001-07 |
| HYUNDAI | Satellite 2.5D D4CB 2002-07 |
| KIA | Sorento 2.5D D4CB 2002-11 |
Components
Mounting type
| Mount Hole Dia | M10, M10 |
| Flange Dia | 78.5mm |
| Mount Holes Cnt to Cnt | 104.5mm |
| Pinion Dia | 33mm |
| Out of Mesh Clearance | 18.6mm |
| Overall Length | 258.5mm |
| HSG Length | 235mm |
| Rest Position B | 176mm |
| S terminal size | |
| B+ terminal size | M8 |
| WEIGHT KG | 4.7Kg |
