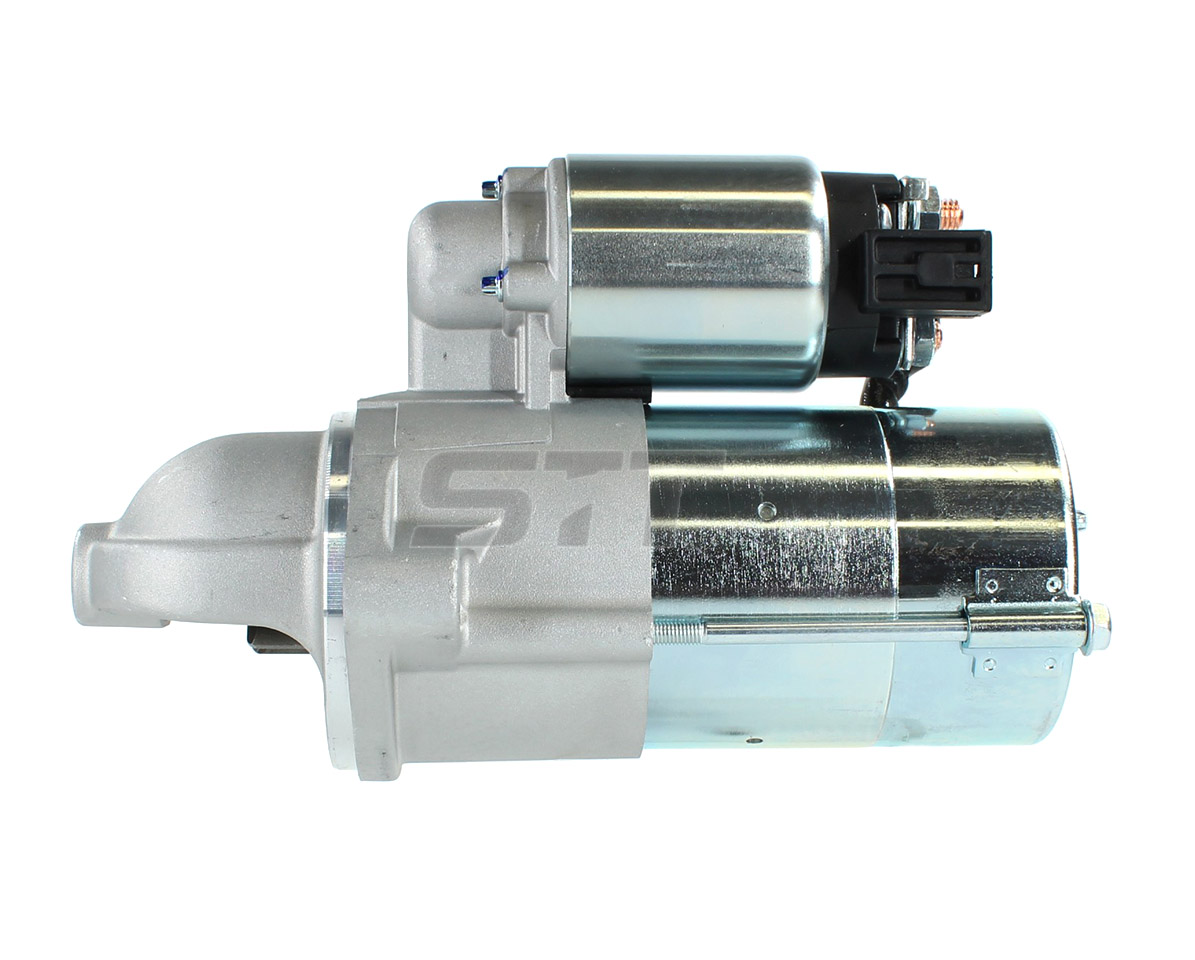

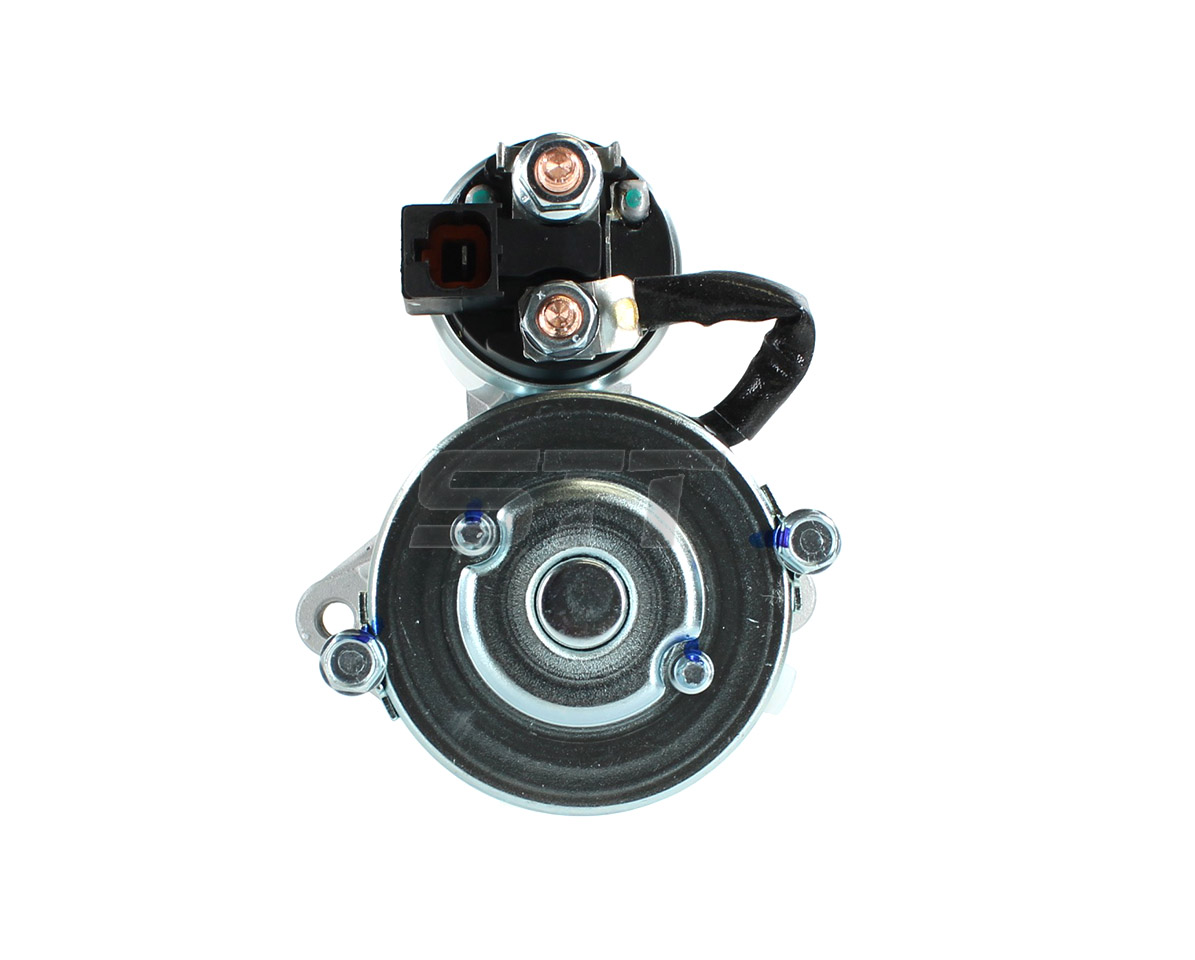

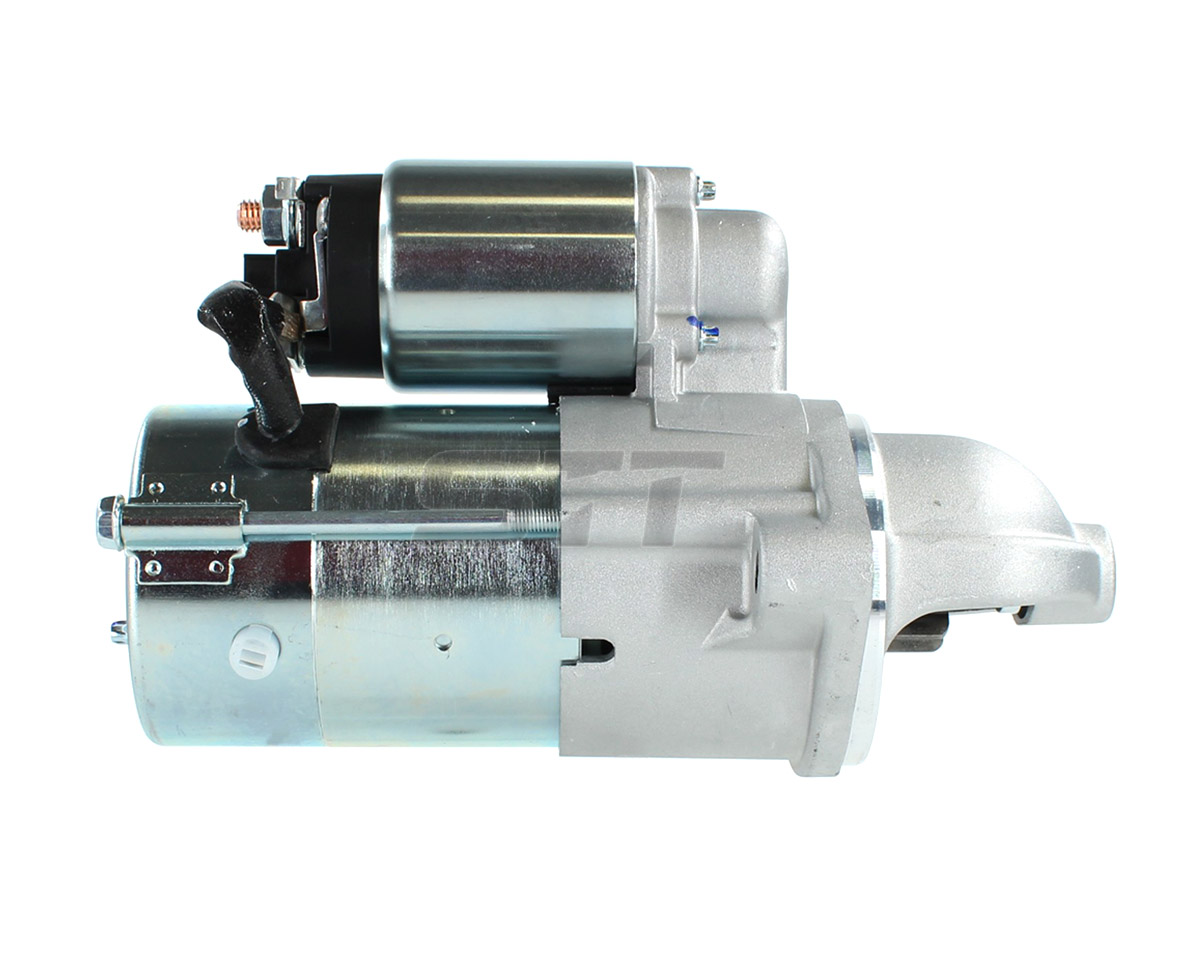

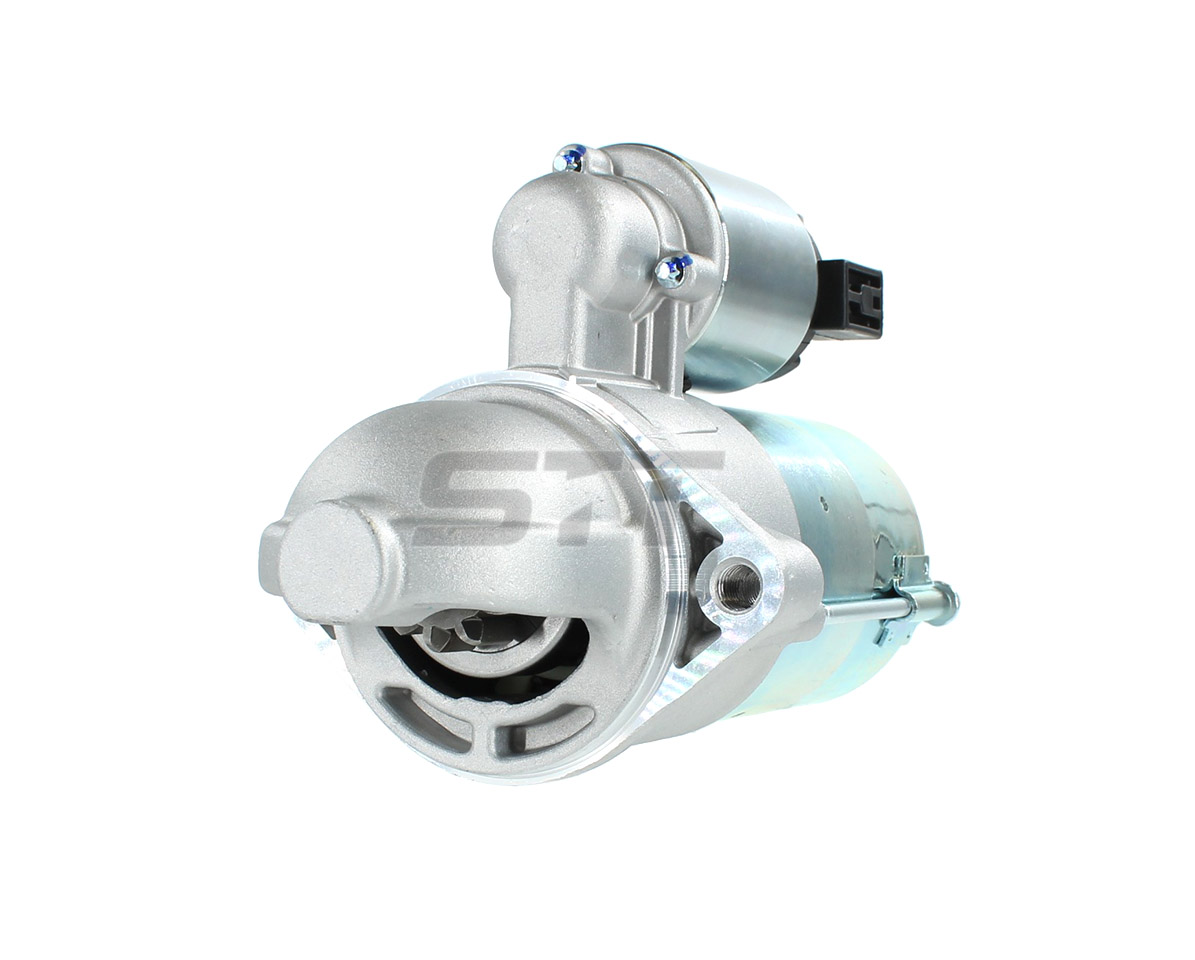

Starter for HYUNDAI ix35,SANTA FE,KIA SORENTO,SPORTAGE 2.0/2.2 Diesel 2009--13
105-1001
12V 2.0KW 11T CW
Specification
| Volt | 12V |
| Power | 2.0KW |
| Teeth | 11T |
| Rotation | CW |
OE NO
| DELCO | 8000269 |
Ref No
| HYUNDAI | 36100-2F000 |
| LESTER | 31271 |
| LUCAS | LRS02539 |
Adapted models
| HYUNDAI | Ix35 2.0D D4HA 2009-13 |
| HYUNDAI | Santa Fe 2.2D D4HB 2012-13 |
| KIA | Sorento 2.2D D4HB 2010--15 |
| KIA | Sportage 2.0D D4HA 2010-13 |
Components
Mounting type
| Mount Hole Dia | M10, M10 |
| Flange Dia | 80mm |
| Mount Holes Cnt to Cnt | 105mm |
| Pinion Dia | 34.3mm |
| Out of Mesh Clearance | 25mm |
| Overall Length | 222mm |
| HSG Length | 158mm |
| Rest Position B | 136mm |
| S terminal size | |
| B+ terminal size | M8 |
| WEIGHT KG | 3.6Kg |
