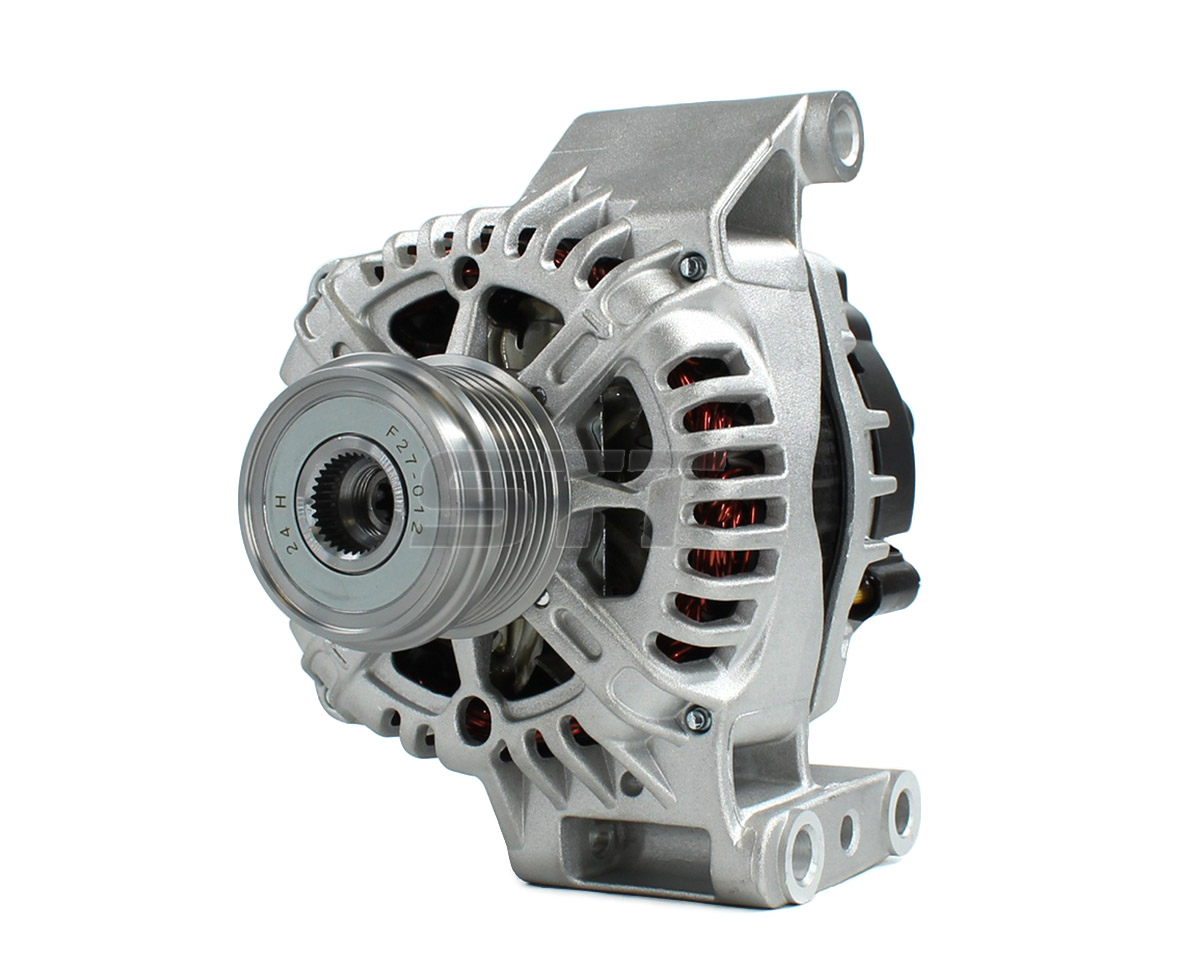

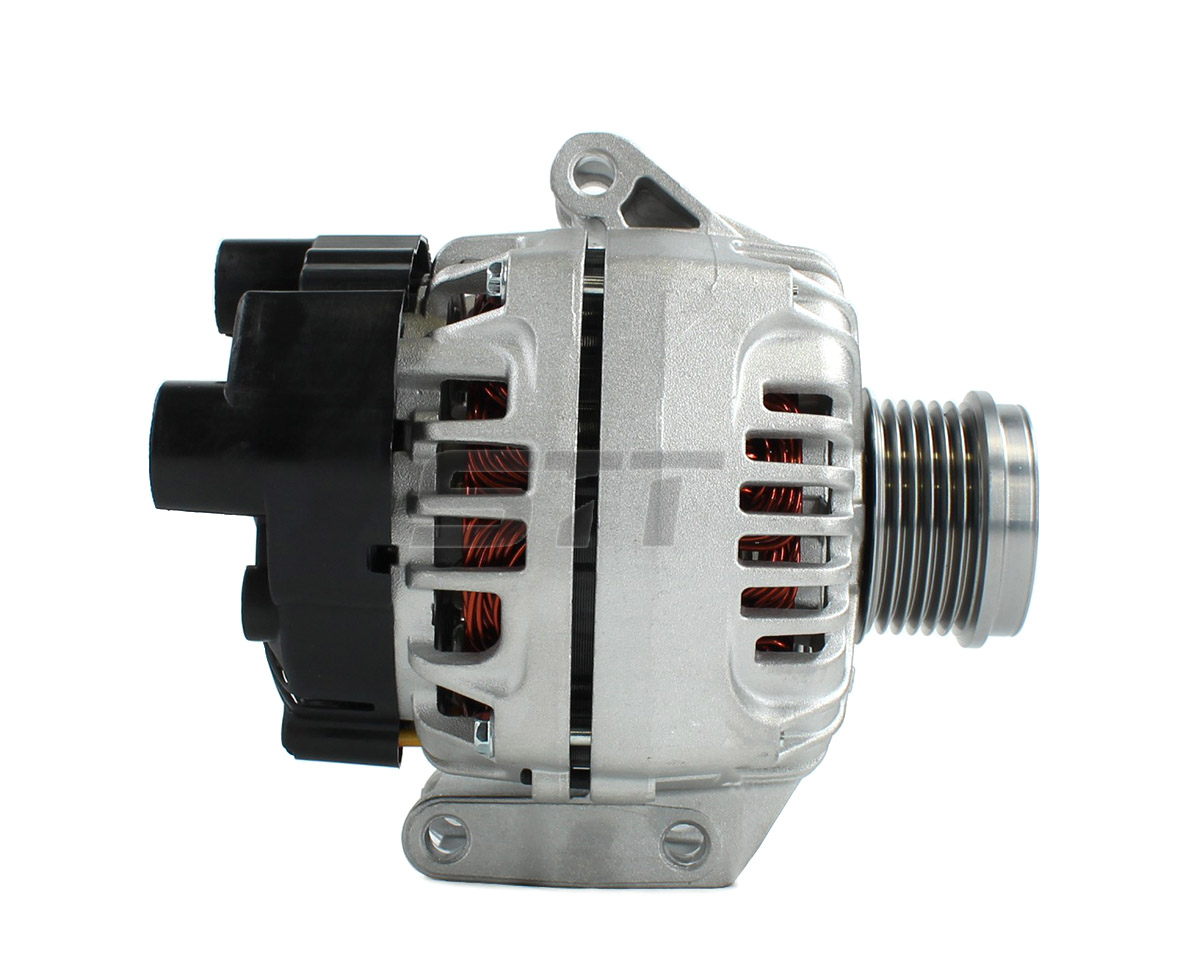

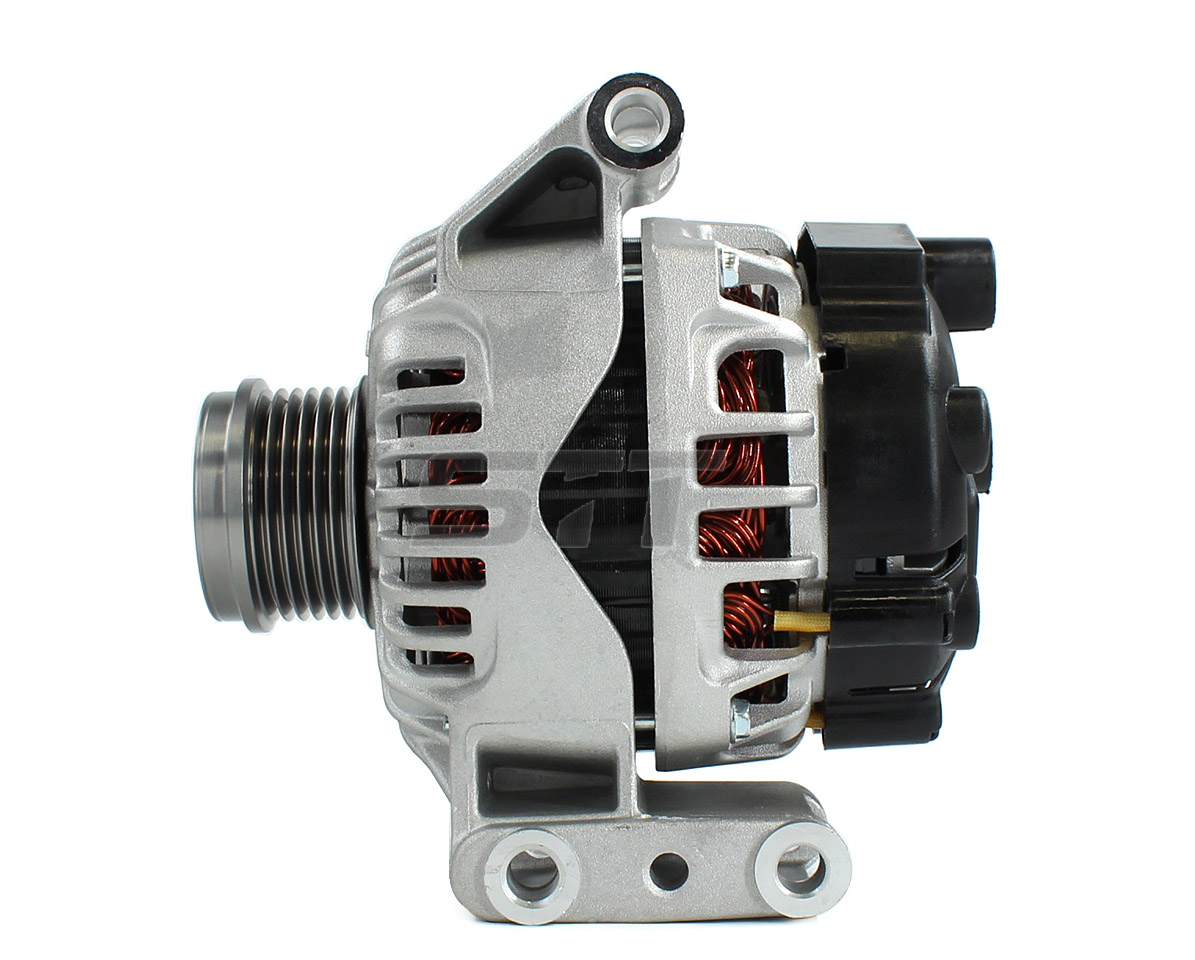

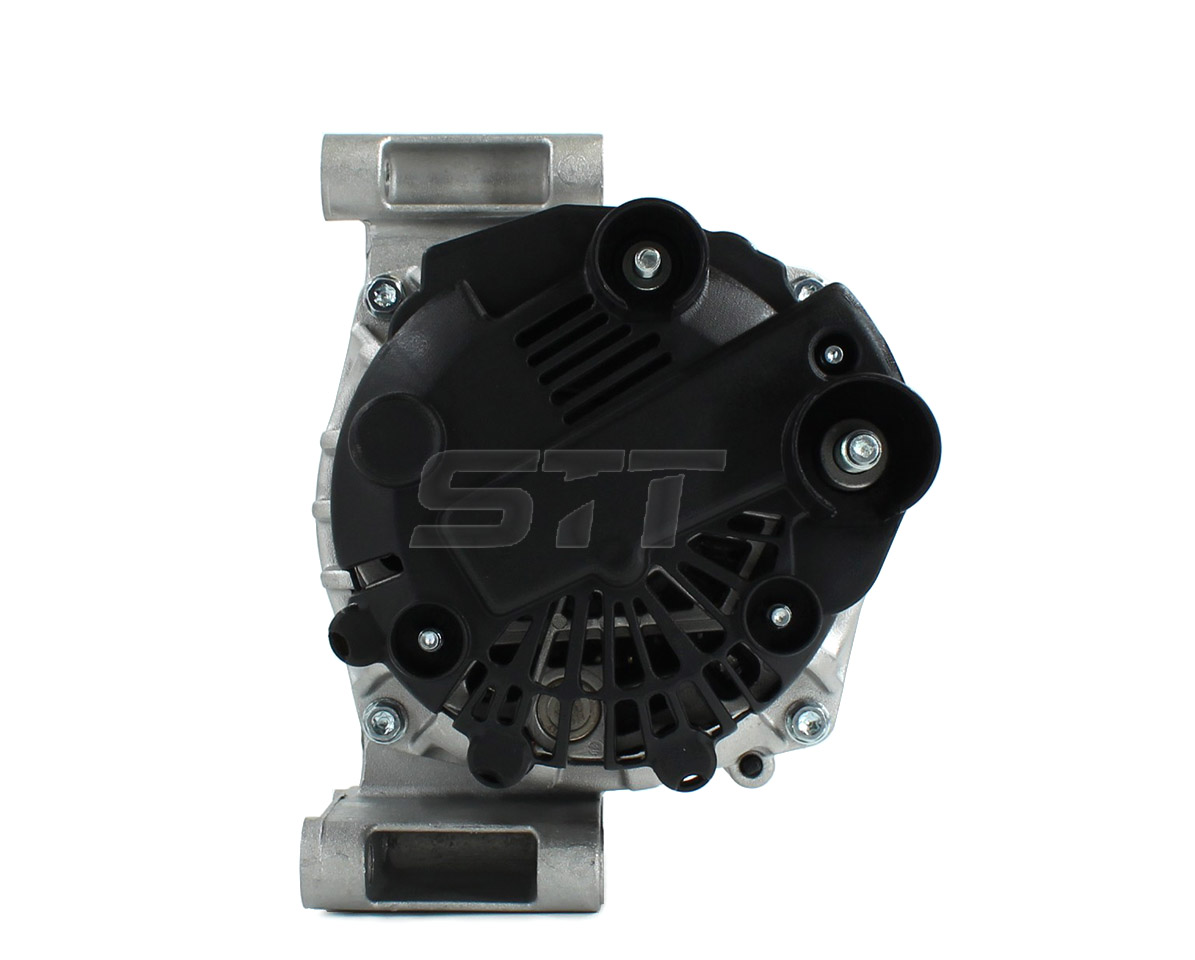

Alternator for FIAT PUNTO,OPEL AGILA,CORSA,SUZUKI SWIFT 1.3Diesle 2003-12
205-345
12V 90A 6PV
Specification
| Volt | 12V |
| Amp | 90A |
| Pulley | 6PV |
OE NO
| VALEO | TG9S015 |
Ref No
| FIAT | 55185076 |
| OPEL | 13283344BW |
| SUZUKI | 31400-85E00 |
| LESTER | 23924 |
Adapted models
| FIAT | Punto 1.3D 188A9000 2003-12 |
| OPEL | Agila 1.3D Z13DT 2003-08 |
| OPEL | Corsa C 1.3D Z13DT 2003-06 |
| SUZUKI | Swift 1.3D Z13DT 2005-12 |
Components
Mounting type
| Adj Hole Dia | 9.5mm |
| Piv Hole Dia | 9.5mm, 9.5mm |
| Adjuster -Pivot | 155.5mm |
| Belt limit distance P/A | 41.5mm |
| Inside Ft - Ft/ Pivot Lug Length | 64mm |
| Pulley Dia | 54mm |
| Pulley Type | 6PV |
| B+ terminal dia | M8 |
| D+ terminal diamete | M5 |
| Weight |
