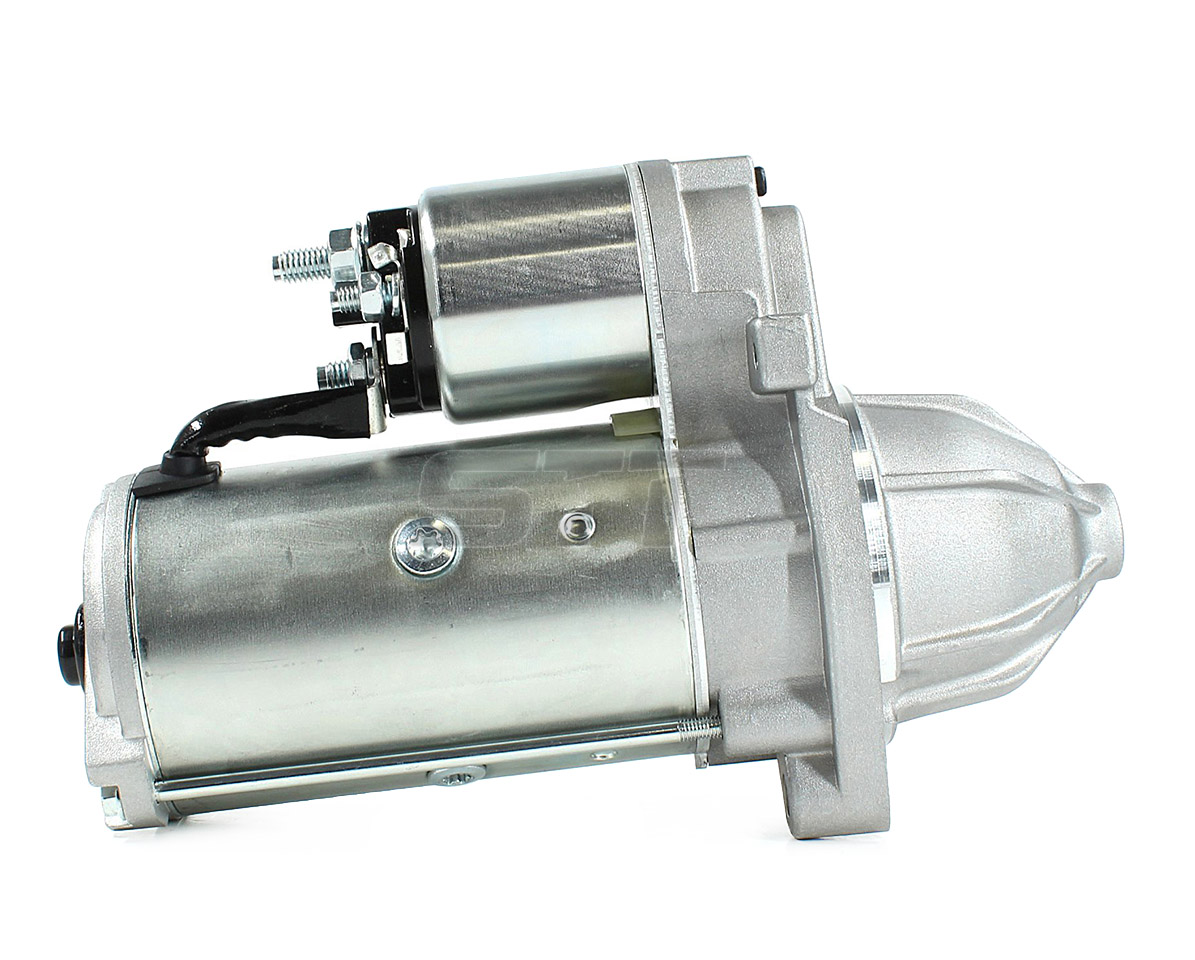

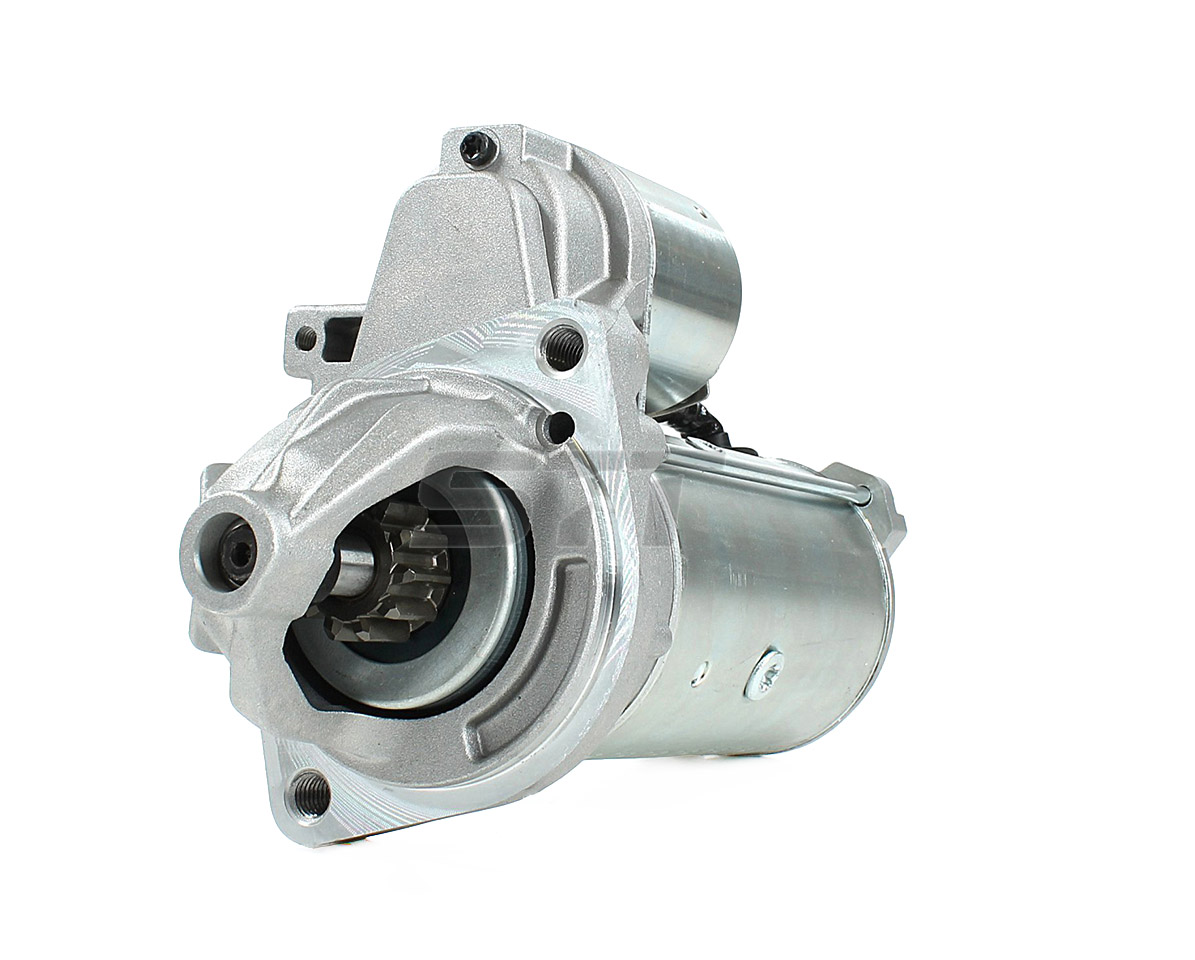

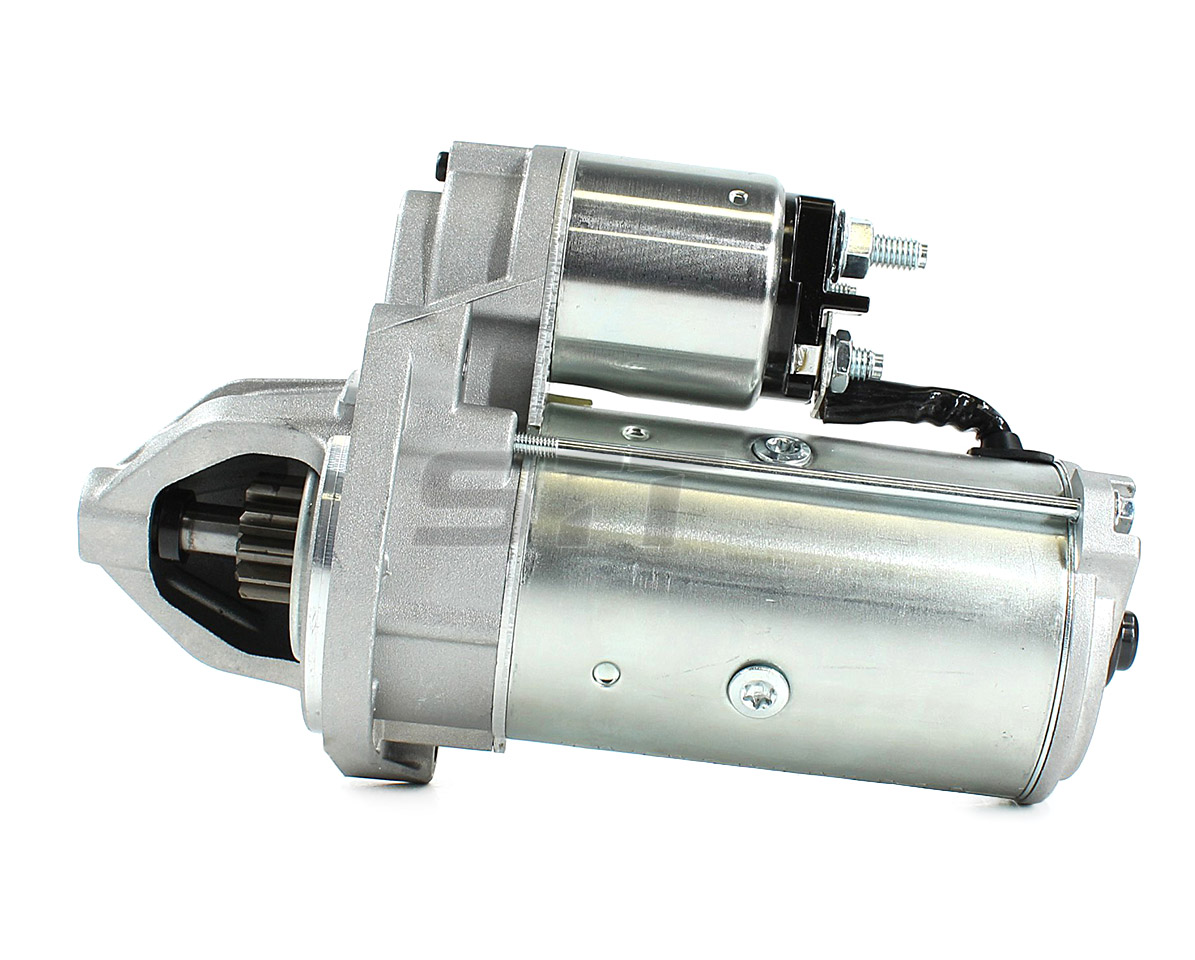

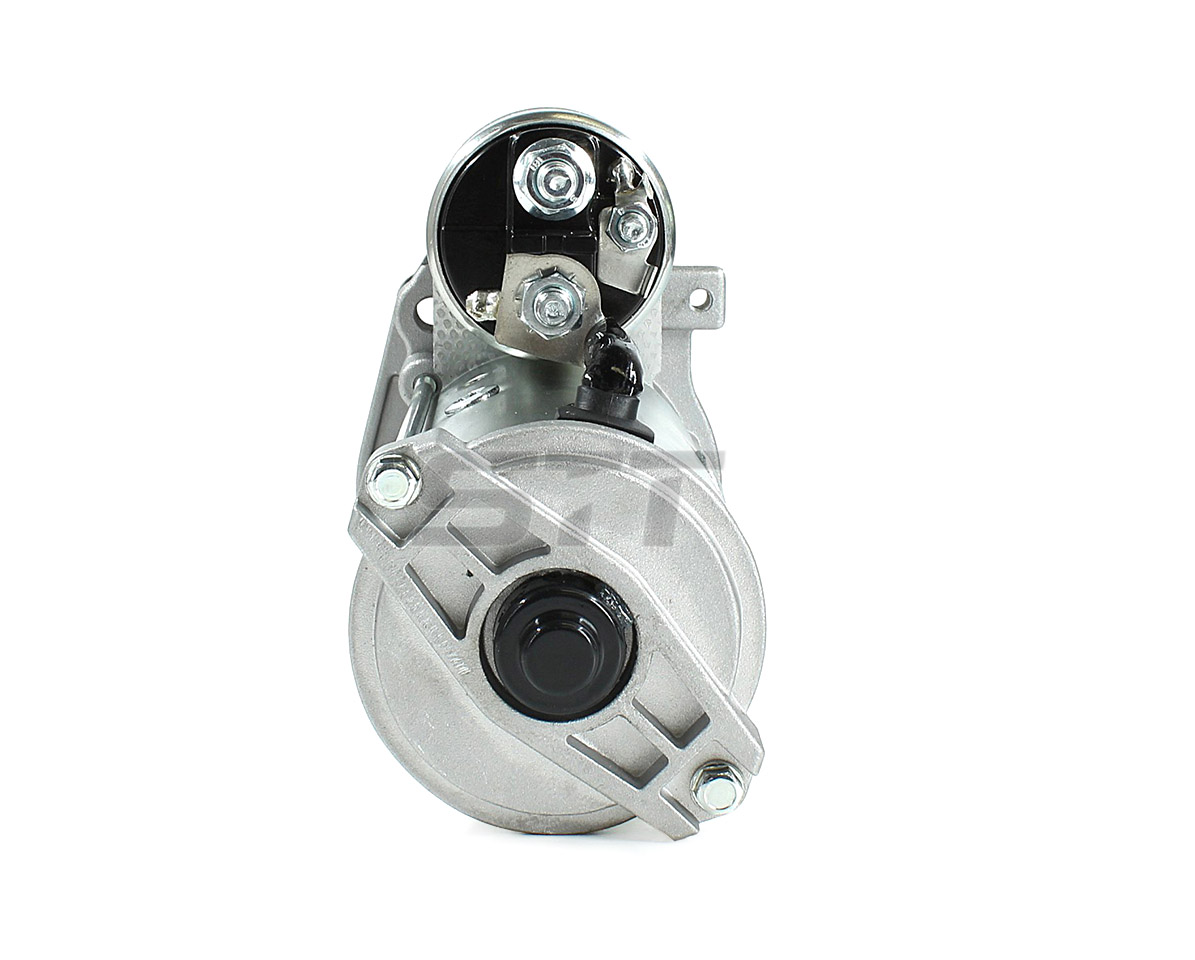

Starter for MERCEDES BENZ C200,E220,SPRINTER 2.2Diesle 1998-06
130-1011
12V 2.2KW 11T CW
Specification
| Volt | 12V |
| Power | 2.2KW |
| Teeth | 11T |
| Rotation | CW |
OE NO
| VALEO | D7R46 |
Ref No
| MERCEDES BENZ | A0051511301 |
| LESTER | 18360 |
| LUCAS | LRS02091 |
Adapted models
| MERCEDES BENZ | C200 2.2D (W203) M611962 2000-03 |
| MERCEDES BENZ | E220 2.2D (W210) M611961 1999-02 |
| MERCEDES BENZ | Sprinter 2.2 D (903) M611981 2002-06 |
Components
Mounting type
| Mount Hole Dia | M10, M10 |
| Flange Dia | 82.2mm |
| Mount Holes Cnt to Cnt | 105mm |
| Pinion Dia | 28.7mm |
| Out of Mesh Clearance | 26mm |
| Overall Length | 239mm |
| HSG Length | 178mm |
| Rest Position B | 118mm |
| S terminal size | M6 |
| B+ terminal size | M8 |
| WEIGHT KG | 3.7Kg |
