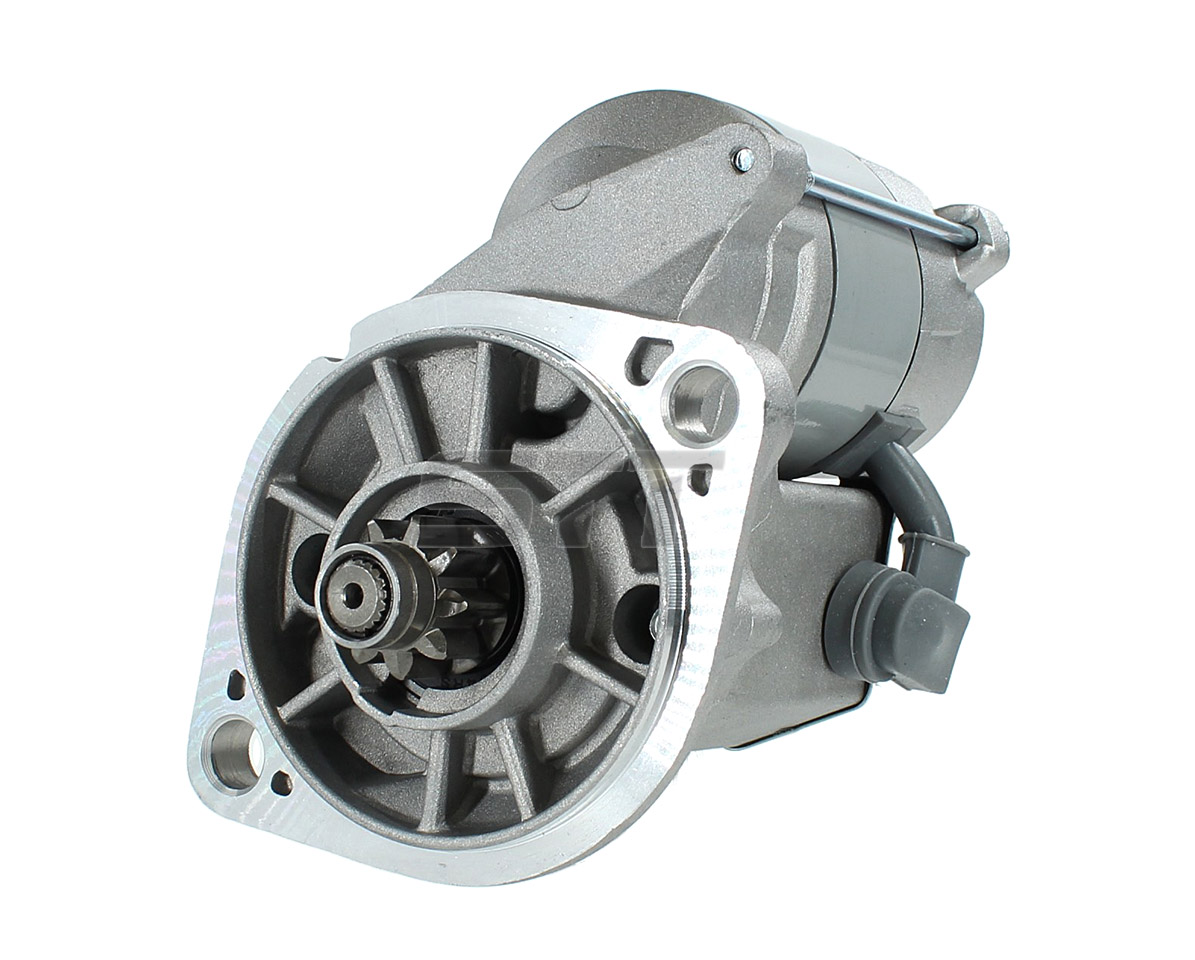

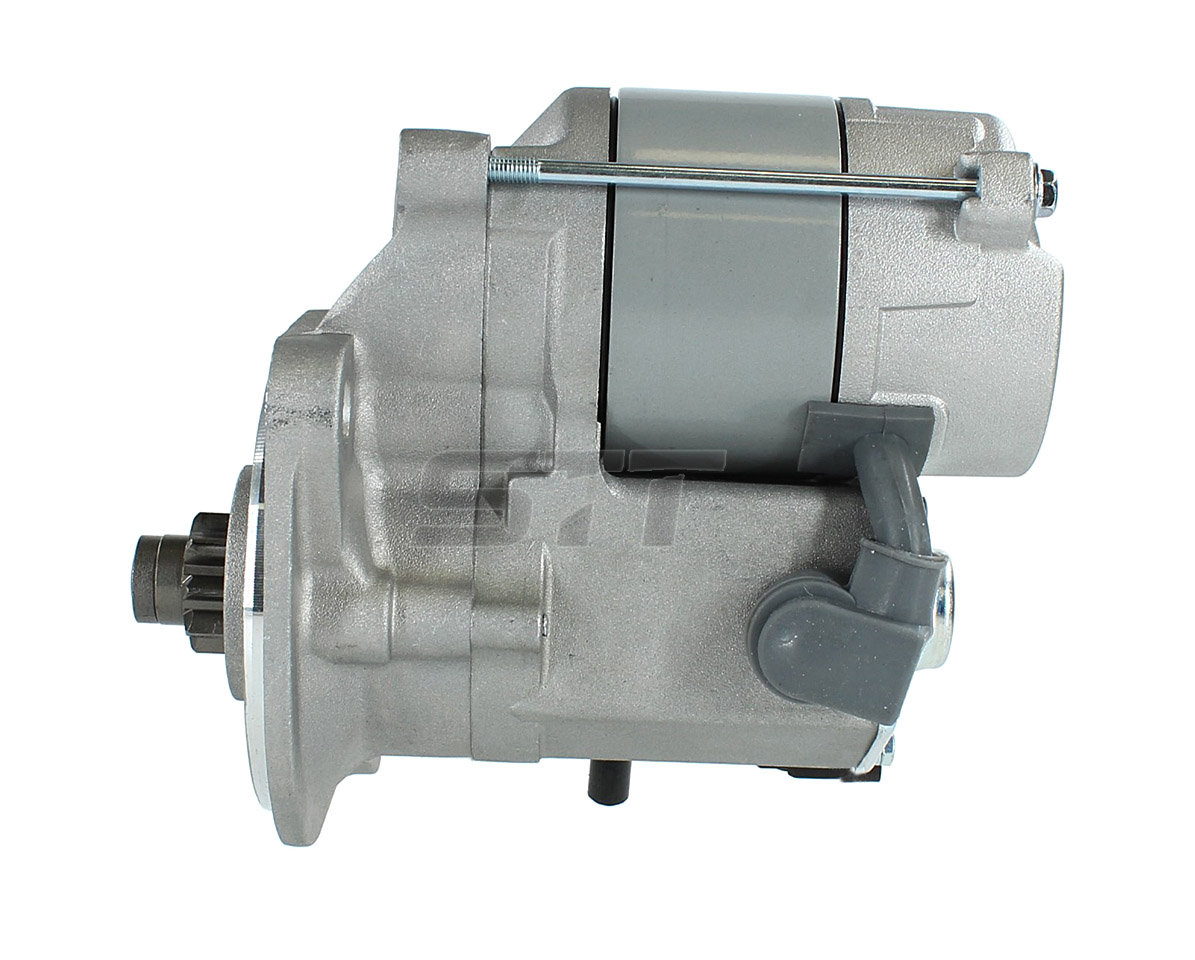

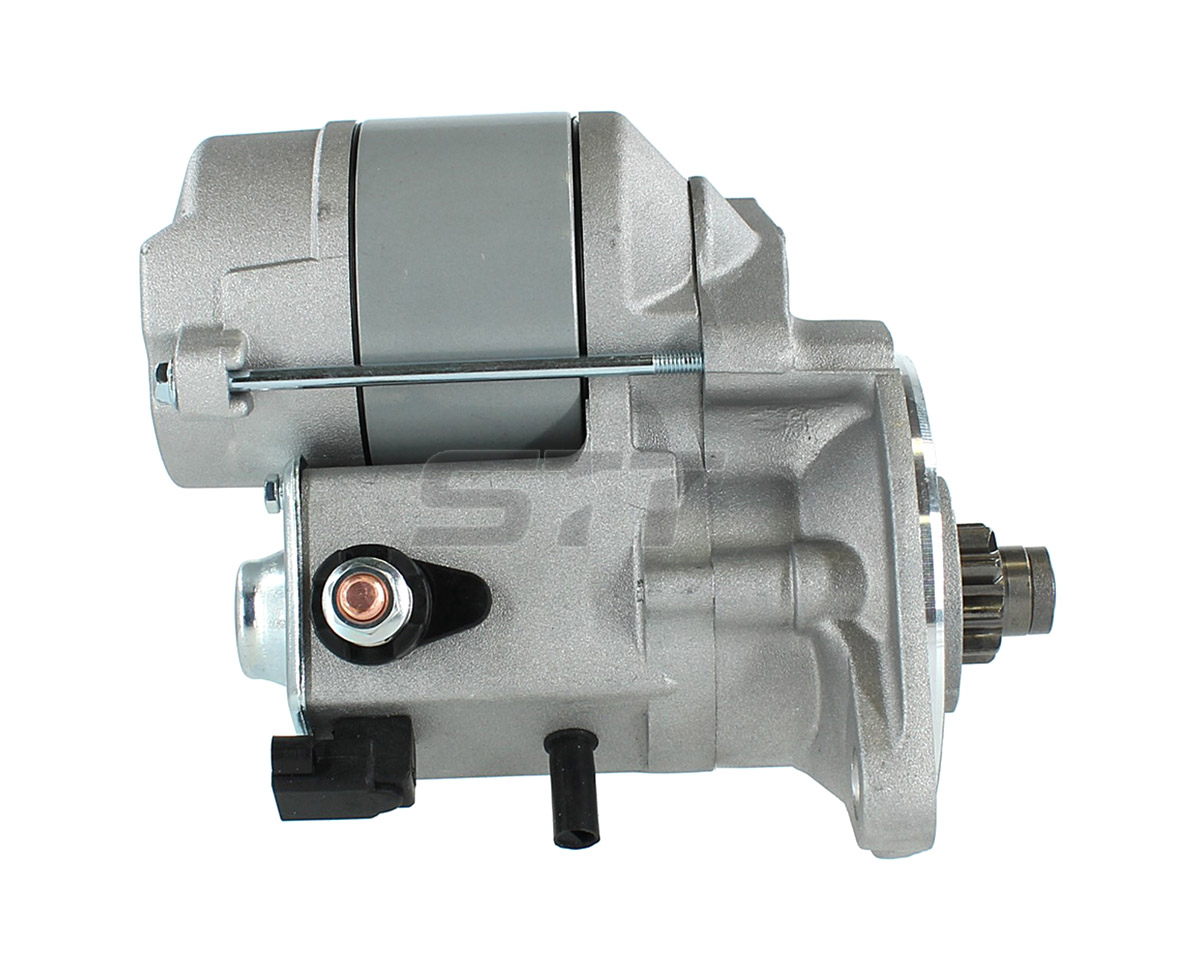

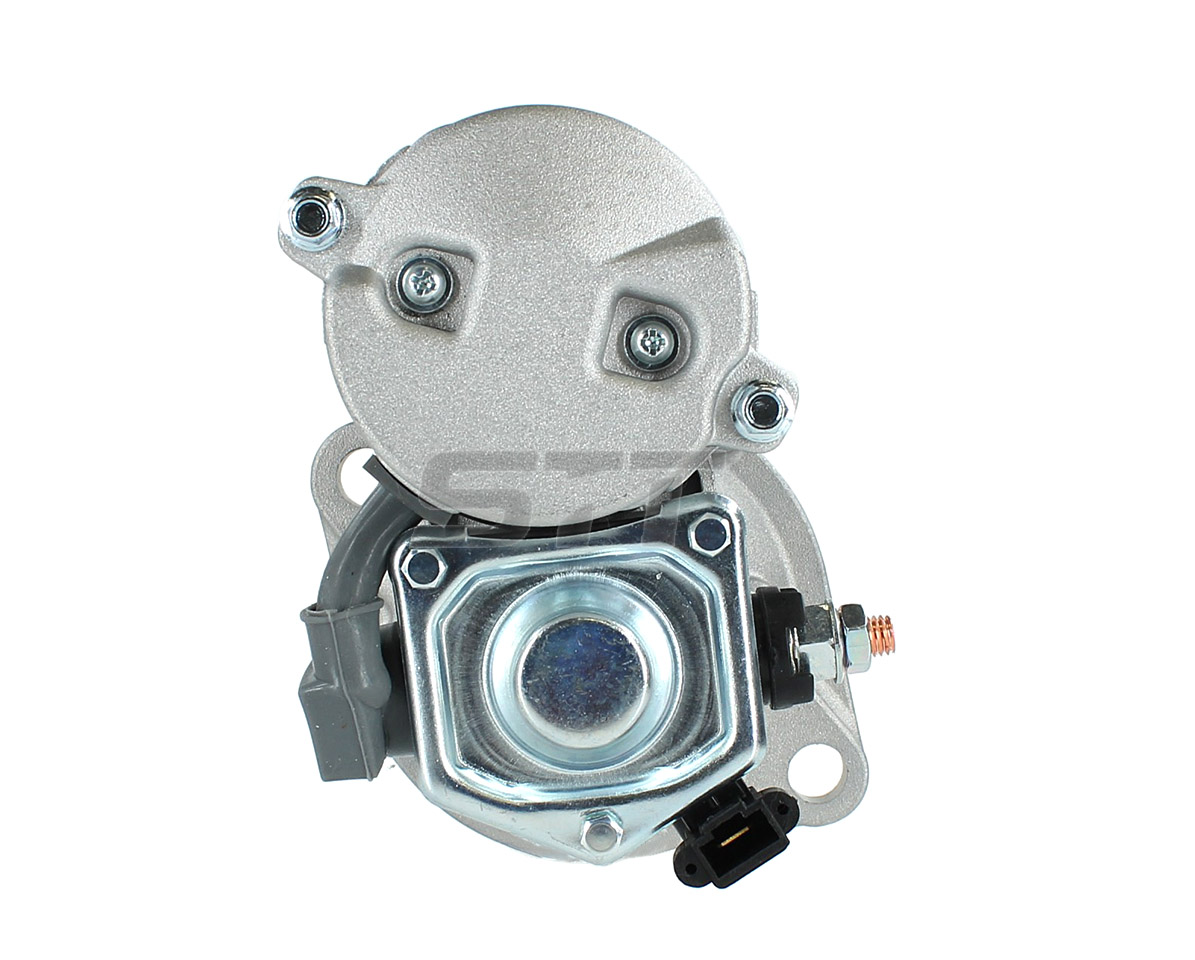

Starter for JOHN DEERE LAWN &UTILITY TRACTORS YANMAR 24HP DIESEL
121-537
12V 1.2KW 9T CW
Specification
| Volt | 12V |
| Power | 1.2KW |
| Teeth | 9T |
| Rotation | CW |
OE NO
| Denso | 428000-0870 |
Ref No
| JOHN DEERE | M810337 |
| YANMAR | 119626-77020 |
| LESTER | 16021 |
| LUCAS | LRS04197 |
Adapted models
| JOHN DEERE 2025R 3TNV76 | |
| JOHN DEERE 1026R 1.1D 3TNV76 2011-12 |
Components
Mounting type
| Mount Hole Dia | 13mm, 13mm |
| Flange Dia | 95mm |
| Mount Holes Cnt to Cnt | 119.5mm |
| Pinion Dia | 28.7mm |
| Out of Mesh Clearance | 21mm |
| Overall Length | 179mm |
| HSG Length | 144mm |
| Rest Position B | 132mm |
| S terminal size | |
| B+ terminal size | M8 |
| WEIGHT KG | 3.5Kg |
