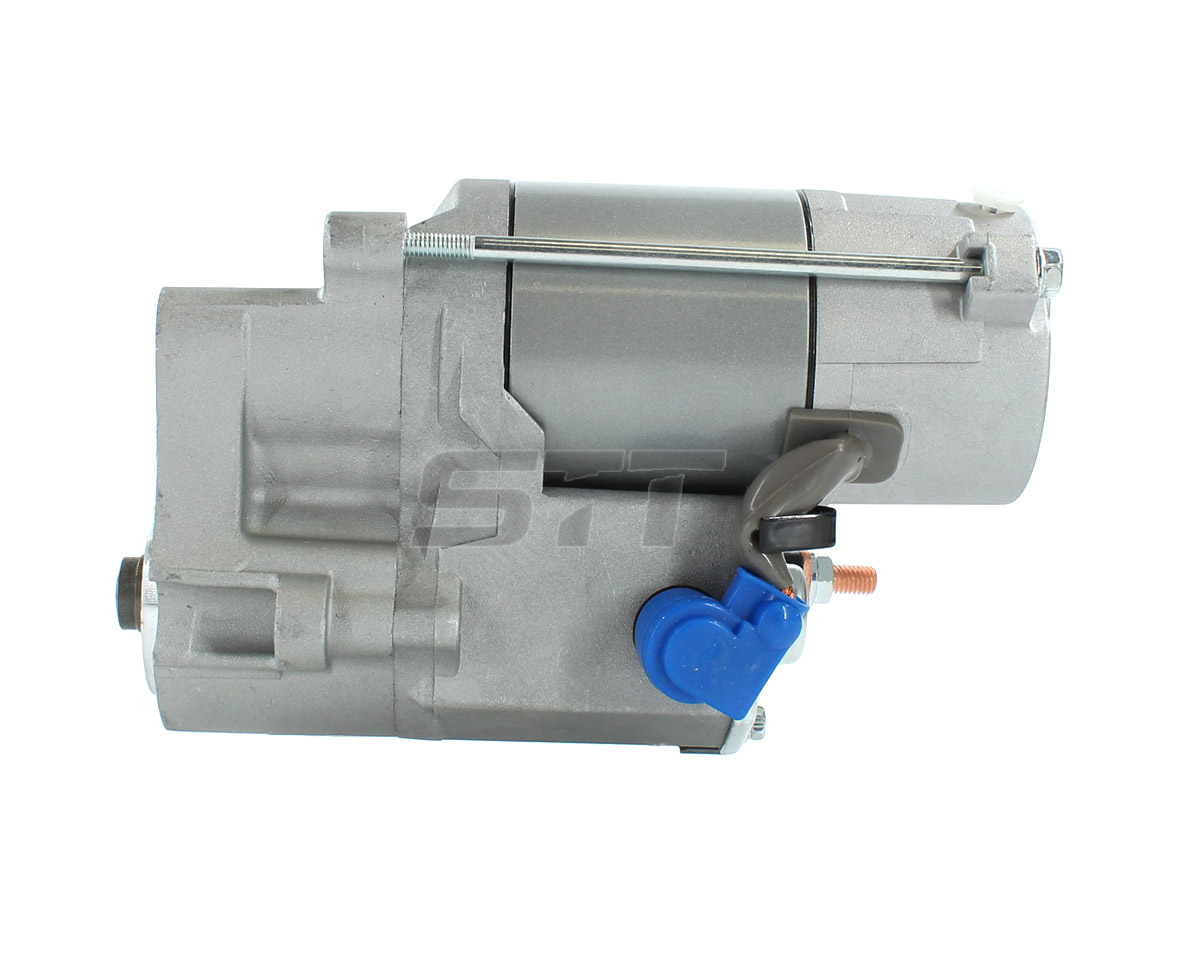

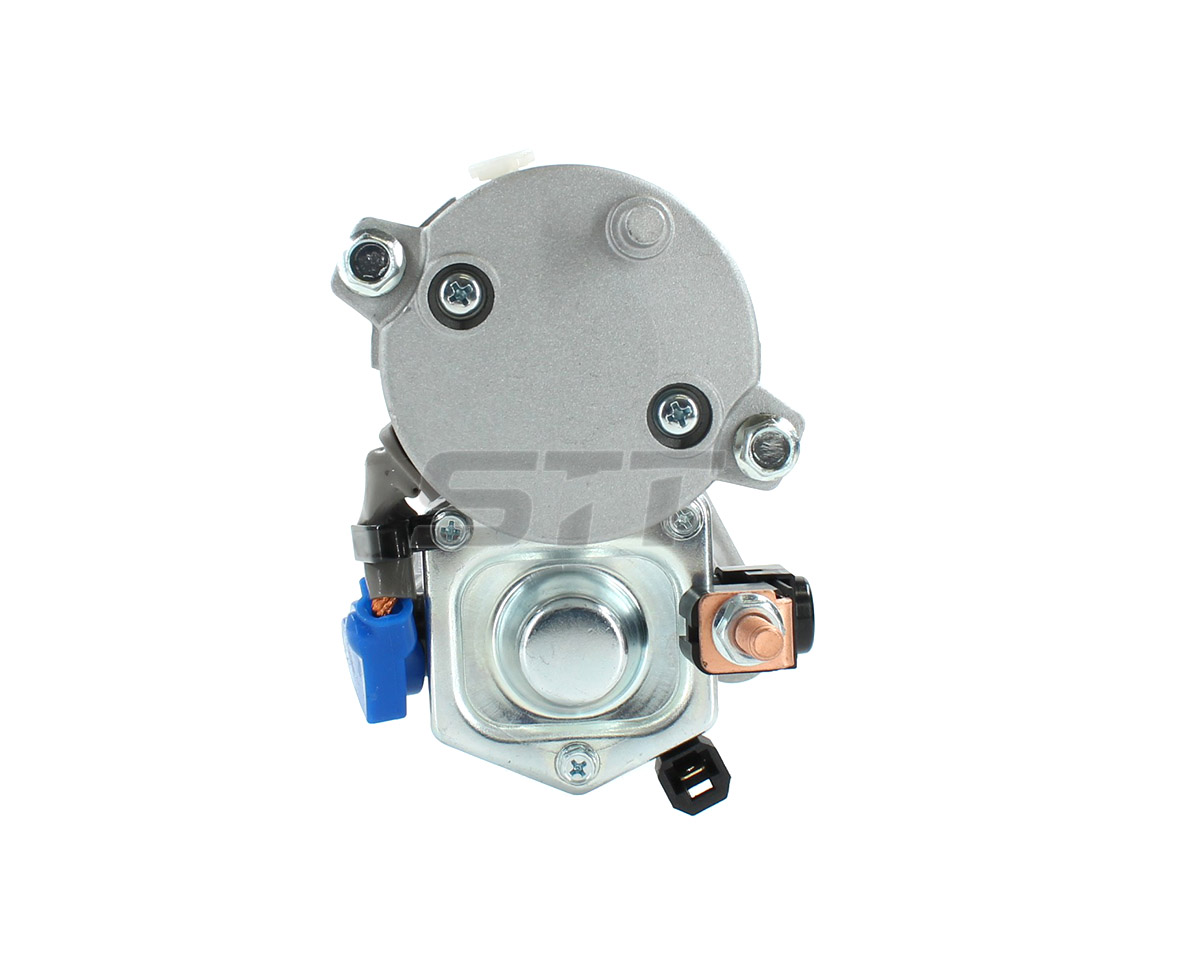

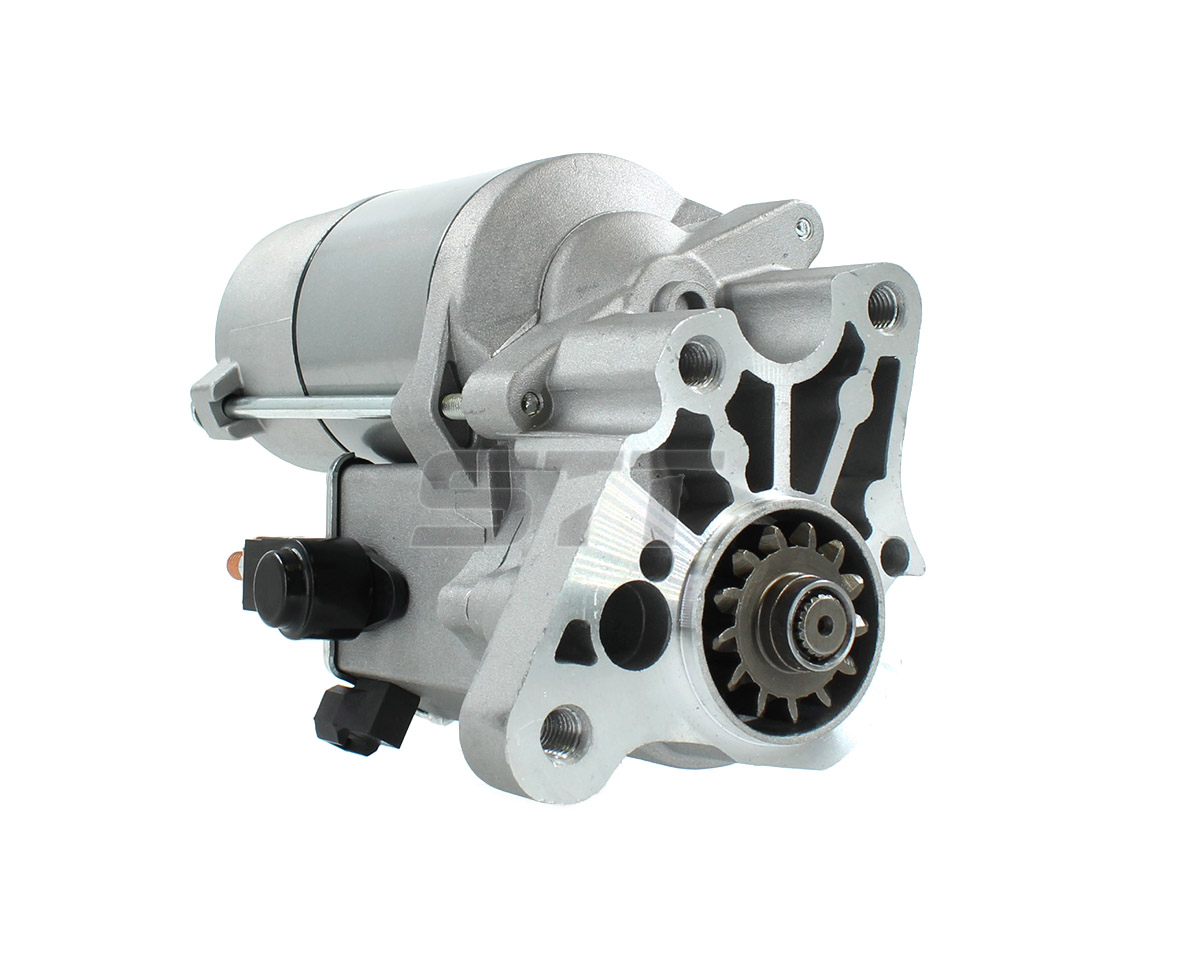

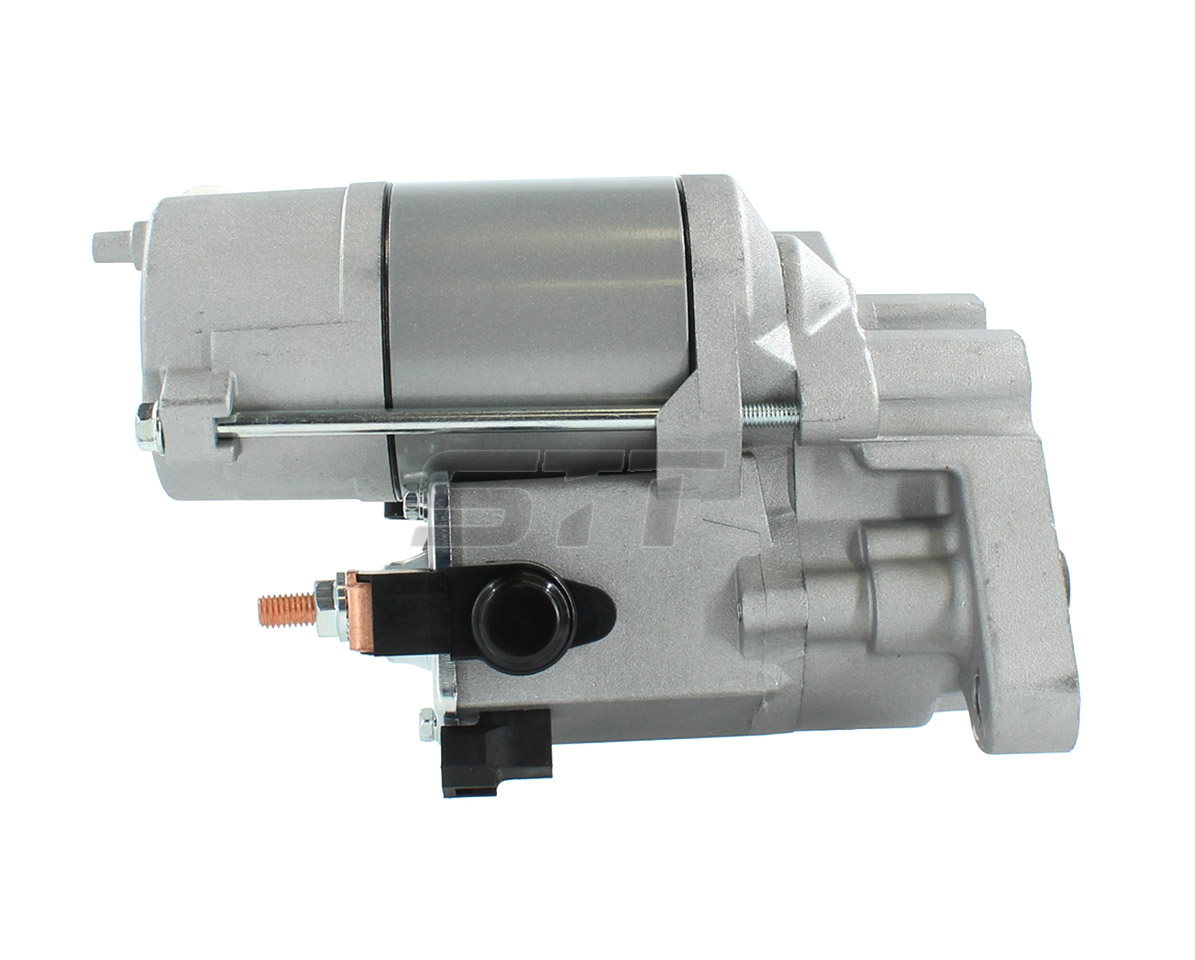

Specification
| Volt | 12V |
| Power | 2.0KW |
| Teeth | 13T |
| Rotation | CW |
OE NO
| Denso | 428000-8390 |
Ref No
| CHRYSLER | 68066177AA |
| LESTER | 19205 |
Adapted models
| CHRYSLER 300 6.4L 2012-14 | |
| DODGE Challenger 6.2L 2015-16 |
Components
Mounting type
| Mount Hole Dia | M10, M10, M10 |
| Flange Dia | 50mm |
| Mount Holes Cnt to Cnt | 78*51*117mm |
| Pinion Dia | 40.5mm |
| Out of Mesh Clearance | 5mm |
| Overall Length | 234mm |
| HSG Length | 220mm |
| Rest Position B | 179mm |
| S terminal size | |
| B+ terminal size | M8 |
| WEIGHT KG | 4.7Kg |
