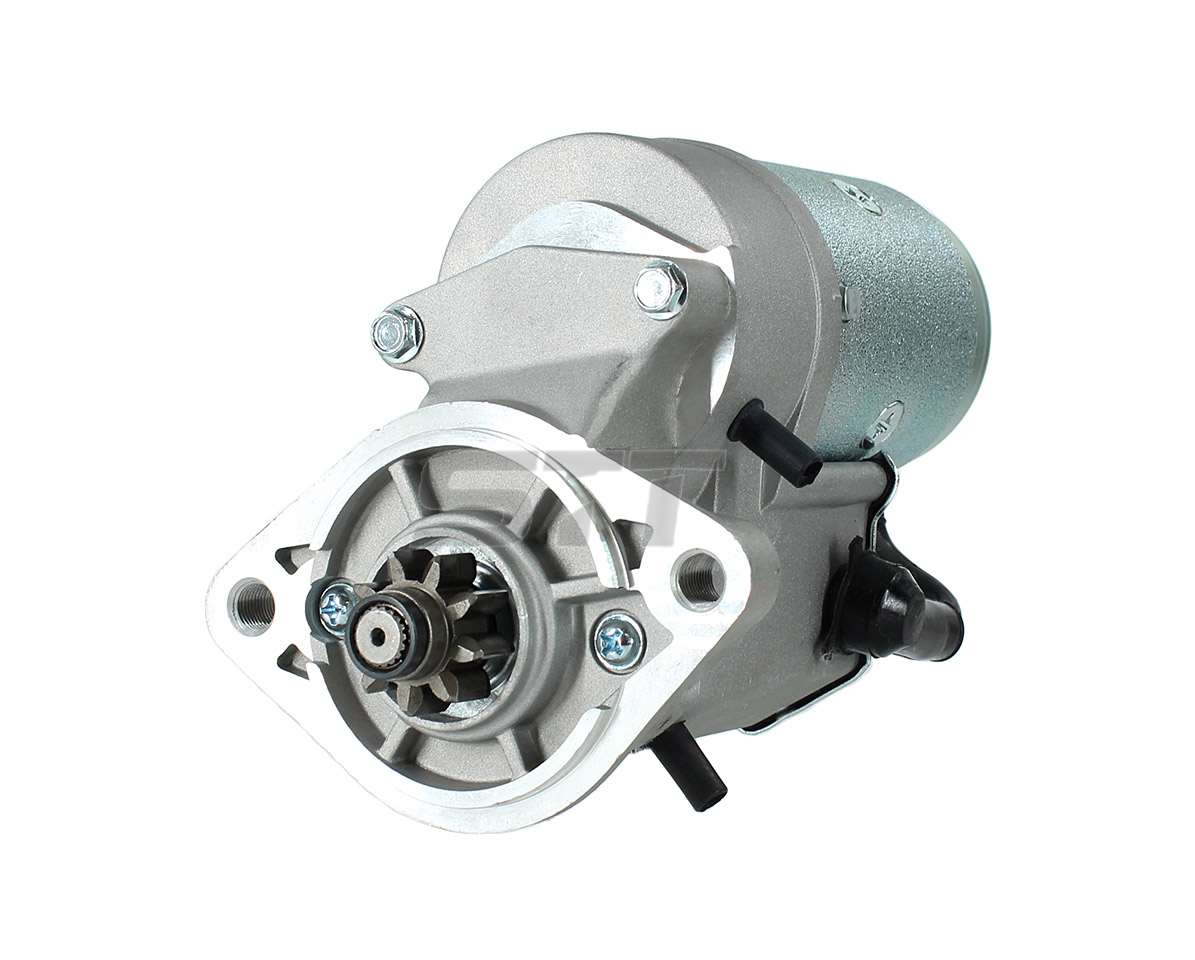

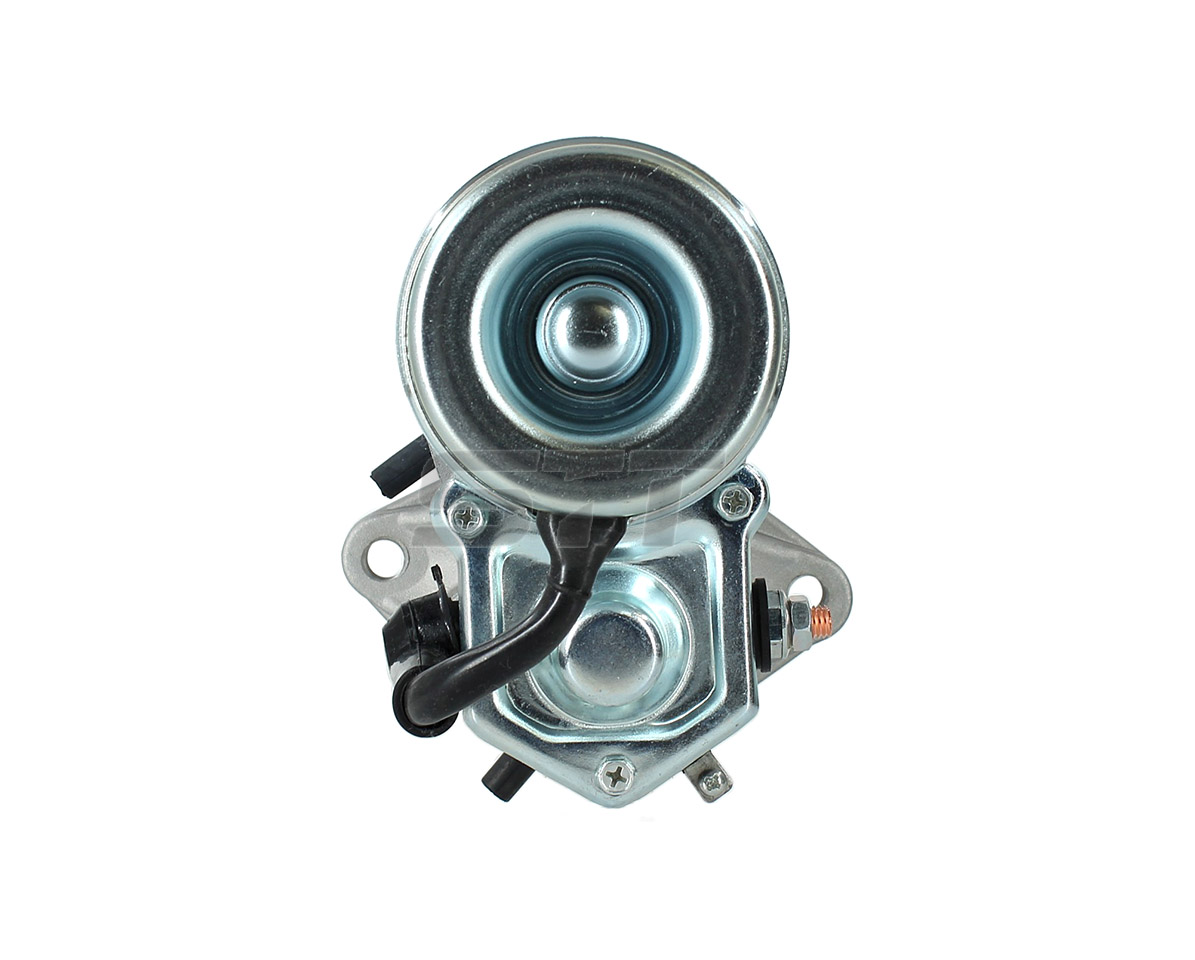

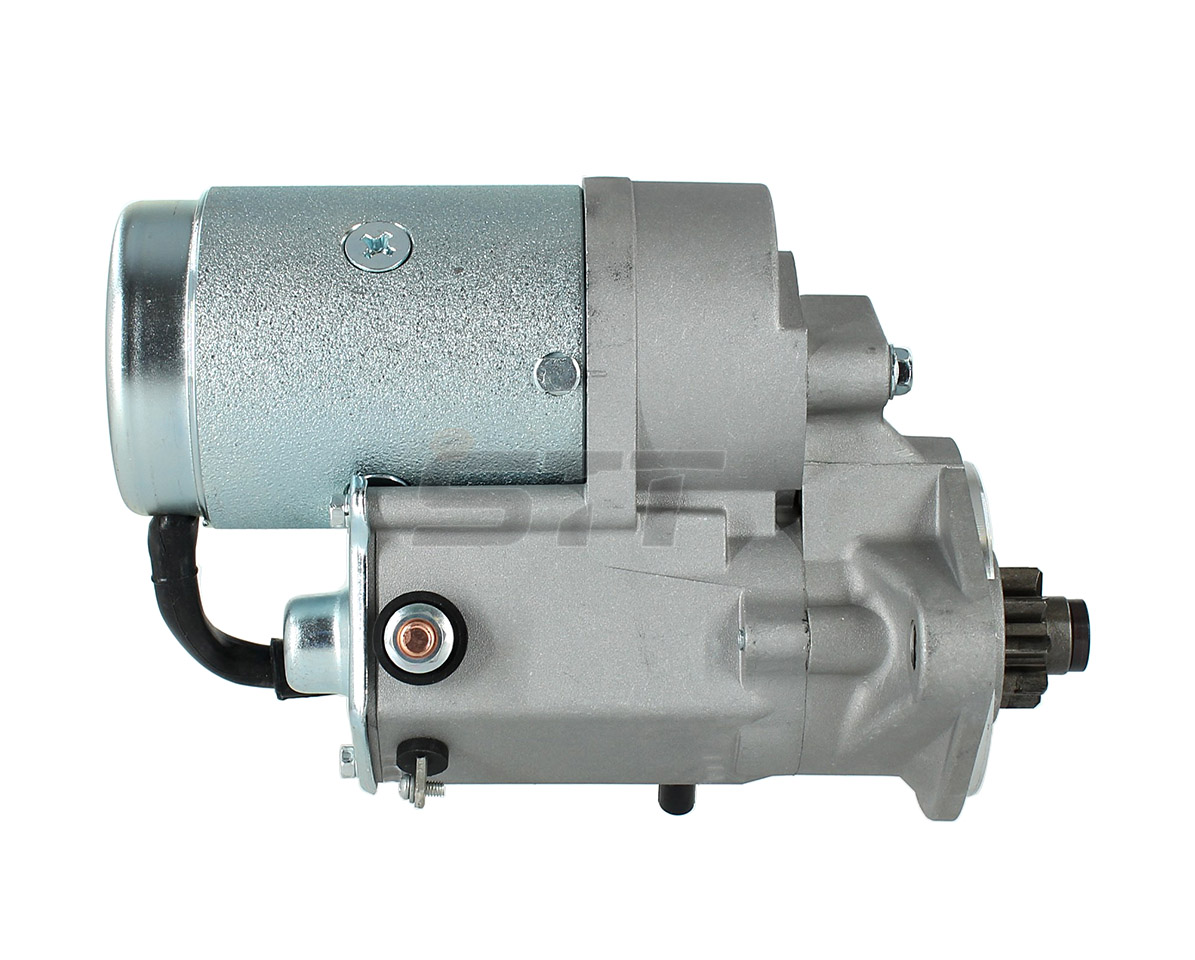

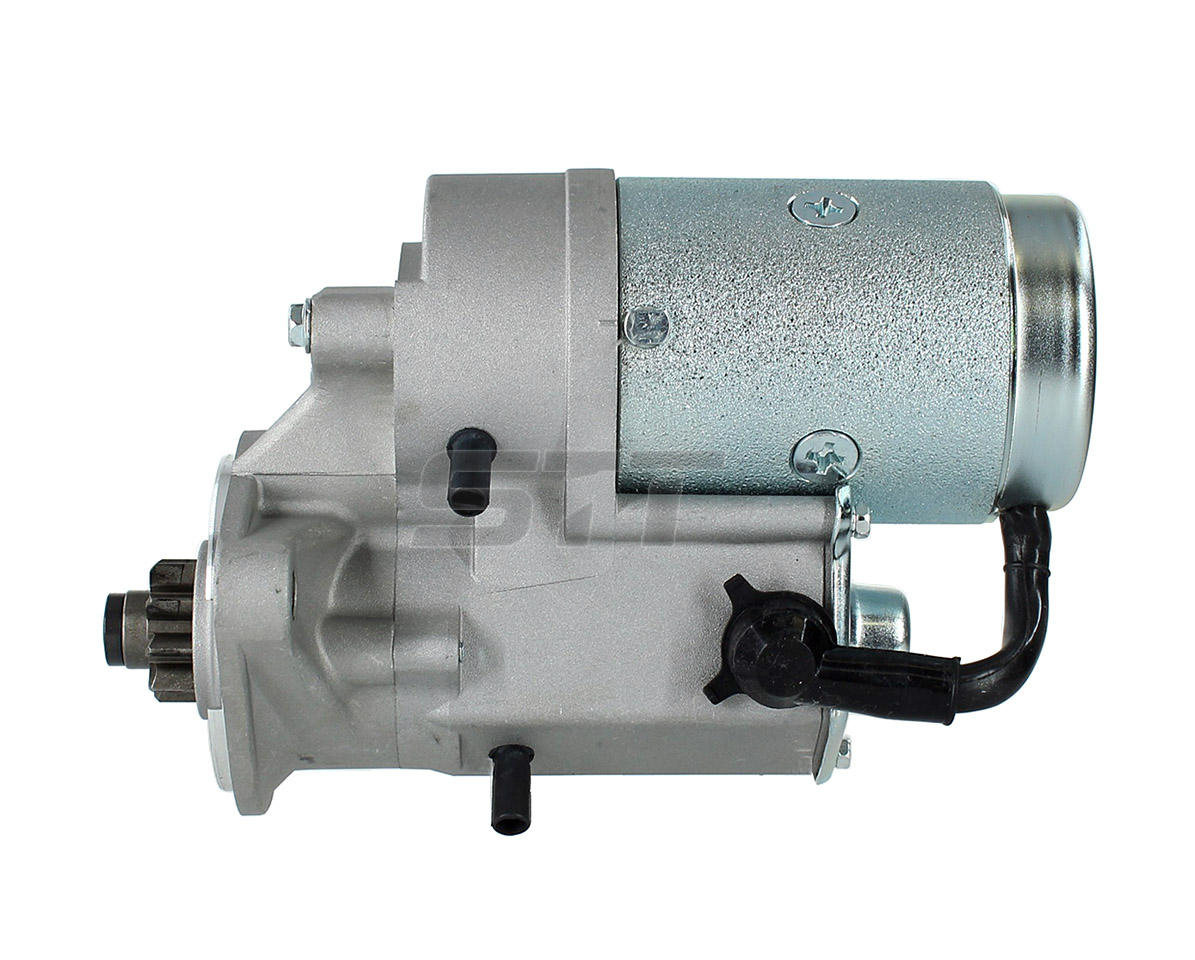

Specification
| Volt | 12V |
| Power | 2.2KW |
| Teeth | 9T |
| Rotation | CW |
OE NO
| Denso | 128000-5760 |
Ref No
| DAIHATSU | 28100-87316 |
| LESTER | 31307 |
| LUCAS | LRS02041 |
Adapted models
| DAIHATSU Rocky 2.8 TD DL51 1984-93 |
Components
Mounting type
| Mount Hole Dia | M12, M12 |
| Flange Dia | 82.5mm |
| Mount Holes Cnt to Cnt | 115mm |
| Pinion Dia | 35mm |
| Out of Mesh Clearance | 21mm |
| Overall Length | 236mm |
| HSG Length | 161.5mm |
| Rest Position B | 203mm |
| S terminal size | M4 |
| B+ terminal size | M8 |
| WEIGHT KG |
