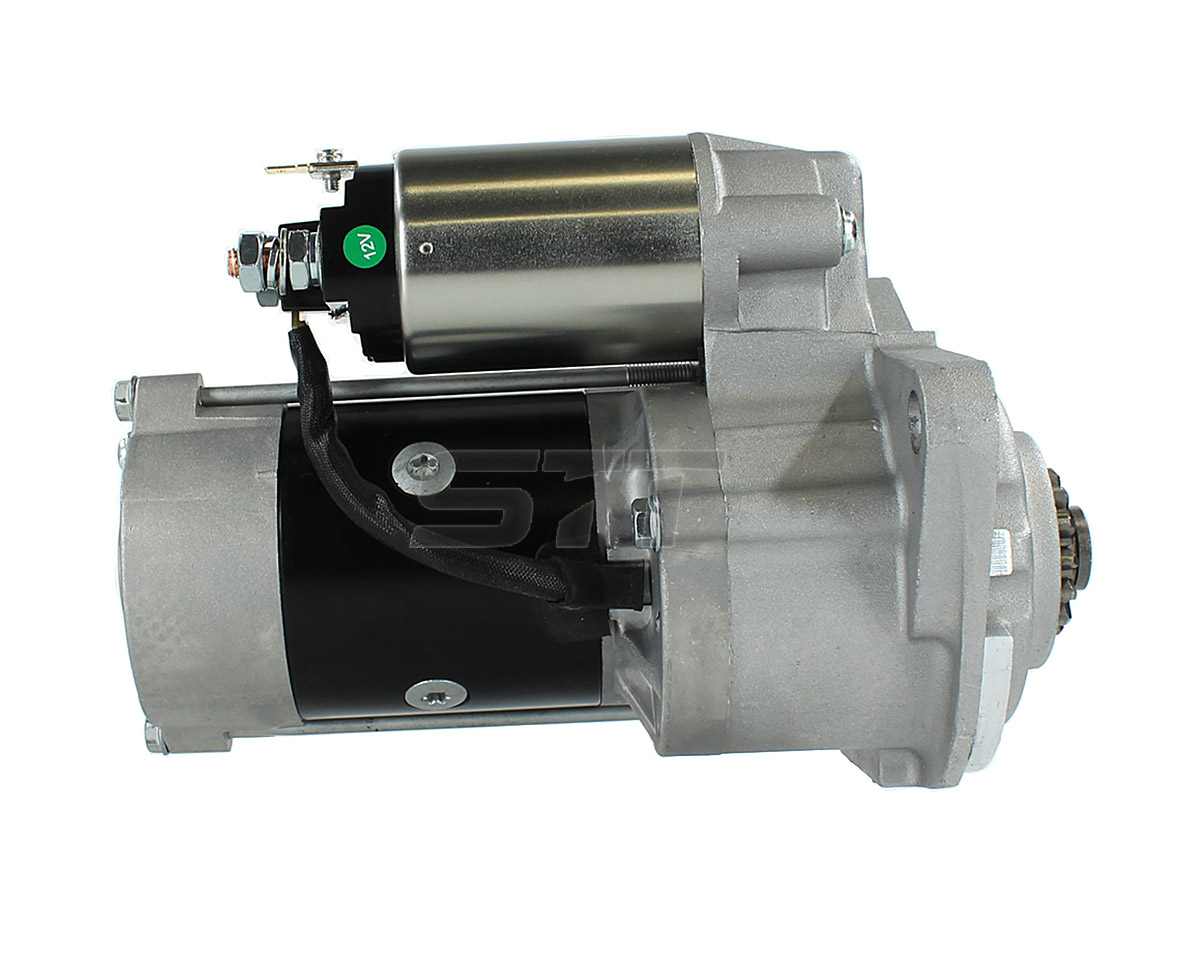

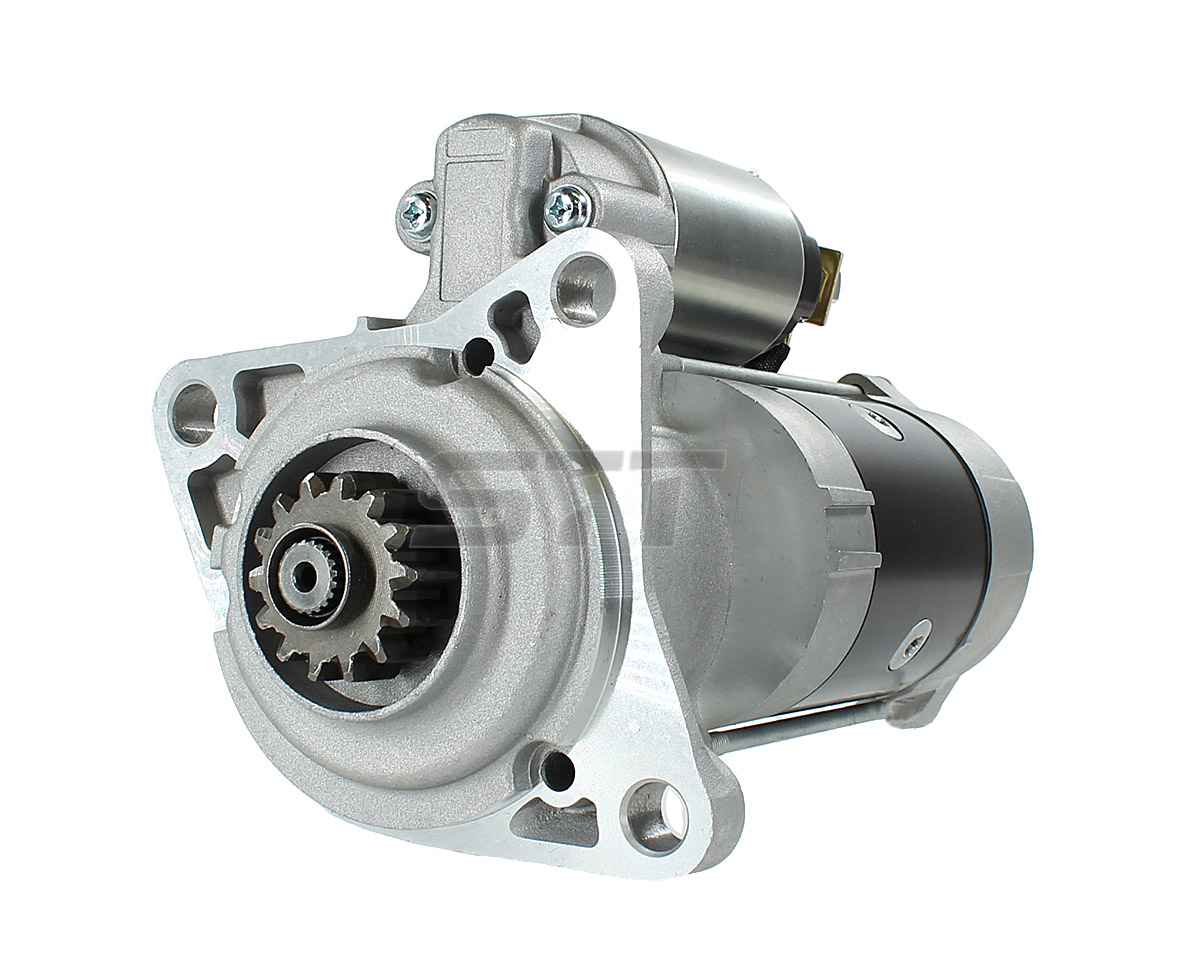

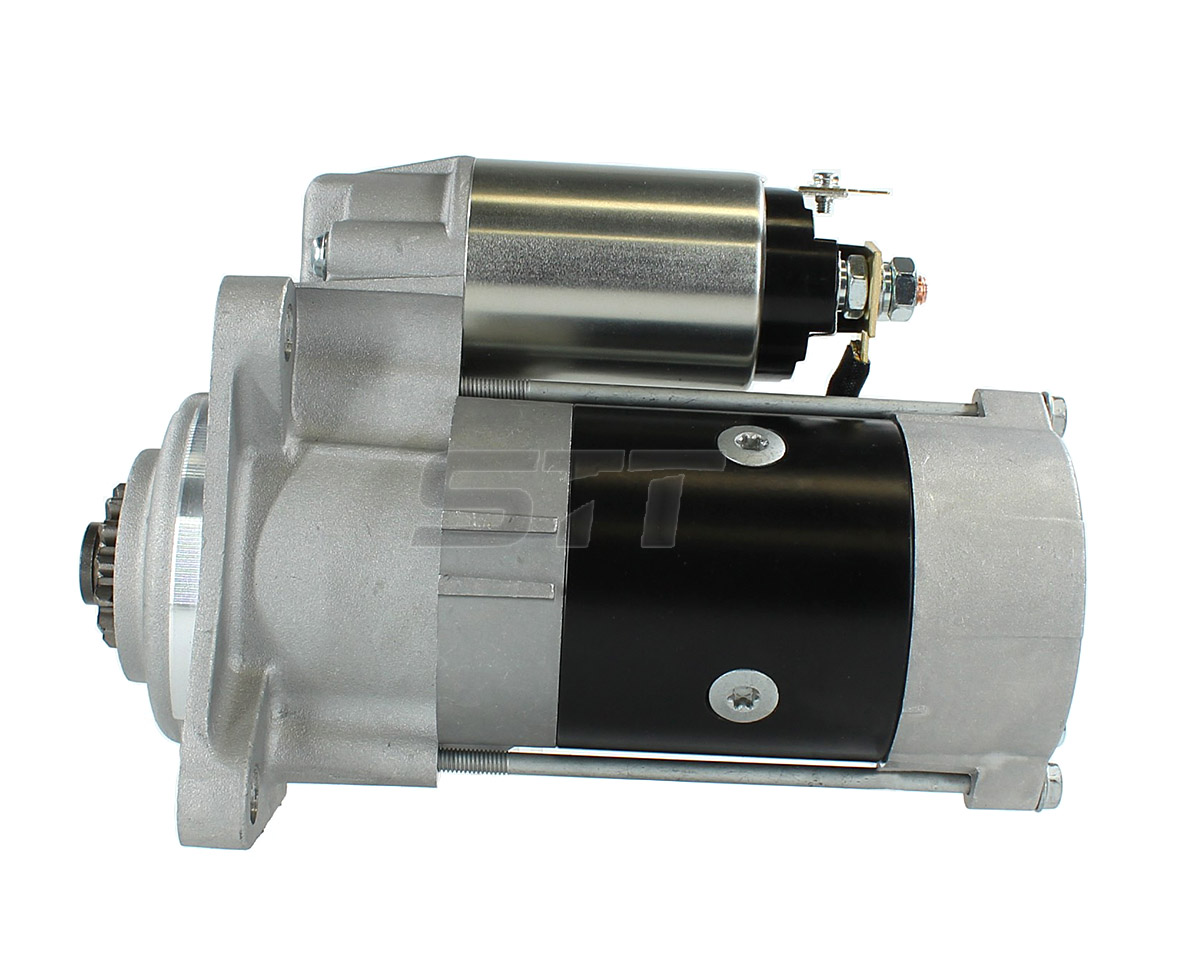

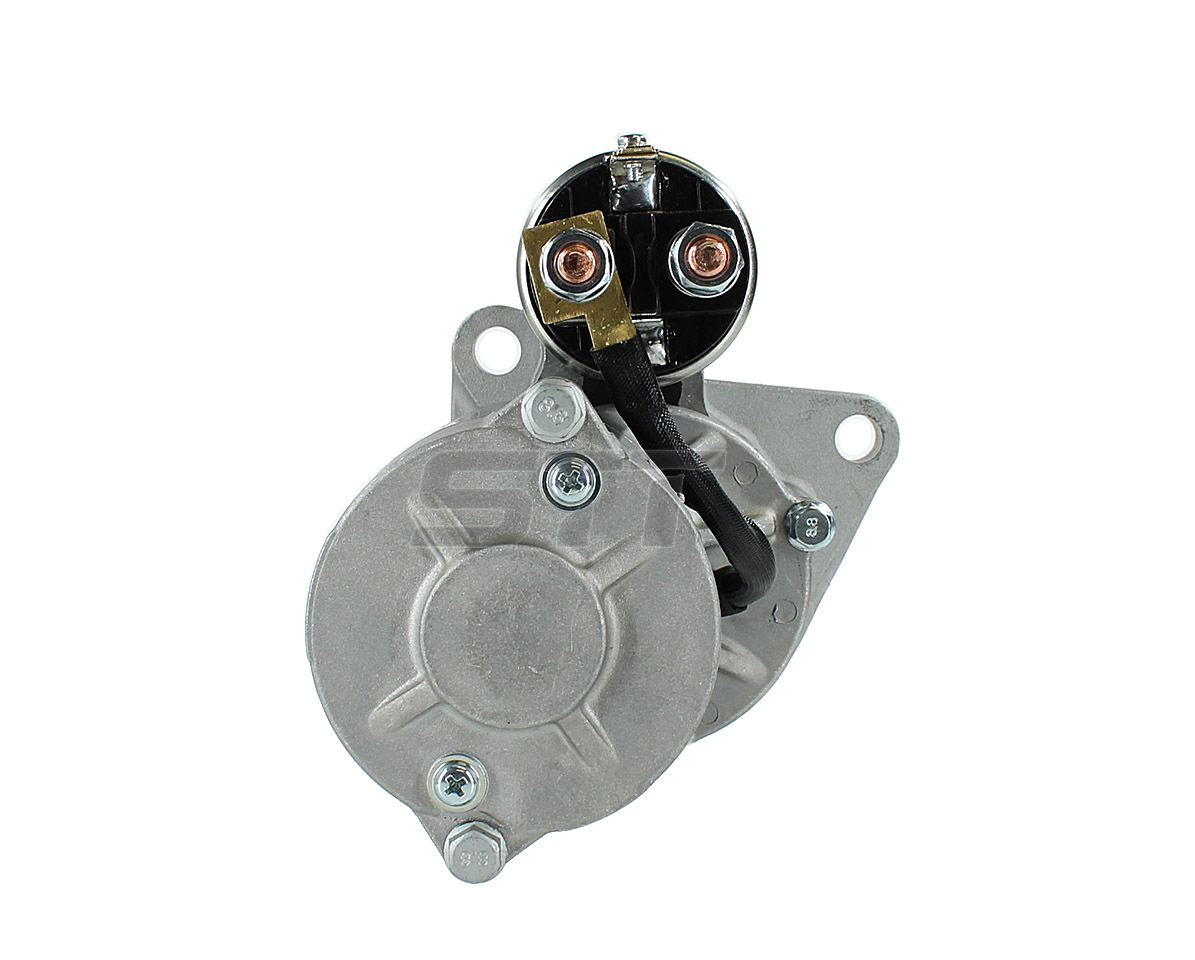

Specification
| Volt | 12V |
| Power | 2.0KW |
| Teeth | 14T |
| Rotation | CW |
OE NO
| MITSUBISHI | M2T54471 |
Ref No
| MAZDA | 5501-18-400 |
| LESTER | 31303 |
| LUCAS | LRS01084 |
Adapted models
| MAZDA | E2500 TRUCK DSL 1980-84 |
| MAZDA | E3000 TRUCK DSL 1980-84 |
Components
Mounting type
| Mount Hole Dia | 13.5mm,13.5mm,13.5mm |
| Flange Dia | 100mm |
| Mount Holes Cnt to Cnt | 105*105*144.5mm |
| Pinion Dia | 42mm |
| Out of Mesh Clearance | 25mm |
| Overall Length | 239mm |
| HSG Length | 202mm |
| Rest Position B | 168mm |
| S terminal size | |
| B+ terminal size | M8 |
| WEIGHT KG | 5.9Kg |
