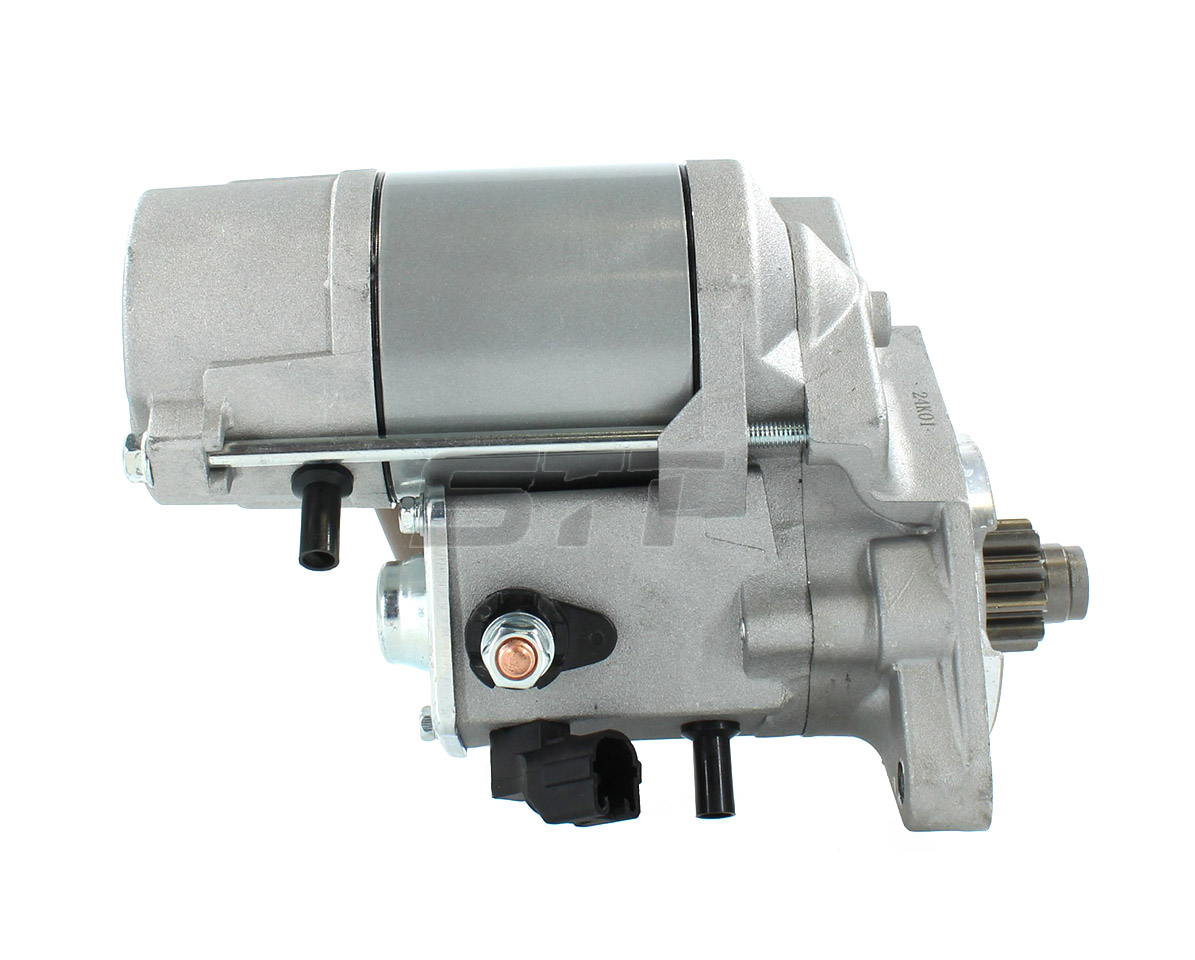

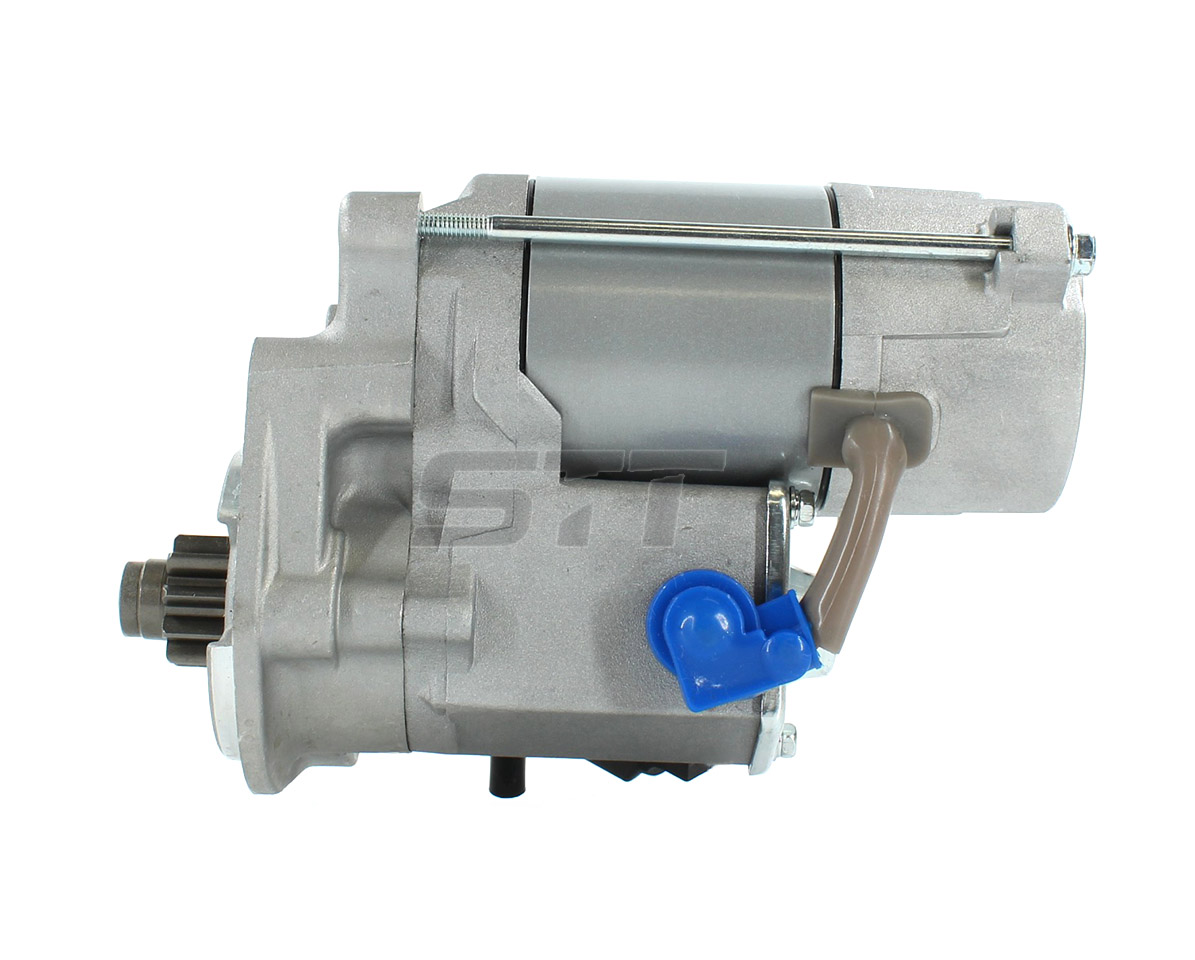

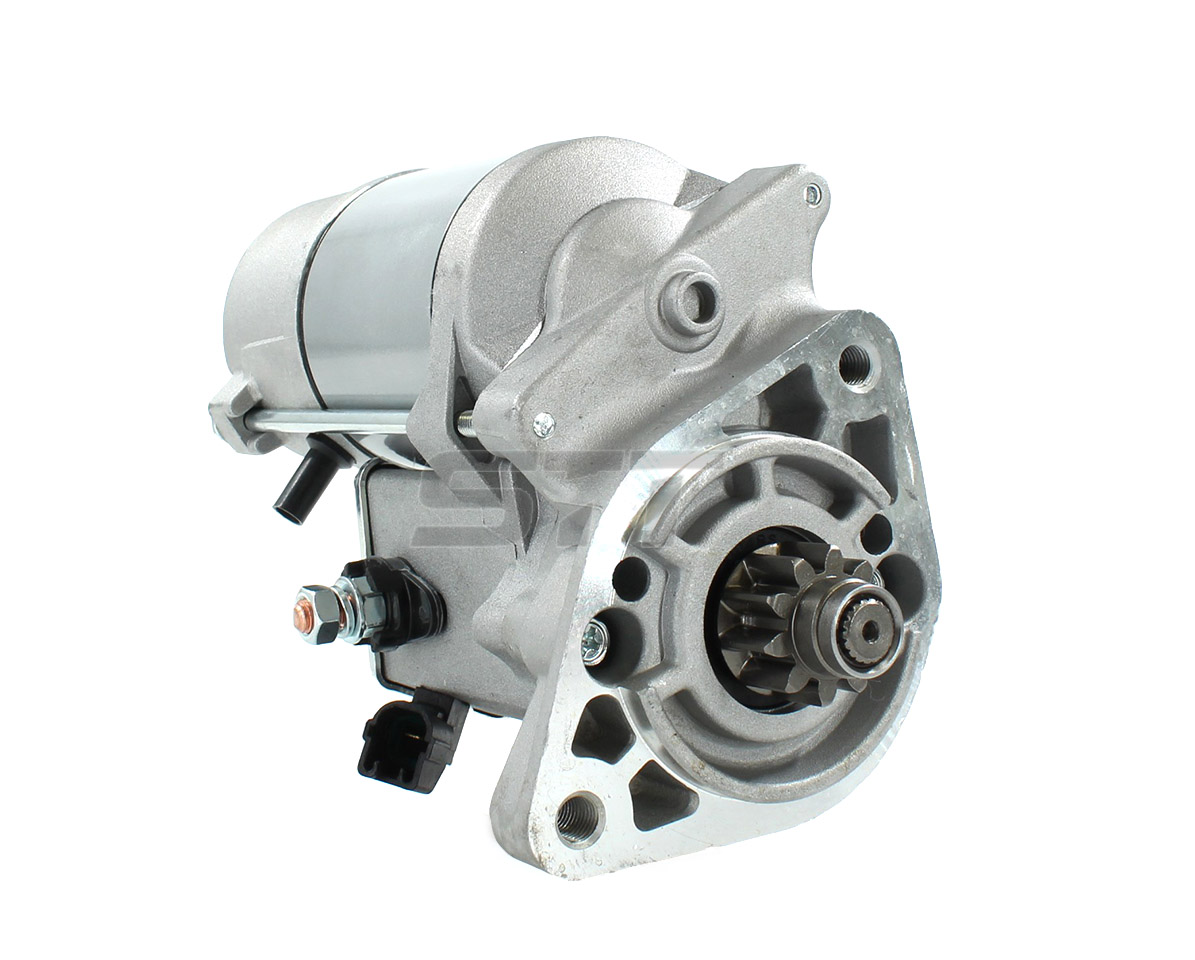

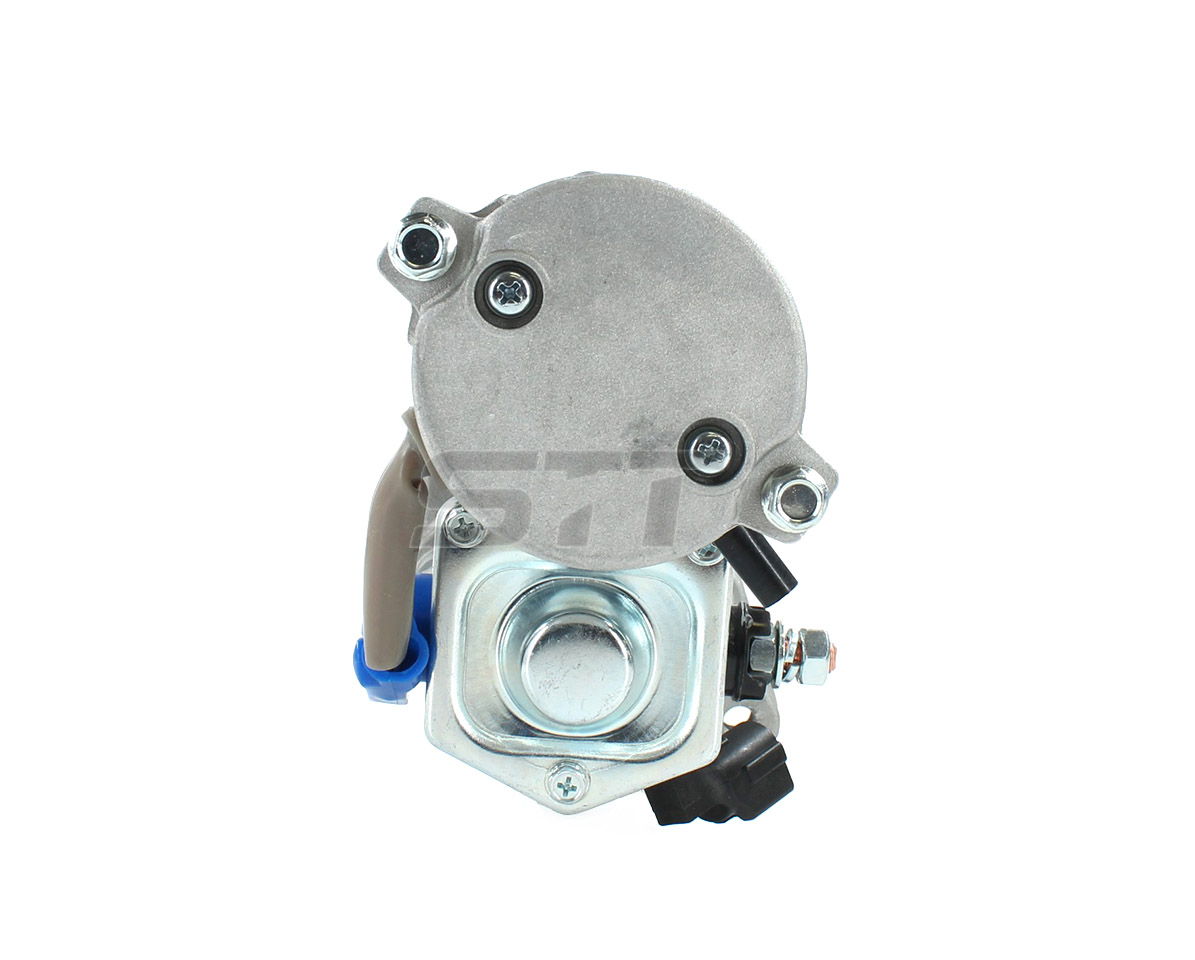

Starter for TOYOTA 4 Runner ,Land Cruiser 4.0L 1GRFE 2002-10
101-1100
12V 2.0KW 10T CW
Specification
| Volt | 12V |
| Power | 2.0KW |
| Teeth | 10T |
| Rotation | CW |
OE NO
| DENSO | 428000-1250 |
Ref No
| TOYOTA | 28100-31050 |
| LESTER | 17876 |
| LUCAS | LRS02203 |
Adapted models
| TOYOTA | 4 Runner 4.0L [1GR-FE] 2003-2005 |
| TOYOTA | Land Cruiser 4.0L [1GR-FE] 2003- |
Components
Mounting type
| Mount Hole Dia | M10, M10 |
| Flange Dia | 74mm |
| Mount Holes Cnt to Cnt | 114mm |
| Pinion Dia | 32mm |
| Out of Mesh Clearance | 22mm |
| Overall Length | 219.5mm |
| HSG Length | 186mm |
| Rest Position B | |
| S terminal size | |
| B+ terminal size | M8 |
| WEIGHT KG | 4.5Kg |
