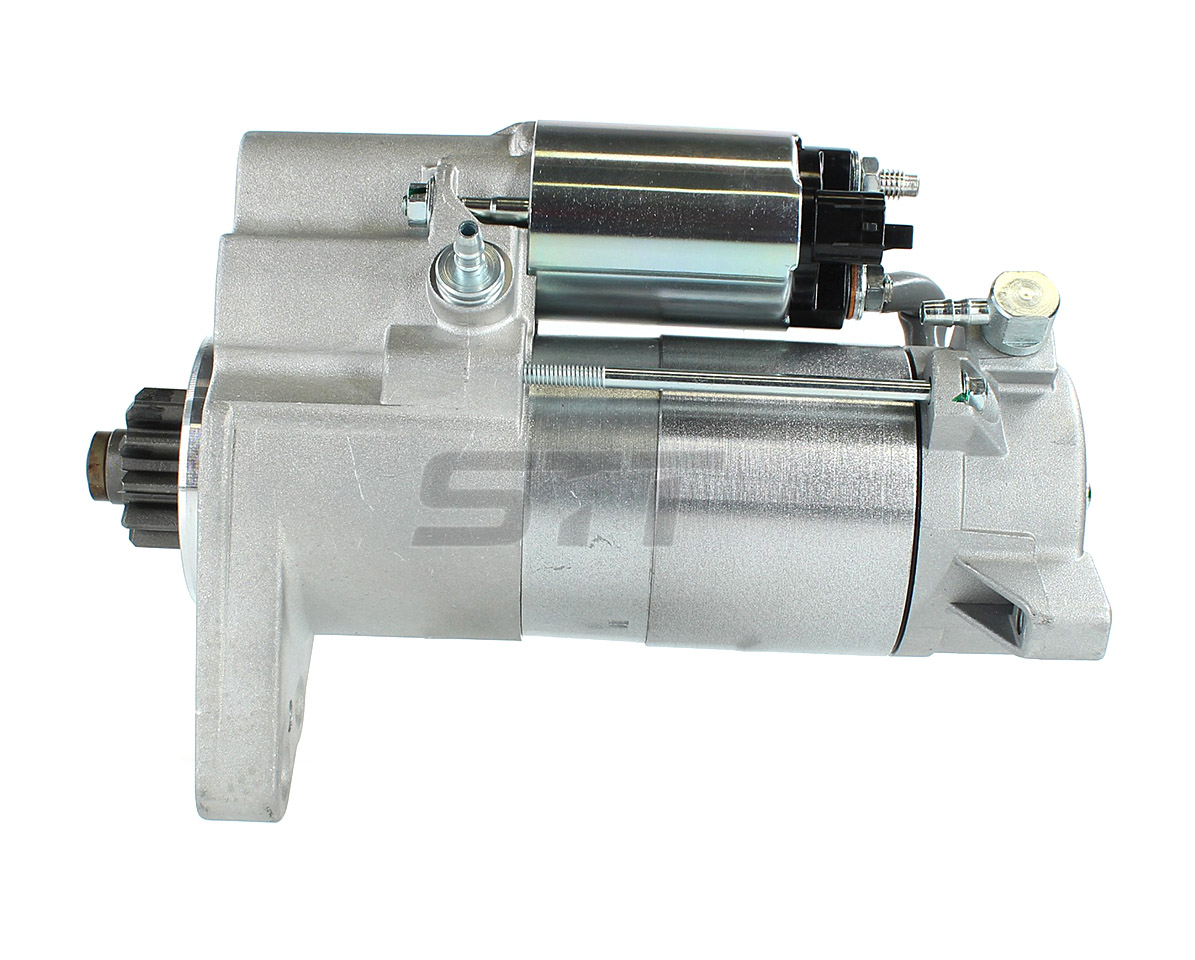

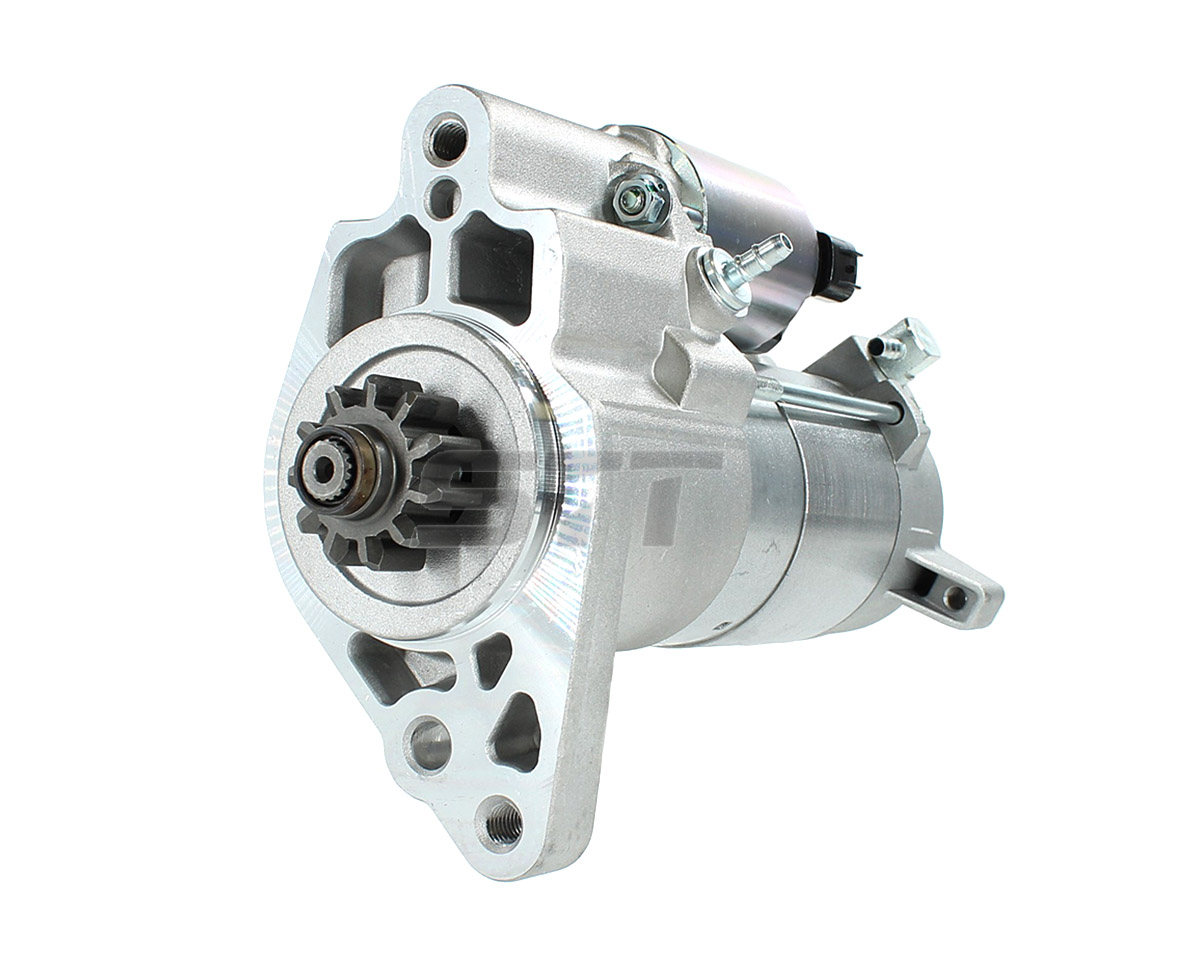

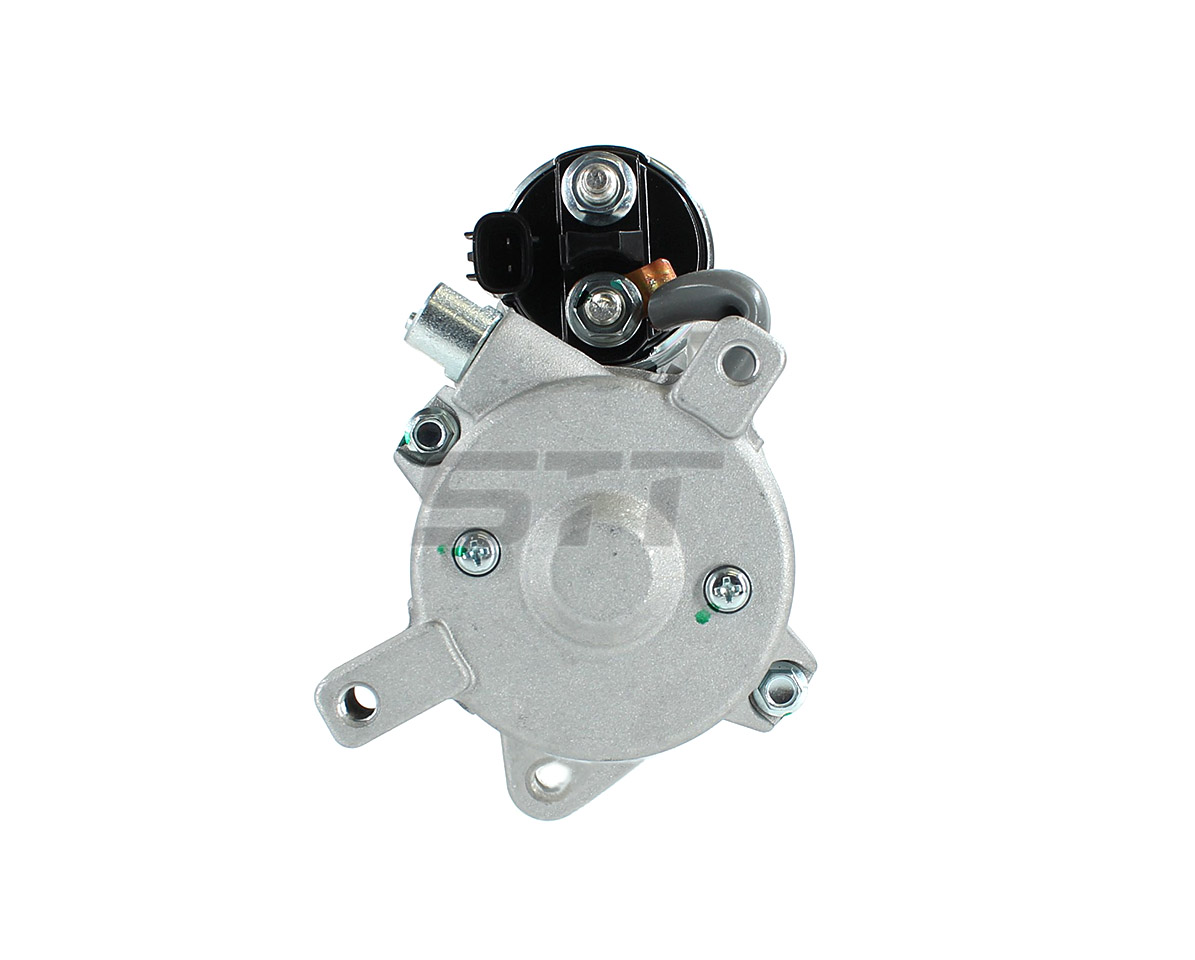

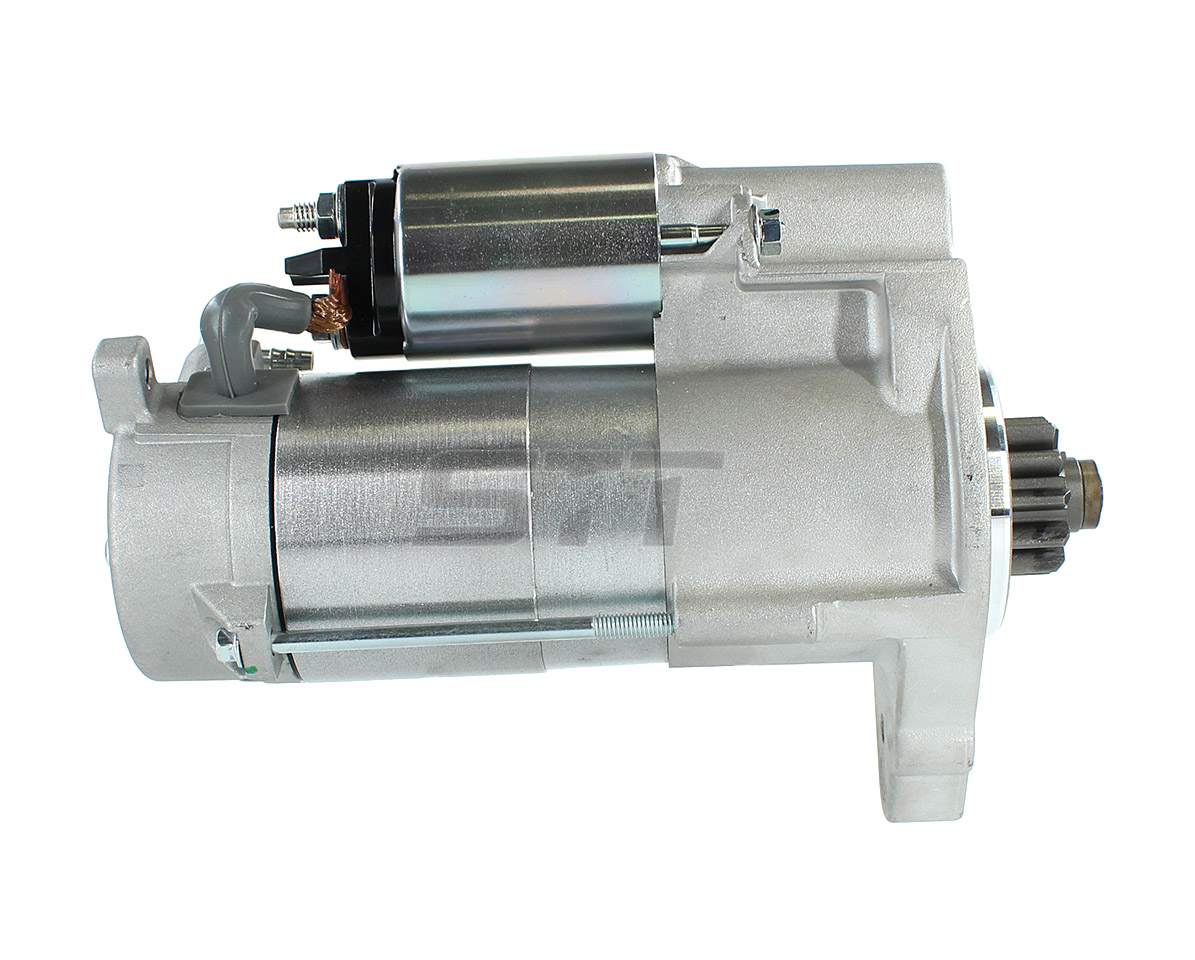

Starter for LAND ROVER Discovery, Range Rover 3.0 Diesel 2009-
101-1079
12V 2.0KW 11T CW
Specification
| Volt | 12V |
| Power | 2.0KW |
| Teeth | 11T |
| Rotation | CW |
OE NO
| DENSO | 428000-9580 |
Ref No
| DENSO | 428000-9581 |
| FORD | CPLA-11001-BD |
| LAND ROVER | LR034027 |
| LESTER | 30563 |
| LUCAS | LRS03994 |
Adapted models
| LAND ROVER | Discovery 3.0 D 4x4 [306DT] 2016- |
| LAND ROVER | Range Rover 3.0 SDV6 4x4 [306DT] 2012- |
Components
Mounting type
| Mount Hole Dia | M10, M10, 10.5mm |
| Flange Dia | 70mm |
| Mount Holes Cnt to Cnt | 146.5mm |
| Pinion Dia | 40.2mm |
| Out of Mesh Clearance | 25.2mm |
| Overall Length | 247mm |
| HSG Length | 212mm |
| Rest Position B | 169mm |
| S terminal size | |
| B+ terminal size | M8 |
| WEIGHT KG | 4.75Kg |
