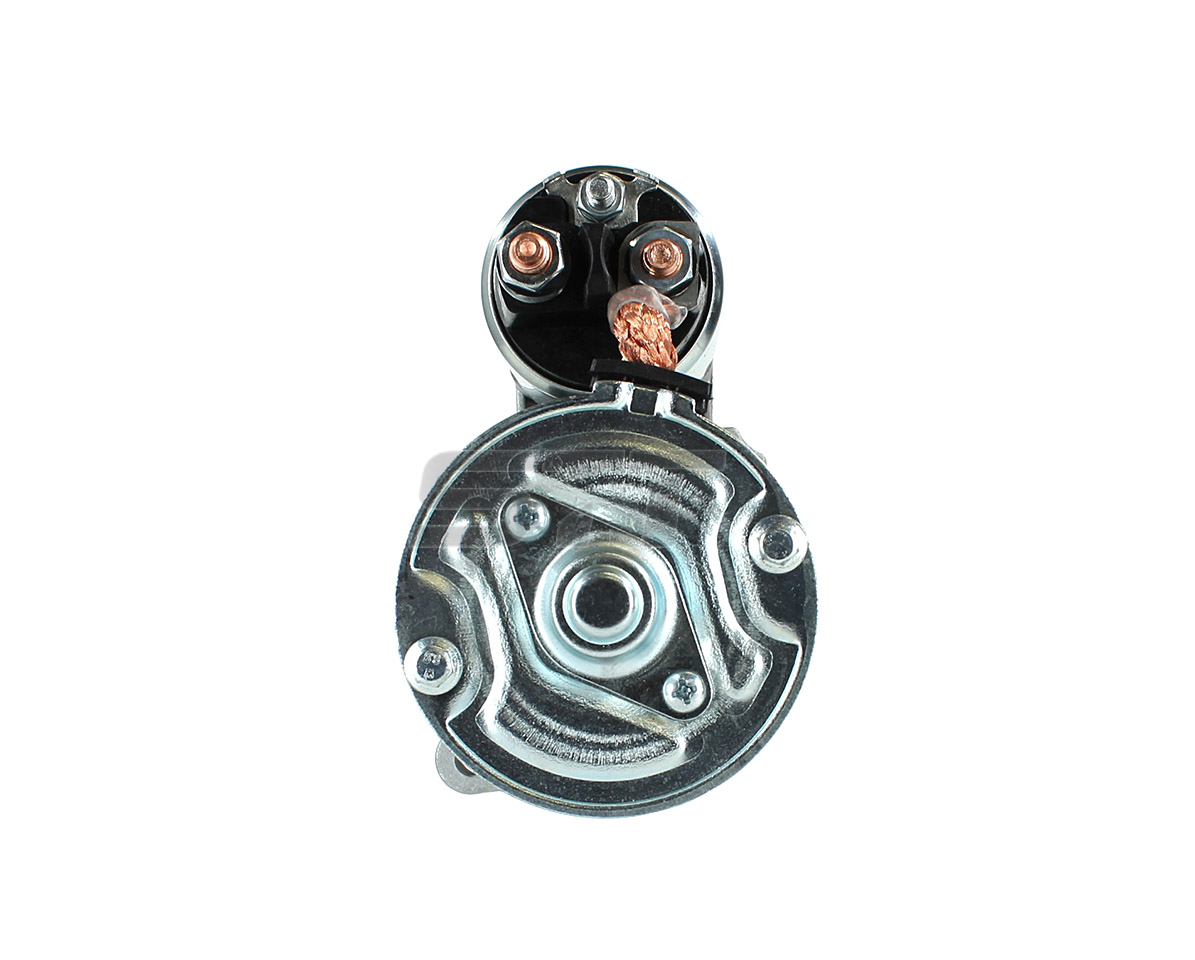

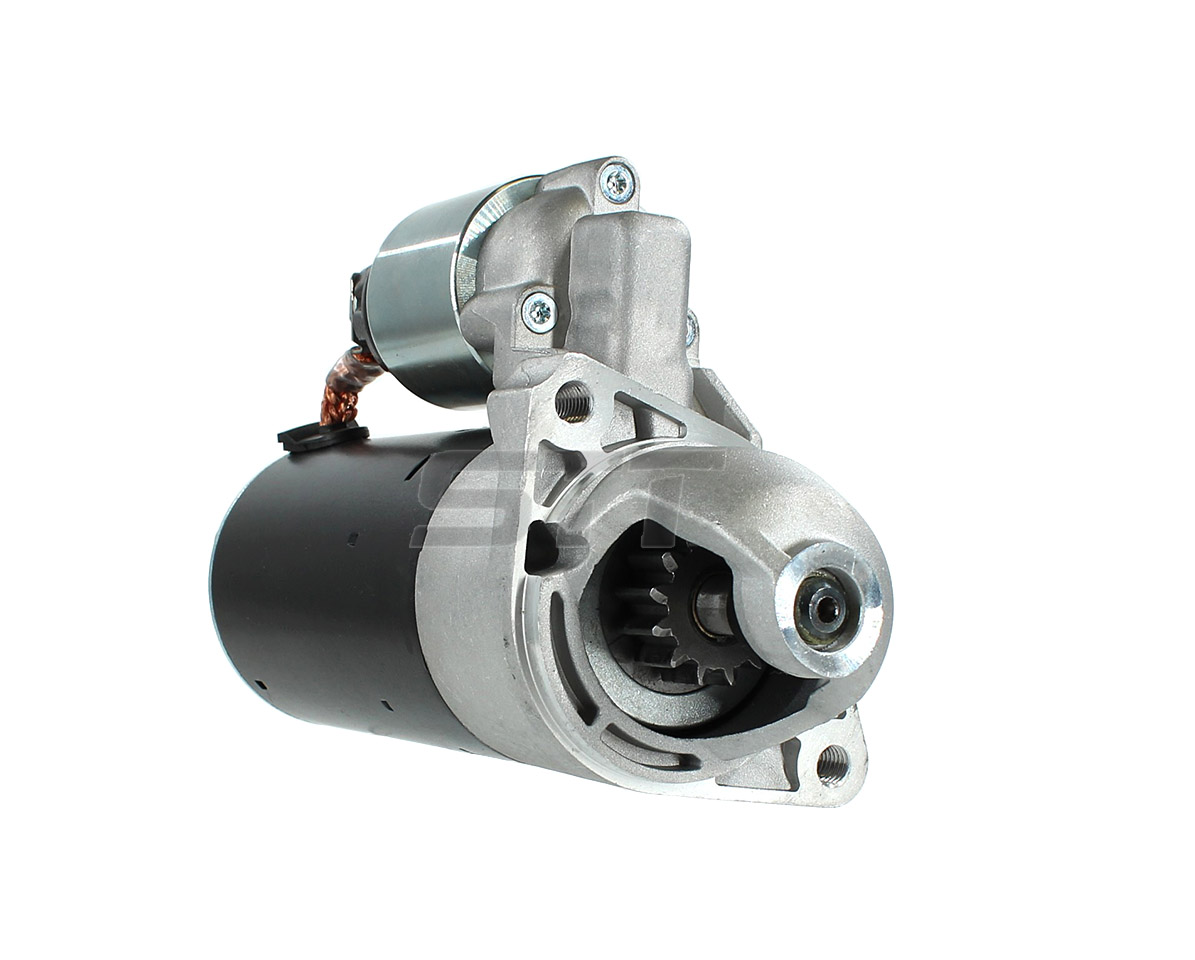

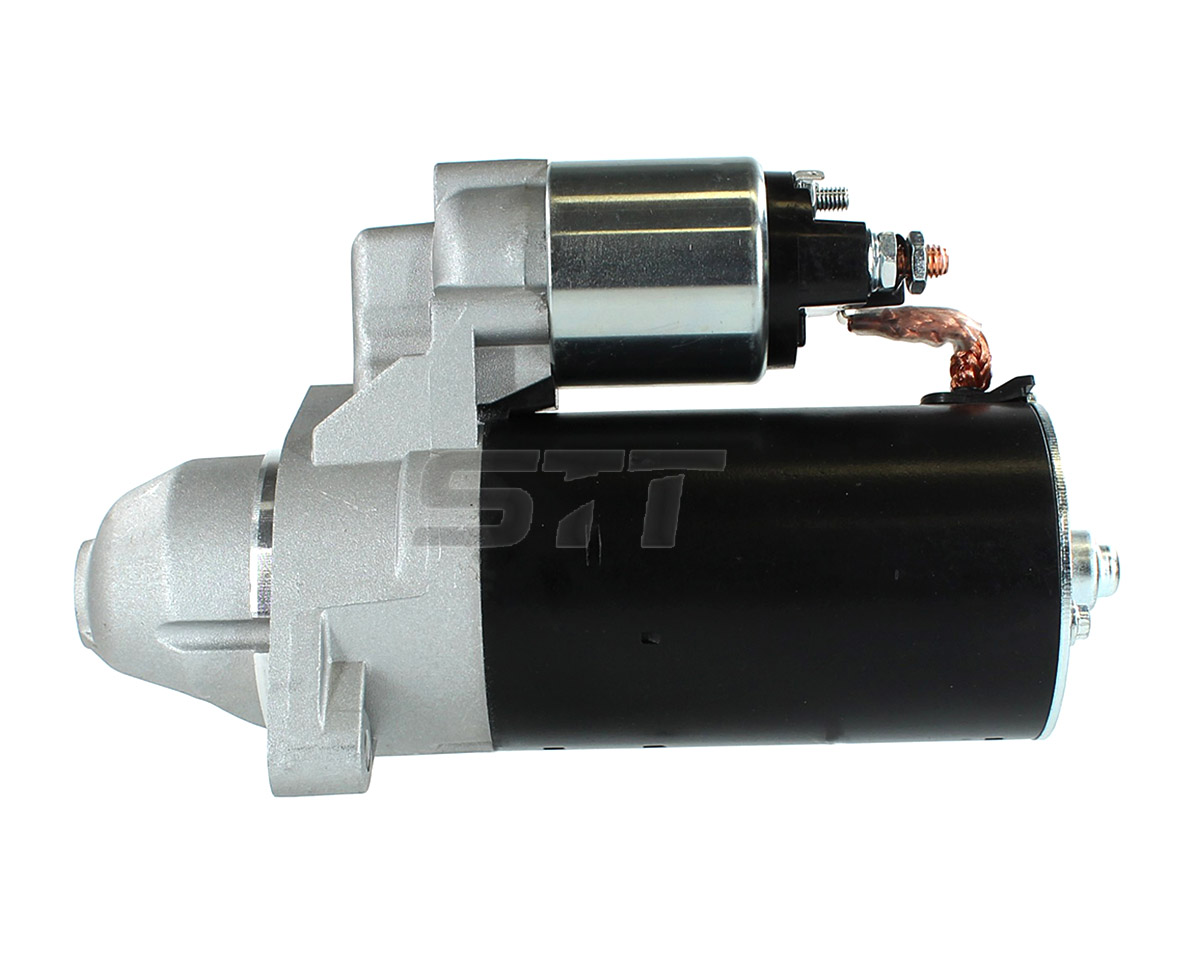

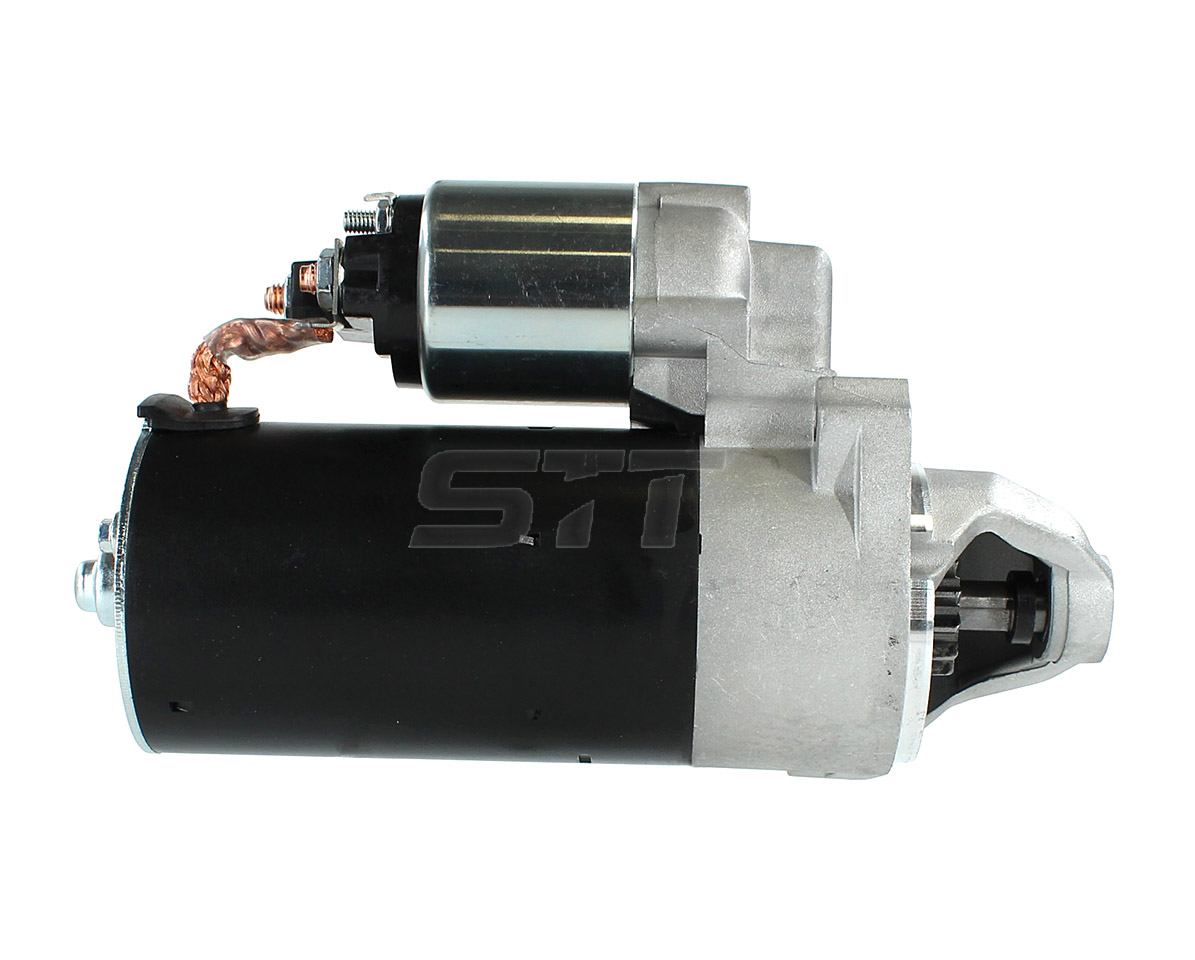

Starter for MERCEDES BENZ SPRINTER, Viano, Vito 2.2Diesel 2008-14
101-356
12V 2.5KW 13T CW
Specification
| Volt | 12V |
| Power | 2.5KW |
| Teeth | 13T |
| Rotation | CW |
OE NO
| BOSCH | 0001139408 |
Ref No
| BOSCH | 0001139409 |
| MERCEDES BENZ | A0009062302 |
| LUCAS | LRS02563 |
Adapted models
| MERCEDES BENZ | Vito 2.1 CDi 113 (W639)[OM651.940] 2010- |
| MERCEDES BENZ | Sprinter 2.1 CDi 4x4 3,5t (906)[OM651.956] 2011- |
Components
Mounting type
| Mount Hole Dia | M10,M10 |
| Flange Dia | 70mm |
| Mount Holes Cnt to Cnt | 100mm |
| Pinion Dia | 34mm |
| Out of Mesh Clearance | 14.5mm |
| Overall Length | 241mm |
| HSG Length | 189mm |
| Rest Position B | 149mm |
| S terminal size | |
| B+ terminal size | M8 |
| WEIGHT KG |
