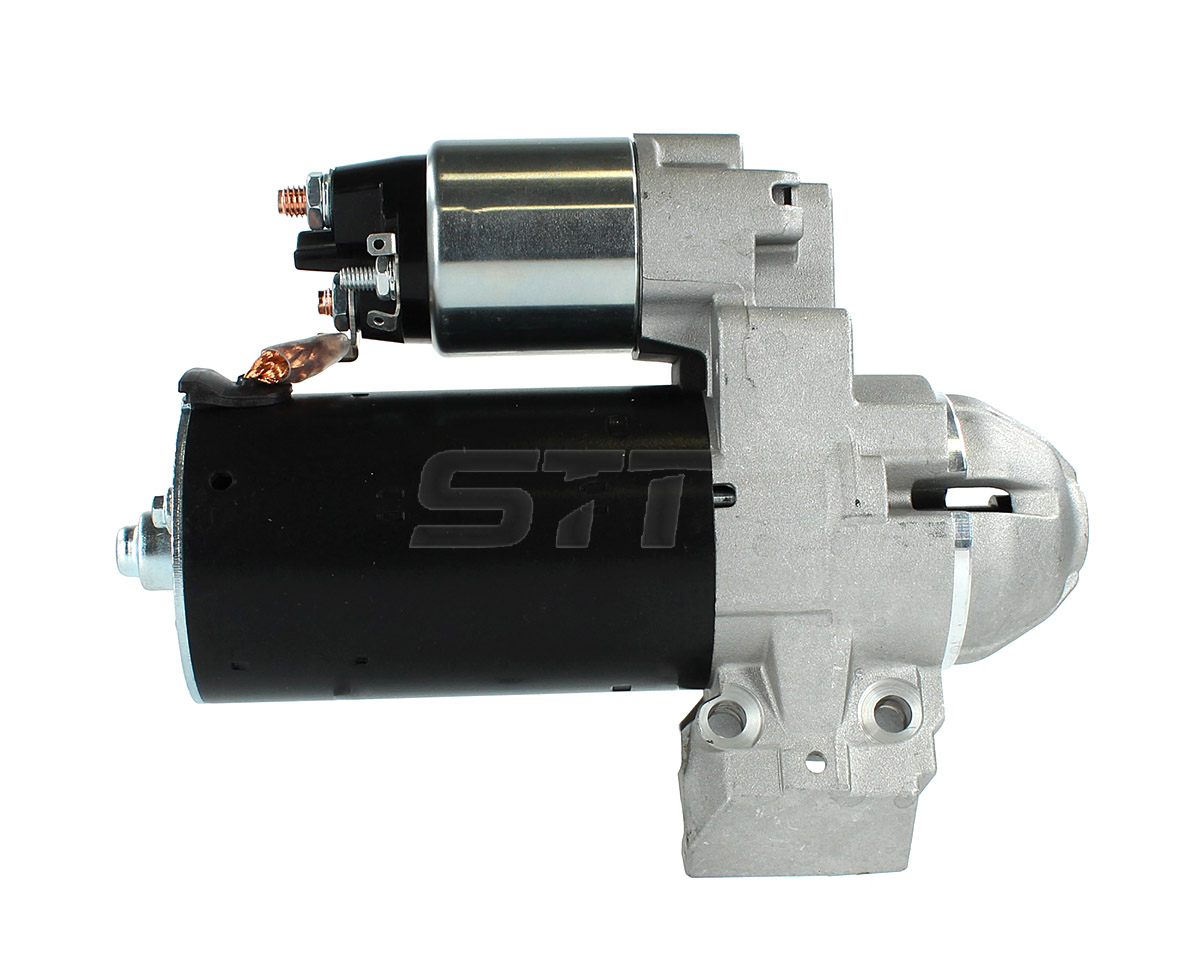

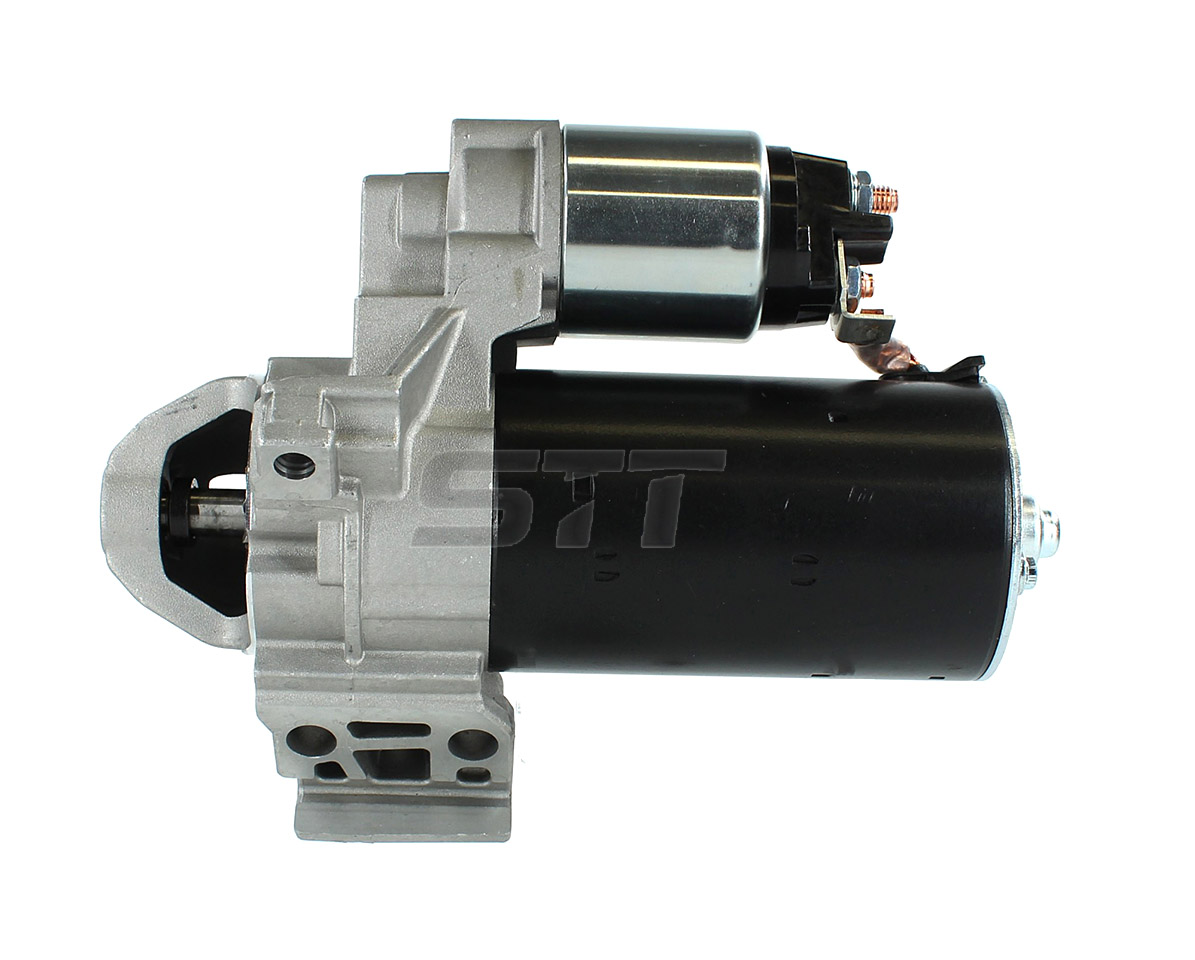

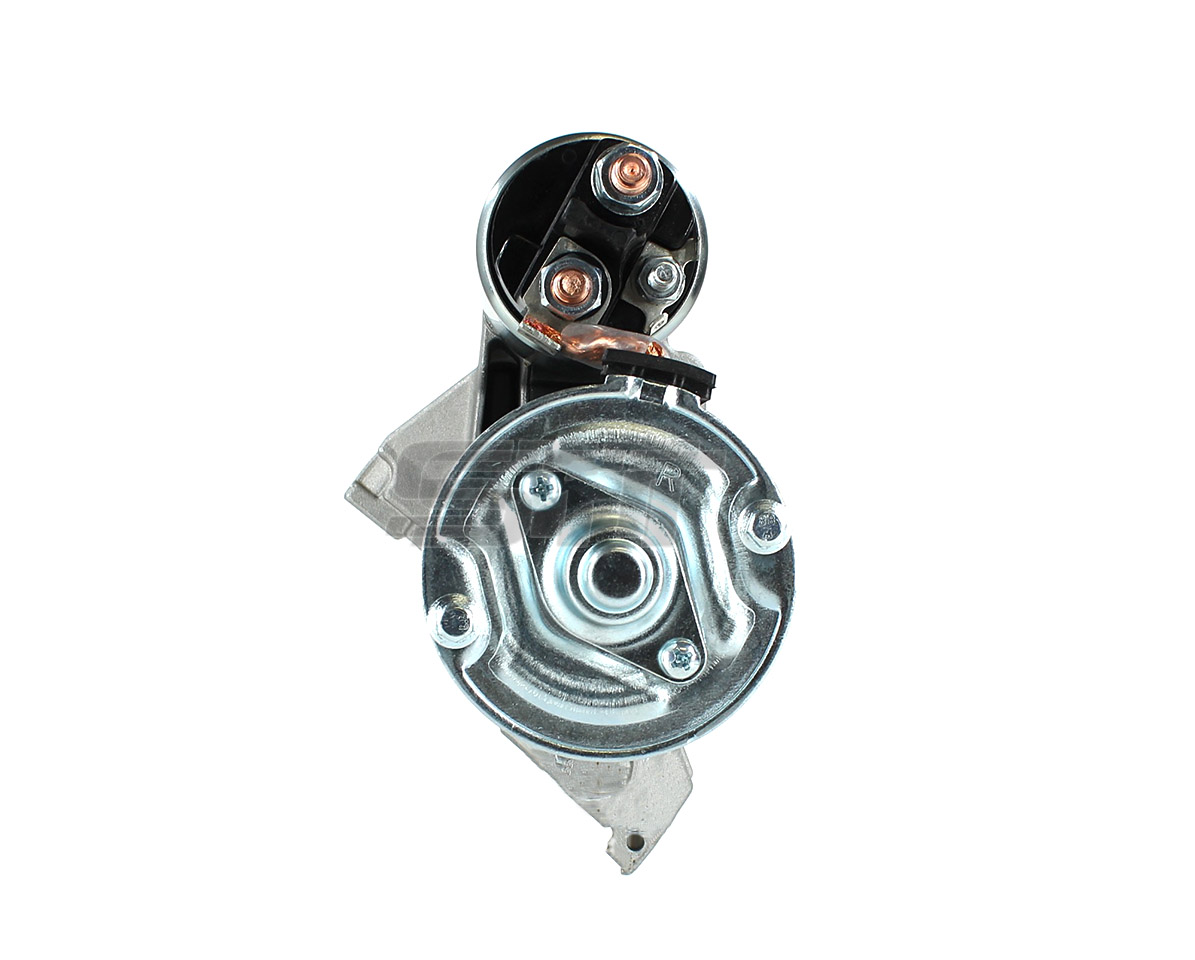

Starter for BMW 1 series,3 Series,5 Series 2.0/3.0Diesel 2007-16
101-339
12V 2.2KW 11T CW
Specification
| Volt | 12V |
| Power | 2.2KW |
| Teeth | 11T |
| Rotation | CW |
OE NO
| BOSCH | 0001148009 |
Ref No
| BOSCH | 0001148010 |
| BMW | 12418506657 |
| Lester | 30998 |
| LUCAS | LRS02492 |
Adapted models
| BMW | 120 2.0 D (E87)[N47D20A] 2007-2011 |
| BMW | 325 3.0 D (E90)[N57D30A] 2010-2011 |
| BMW | 520 2.0 D (F11)[N47D20C] 2010-2014 |
Components
Mounting type
| Mount Hole Dia | 9mm,9mm,9mm |
| Flange Dia | 69mm |
| Mount Holes Cnt to Cnt | 89*39mm |
| Pinion Dia | 34.5mm |
| Out of Mesh Clearance | 5mm |
| Overall Length | 234.5mm |
| HSG Length | 195mm |
| Rest Position B | 158mm |
| S terminal size | M6 |
| B+ terminal size | M8 |
| WEIGHT KG |
