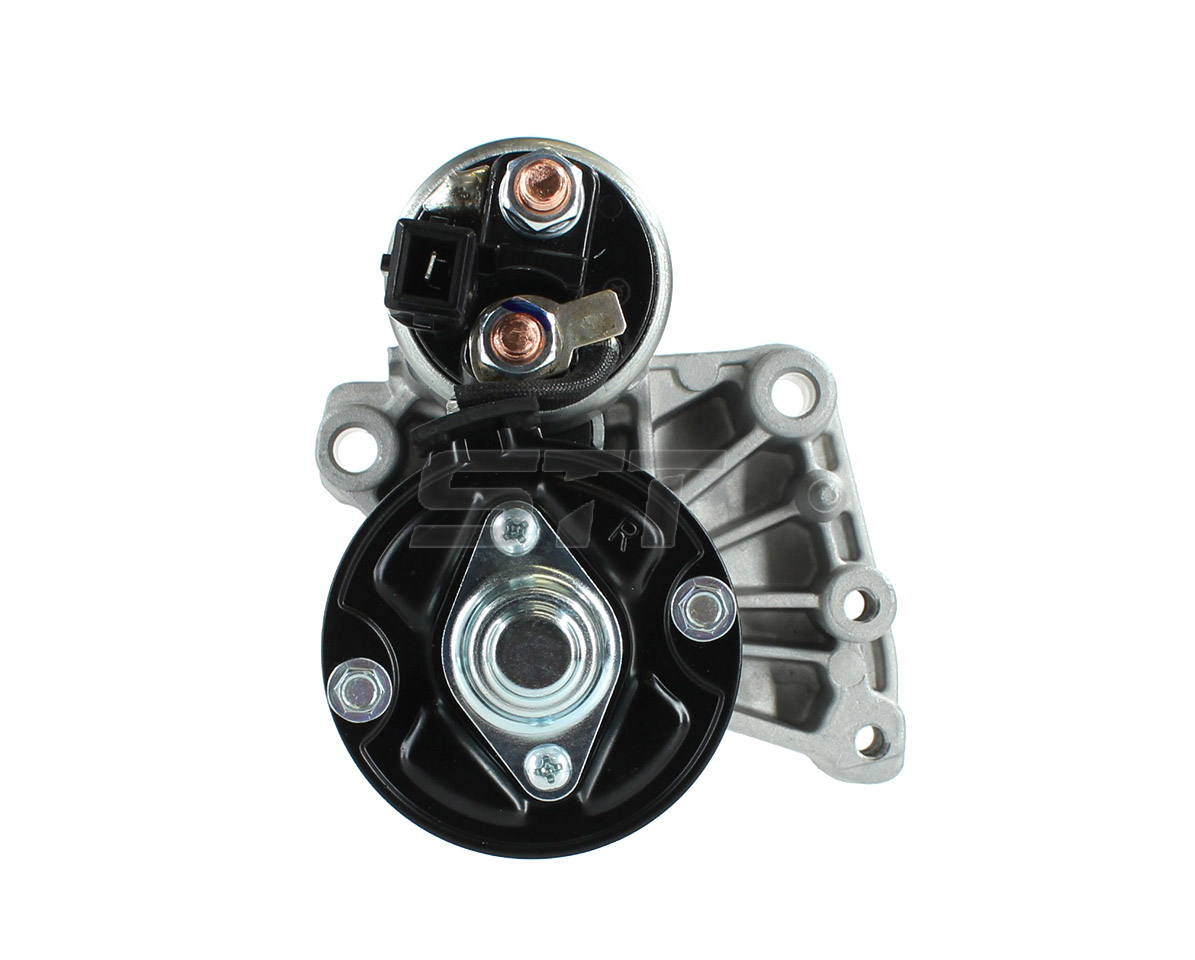

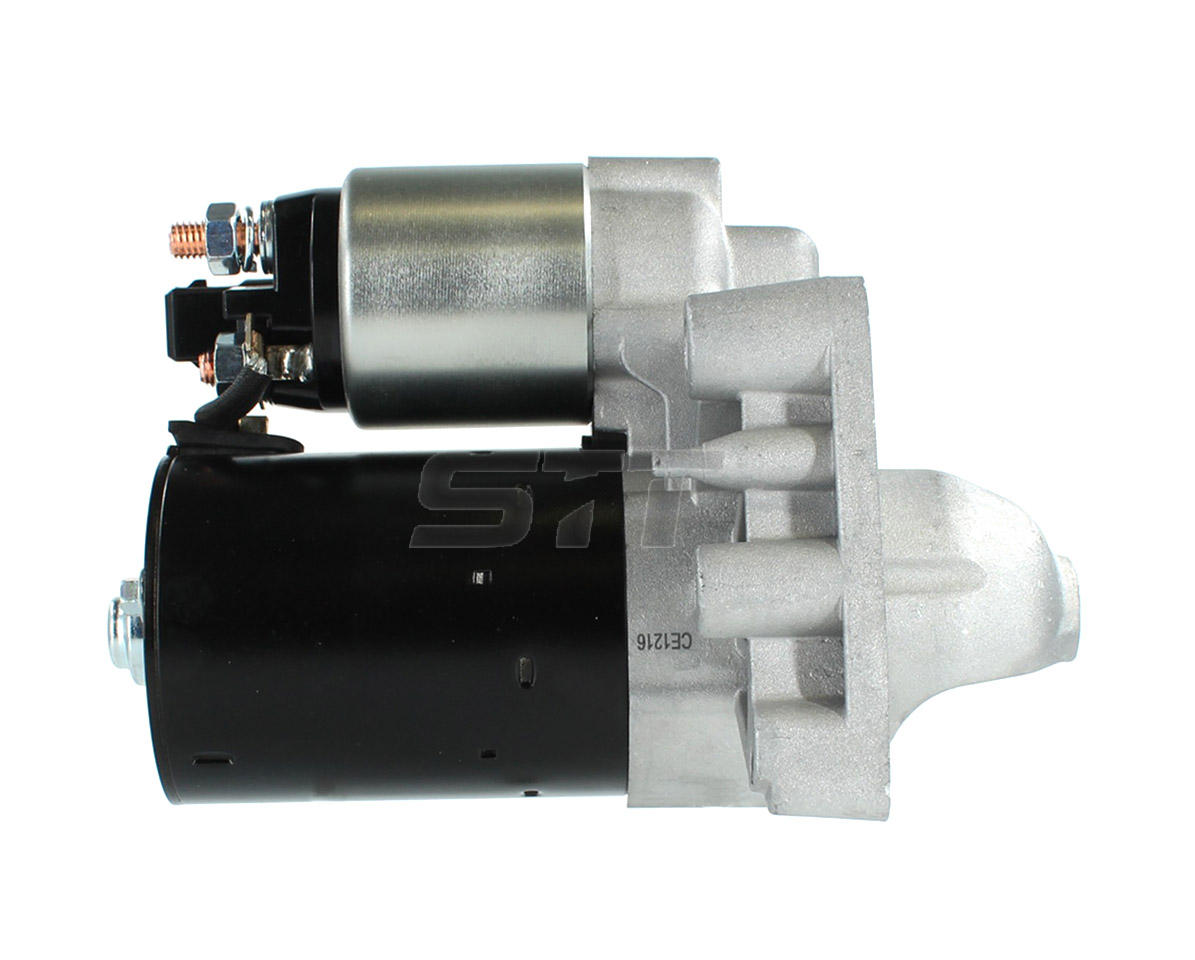

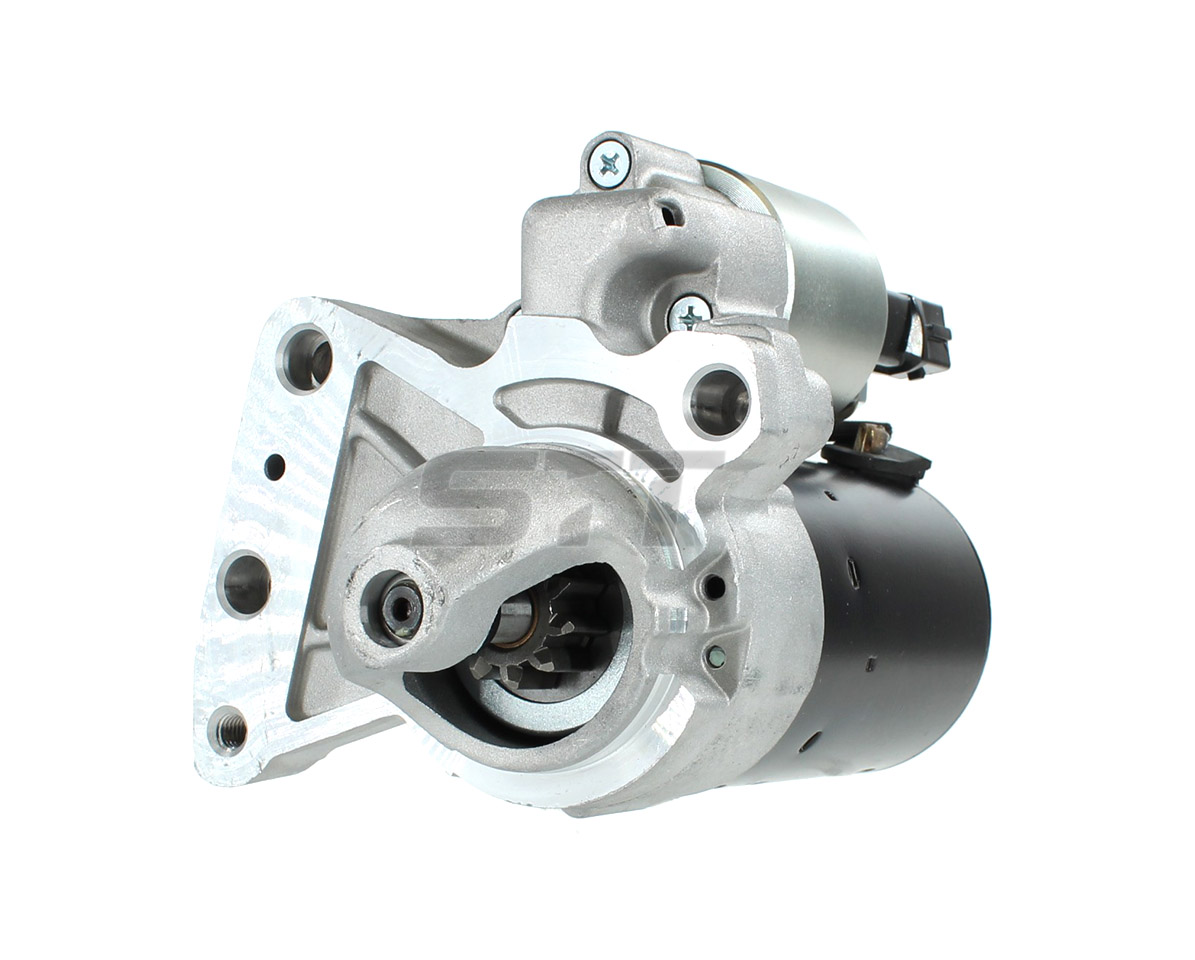

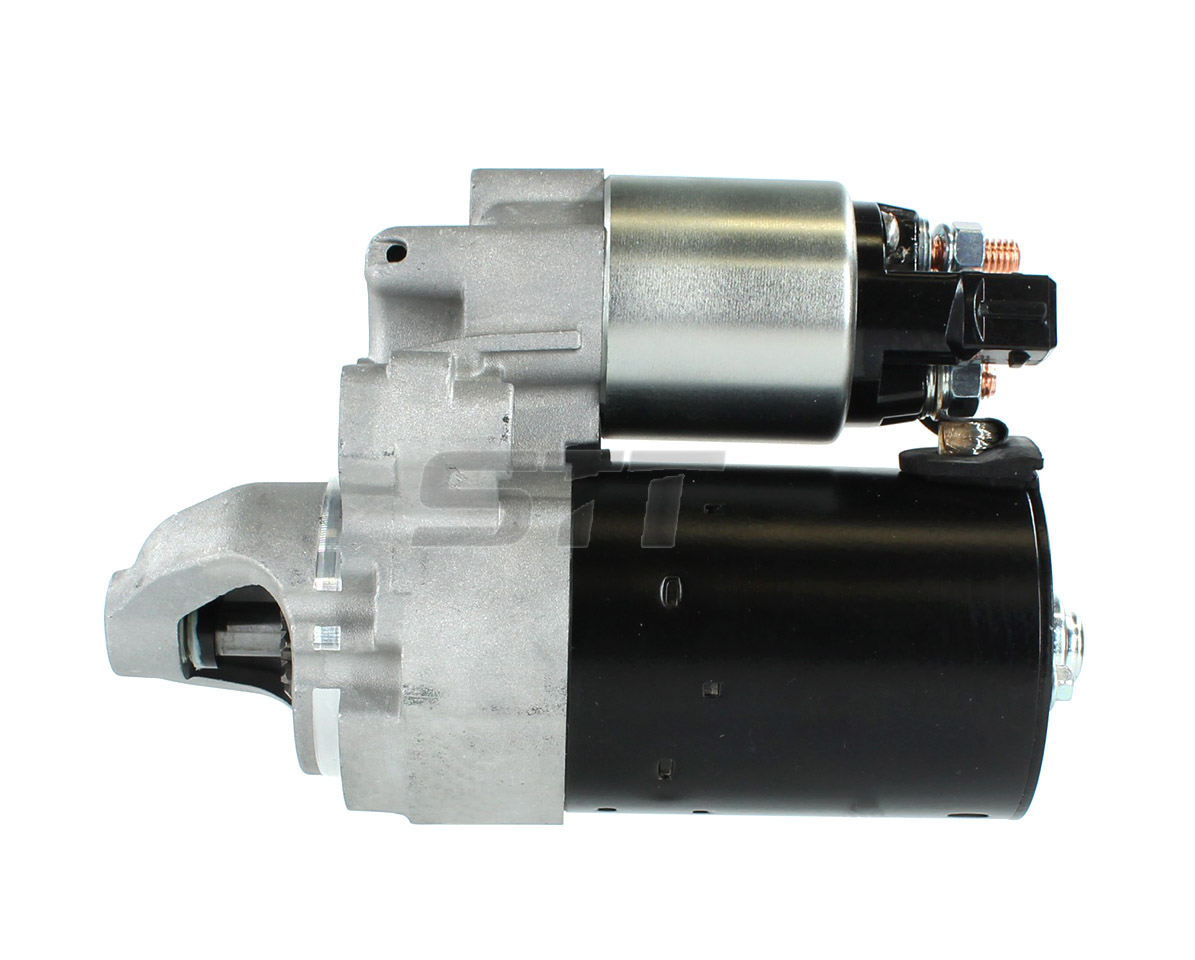

Specification
| Volt | 12V |
| Power | 0.9KW |
| Teeth | 10T |
| Rotation | CW |
OE NO
| BOSCH | 0001106405 |
Ref No
| BMW | 12417540897 |
| CITROEN | 5802AR |
| PEUGEOT | V7540897 |
| Lester | 19000 |
| LUCAS | LRS02279 |
Adapted models
| CITROEN | C3 1.2 THP 110 [HNZ(EB2DT)] 2014- |
| MINI | Cooper S 1.6 JCW (R56)[N14B16AB] 2006-2010 |
| PEUGEOT | 308 1.6 16V [5FX(EP6DT)] 2007-2014 |
Components
Mounting type
| Mount Hole Dia | 9mm,9mm,M8,M8 |
| Flange Dia | 60mm |
| Mount Holes Cnt to Cnt | 91.5mm |
| Pinion Dia | 28mm |
| Out of Mesh Clearance | 13.5mm |
| Overall Length | 193mm |
| HSG Length | 144mm |
| Rest Position B | 136mm |
| S terminal size | |
| B+ terminal size | M8 |
| WEIGHT KG |
