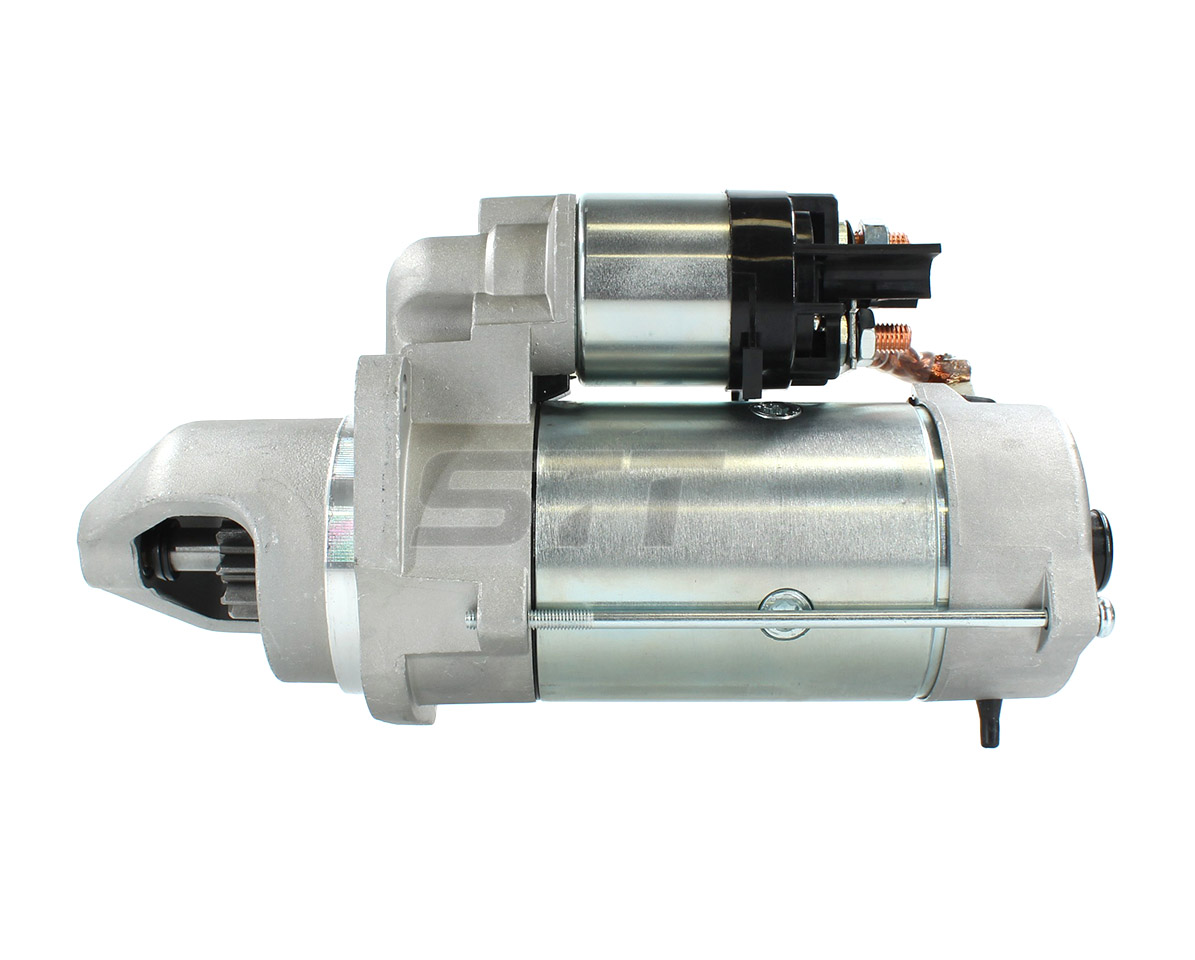

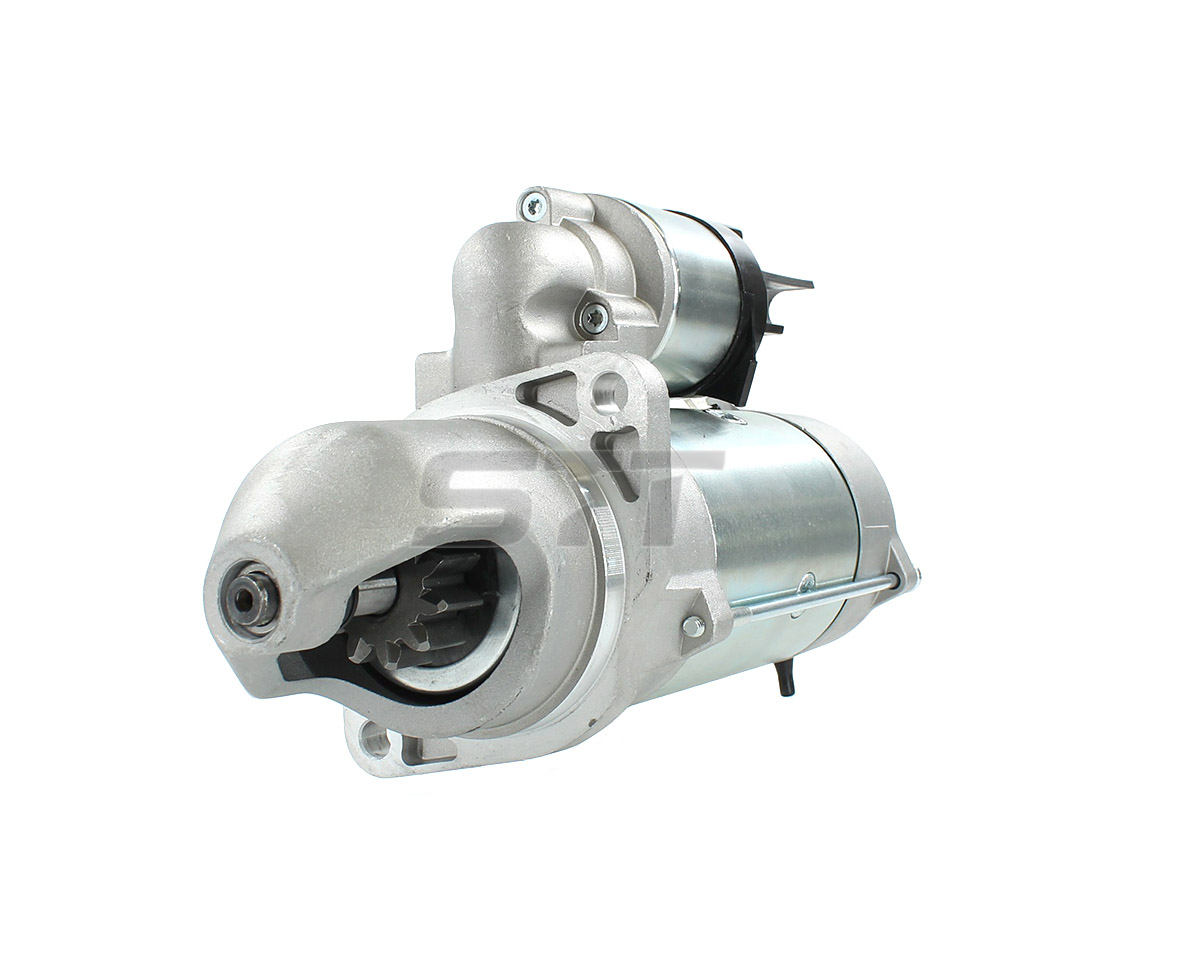

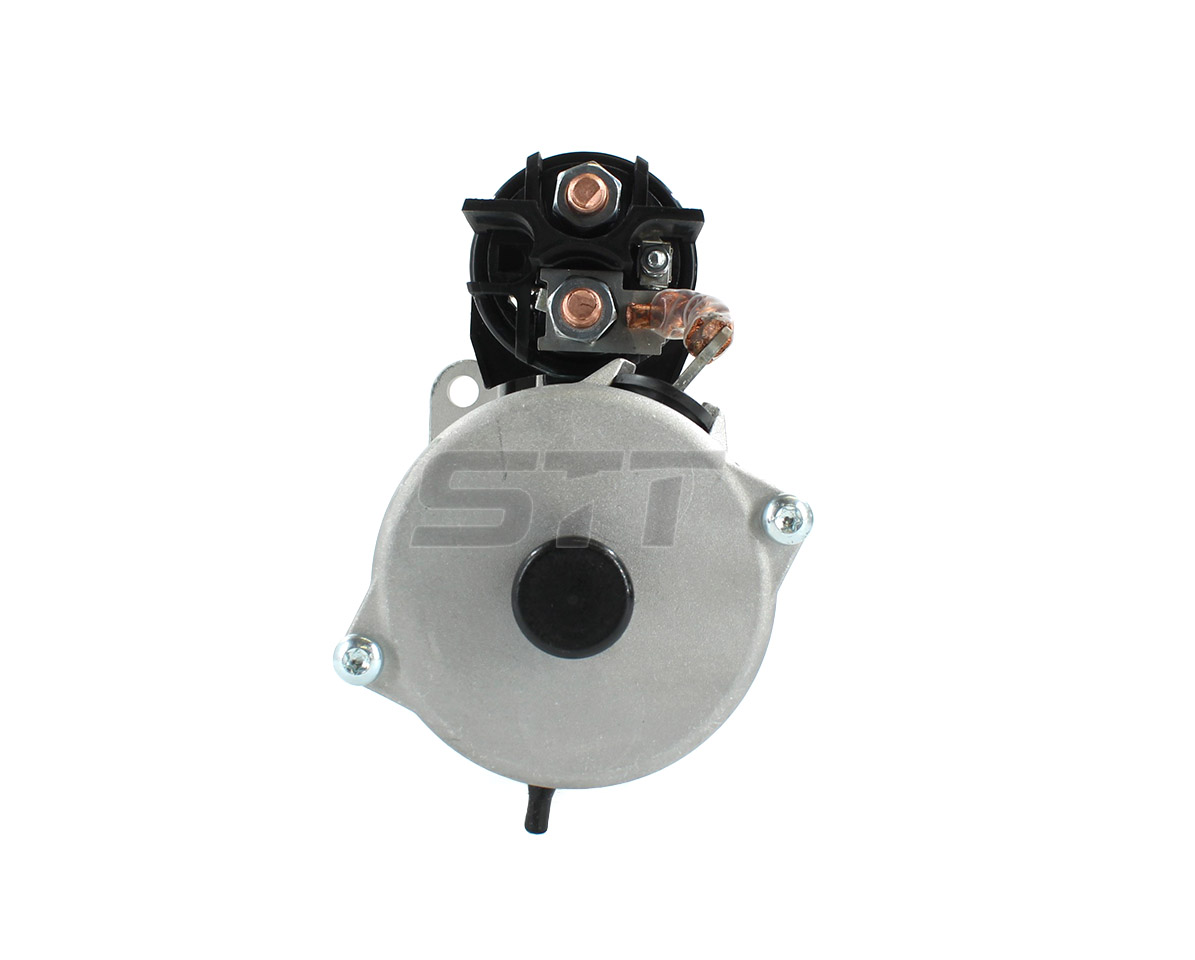

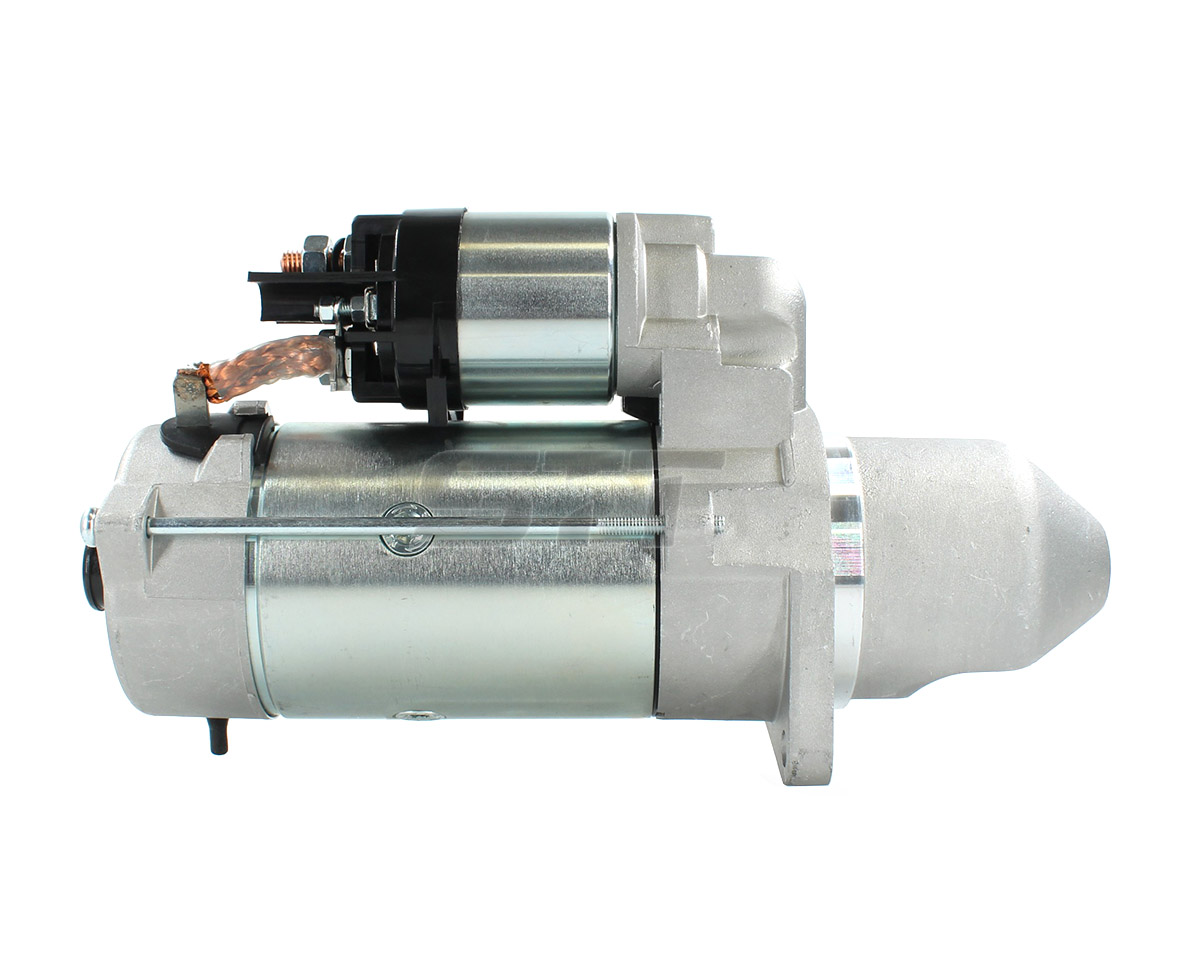

Starter for JOHN DEERE Series 6130, 6230, 7530 4.5/6.8 Diesel 2006-on
101-098
12V 4.0KW 11T CW
Specification
| Volt | 12V |
| Power | 4.0KW |
| Teeth | 11T |
| Rotation | CW |
OE NO
| BOSCH | 0001260001 |
Ref No
| JOHN DEERE | RE526375 |
| Lester | 19825 |
| LUCAS | LRS02538 |
Adapted models
| JOHN DEERE | 7530 6.8D [6068T] 2006- |
| JOHN DEERE | 6430 4.5D [4045T] 2007- |
Components
Mounting type
| Mount Hole Dia | 11mm,11mmm |
| Flange Dia | 89mm |
| Mount Holes Cnt to Cnt | 127mm |
| Pinion Dia | 43.5mm |
| Out of Mesh Clearance | 49mm |
| Overall Length | 325.5mm |
| HSG Length | 229mm |
| Rest Position B | 172mm |
| S terminal size | M5 |
| B+ terminal size | M10 |
| WEIGHT KG |
